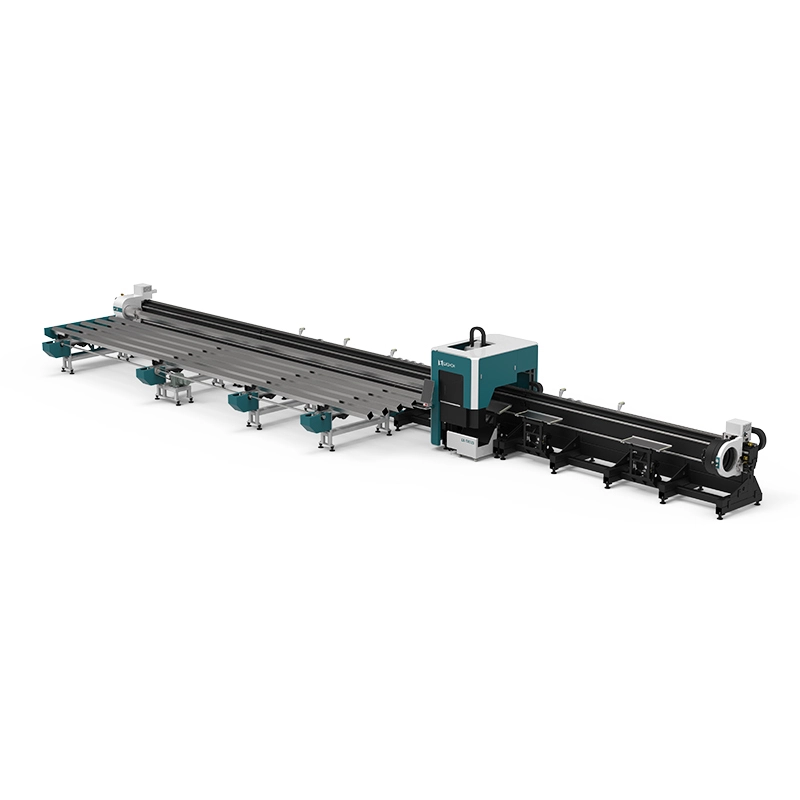

Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine

Model Number: LX123TX

Power:3000w-12000w

Lead time: 10-25 working days

Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C

Machine Weight: 16300KG

Brand: LXSHOW

Warranty: 3 years

Shipping: By sea/By land

    oops...!

    no product data.

    Go to homepage
    Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 7
    Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 8

    Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 9 PARAMETERS Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 10

    Model

    LX123TX  Fiber laser cutting machine

    Max Holding diamete

    20-350mm

    Laser Power

    3000W-12000W ( Optional)

    Laser Wave Length

    1064nm

    Maximum Idle Running Speed

    60m/min

    Maximum acceleration

    1.2G

    Position Accuracy

    ±0.03mm

    Repeat Positional Accuracy

    ±0.05mm

    Position Type

    red dot

    Working Voltage

    380V /50Hz

    Auxiliary Gas

    oxygen,nitrogen,air

    Working life of fiber module

    More than 100000 hours

    Work Environment

    0-45°C, Moisture 45-85%

    The Segmented Rectangle Laser Tube Welded Bed

    Good rigidity, high precision, no deformation during the life cycle;

    Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance

    Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 11

    Pneumatic Chunk Clamping Design

    It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

    Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 12

    Professional Clamp Design

    Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability

    Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 13

    Fractional Automatic Support Installation

    It employs intelligent tube support design, which can solve the deformation

    problems in the process of long tube cutting

    Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 14

    The Absolute Value Servo Motor

    System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation

    Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 15

    Intelligent Alarm System

    It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment

    Stroke intelligent protection

    • Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk

    Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 16

    Intelligent Autofocus

    lt will automatically in cutting process adjust the focus which can realize the best cutting effect of different thickness of metal

    Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 17

    Application Materials

    Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe, Gold Pipe, Silver Pipe, Titanium Pipe, Metal Tube, Metal Pipe, etc.

    Ultra Large Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine 18
    DENSE
    Our service team is trained to solve the customer's problem within 24 hours.
    7
    7
    6 (3)
    6 (3)
    5 (3)
    5 (3)
    4 (4)
    4 (4)
    3 (7)
    3 (7)
    2 (8)
    2 (8)
    1 (8)
    1 (8)

    Application Indusrties

    Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, etc.
