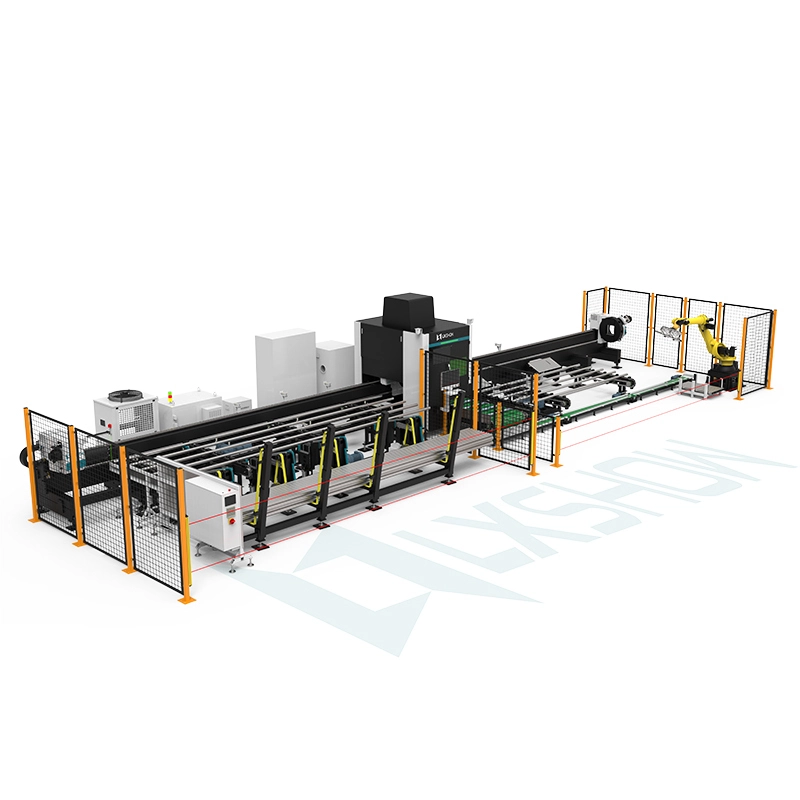

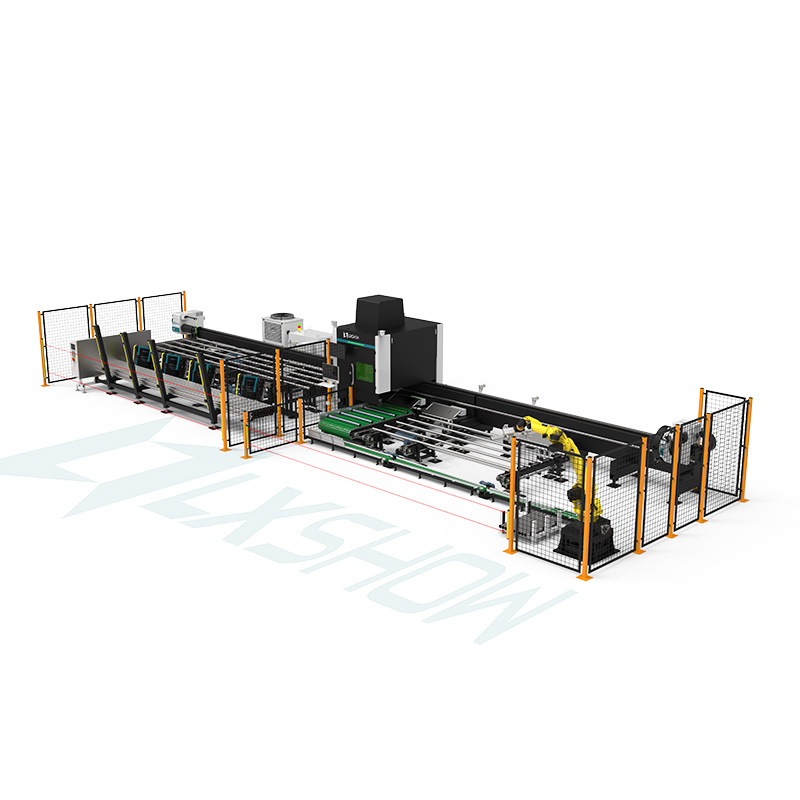

LX624TX High Power Fiber Multifunctional Metal Tube Laser Cutting Machines with Automatic Loading and Unloading
Model Number: LX624TX
Power:3000w-12000w
Lead time: 10-25 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Paypal;L/C
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land
PARAMETERS
|
Model |
LX624TX Fiber laser cutting machine |
|
Laser Power |
3000W-12000W ( Optional) |
|
Laser Wave Length |
1064nm |
|
Maximum Idle Running Speed |
60m/min |
|
Maximum acceleration |
1.2G |
|
Position Accuracy |
±0.03mm |
|
Repeat Positional Accuracy |
±0.05mm |
|
Position Type |
red dot |
|
Working Voltage |
380V /50Hz |
|
Auxiliary Gas |
oxygen,nitrogen,air |
|
Working life of fiber module |
More than 100000 hours |
|
Work Environment |
0-45°C, Moisture 45-85% |
The Segmented Rectangle Laser Tube Welded Bed
Good rigidity, high precision, no deformation during the life cycle;
Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance
Pneumatic Chunk Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)
Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation
problems in the process of long tube cutting
Intelligent Autofocus
lt will automatically in cutting process adjust the focus which can realize the best cutting effect of different thickness of metal
Application Materials
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe, Gold Pipe, Silver Pipe, Titanium Pipe, Metal Tube, Metal Pipe, etc.
Application Indusrties
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, etc.
Jinan Lingxiu Laser
Is established in July 2004 owns more than 500 square meters of researching and office space, more than 32000 square meters factory All machines, passed the European Union CE authentication American FDA cerificate and are certied to ISO 9001. Products are sold to USA, Canada, Australia, Europe. South east Asia, Afica etc, more than 120 counties and areas, and supply OEM service for more than 30 manufactures.
Our Products includes All kind of
1.Laser Cleaning machine
2.Laser marking/welding machine(Fiber/CO2/UV/Green light)/Fiber laser cutting machine
3.Vibrating knife cutting cnc machine
We can also customized non-standard assist equipment as your detailed work reauirements.
