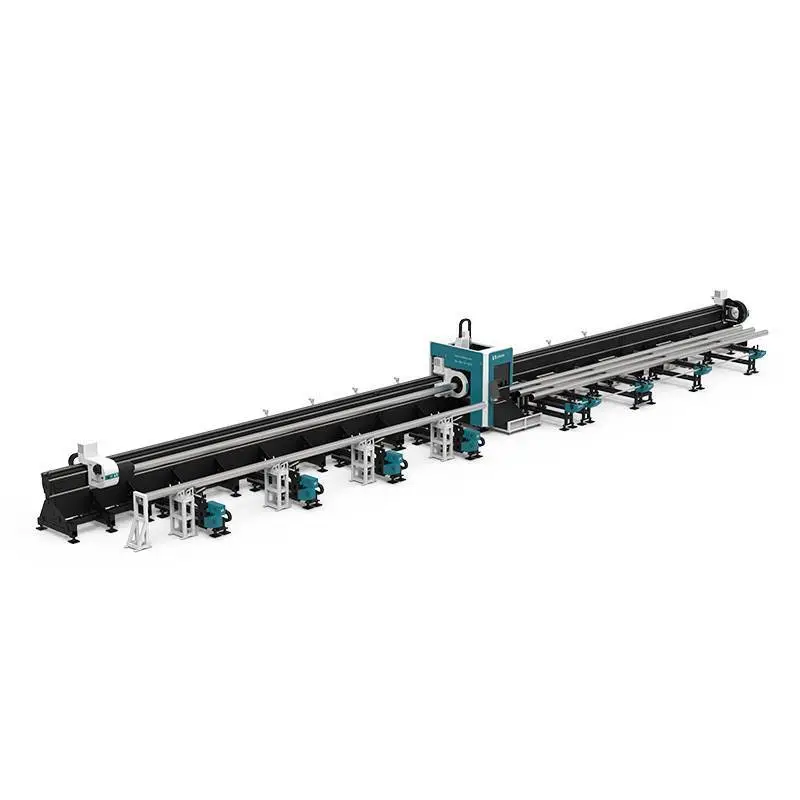

LX124TX Professional Fiber Laser Cutting Machine For Metal Pipe Steel Laser Cutting Machine
Model Number: LX124TX
Power:3000w-12000w
Lead time: 25-30 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C
Machine Weight: 16300KG
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land

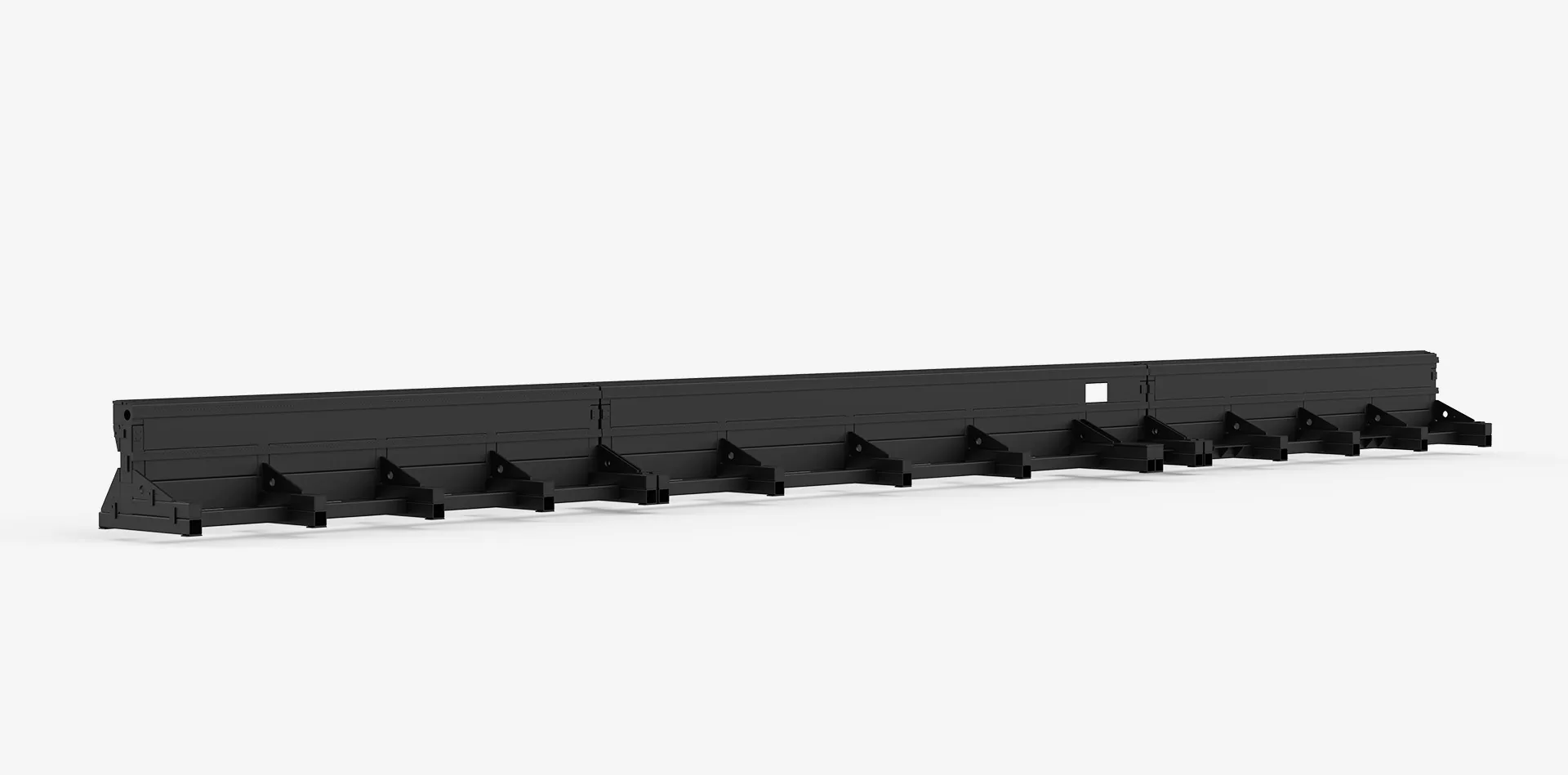

The Segmented Rectangle Laser Tube Welded Bed
Good rigidity, high precision, no deformation during the life cycle;
Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance
Pneumatic Chunk Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

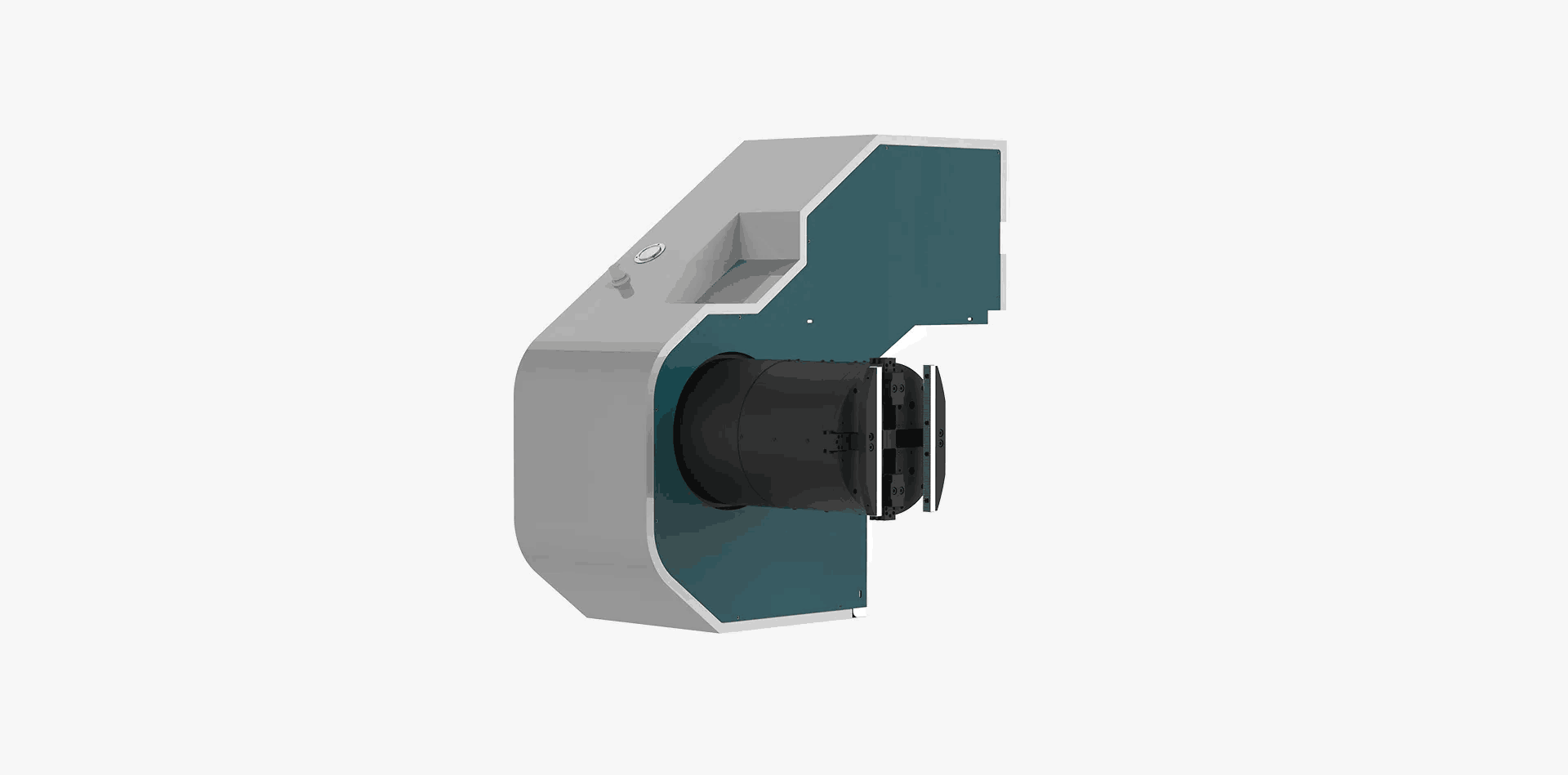

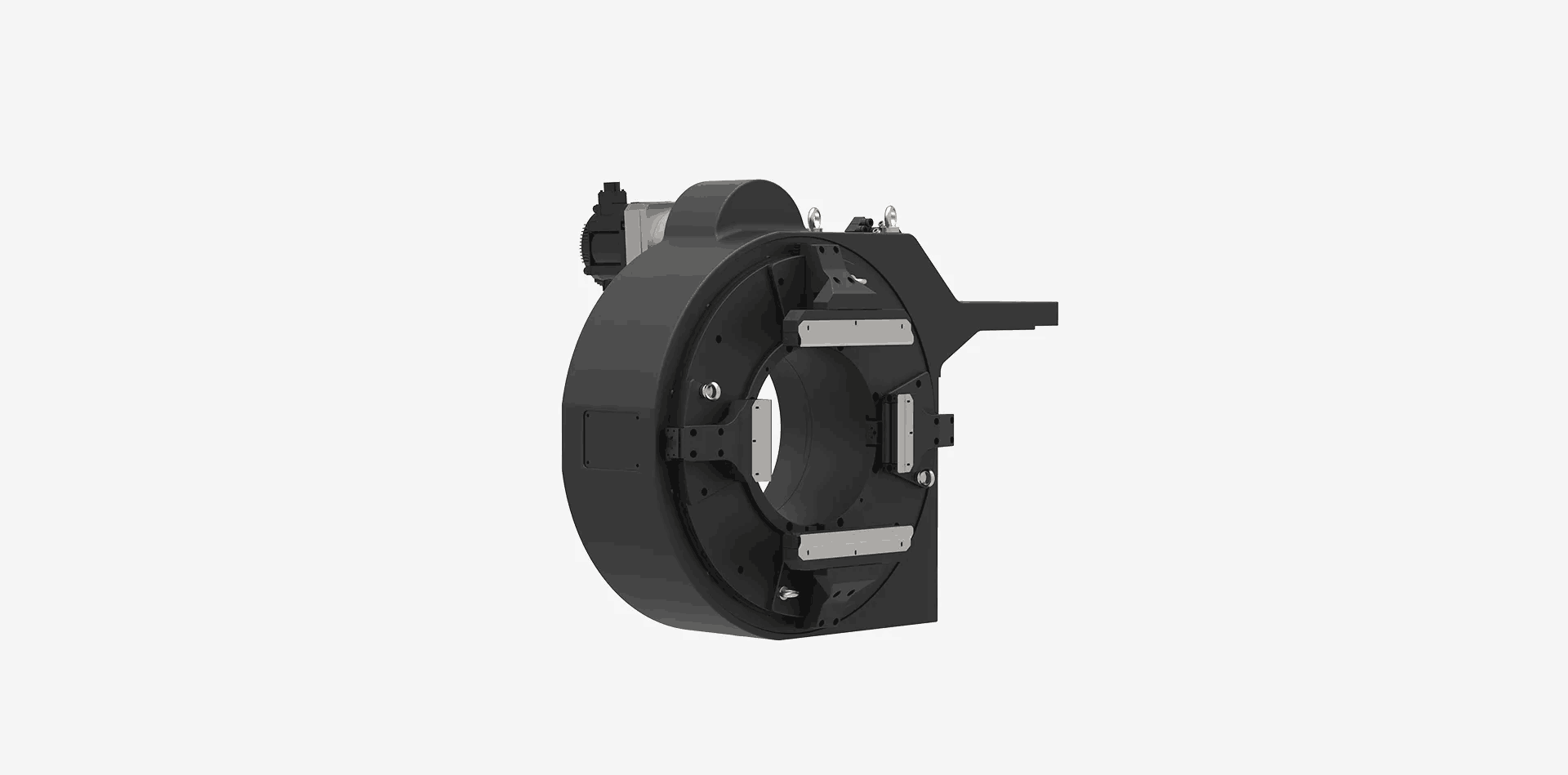

Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability

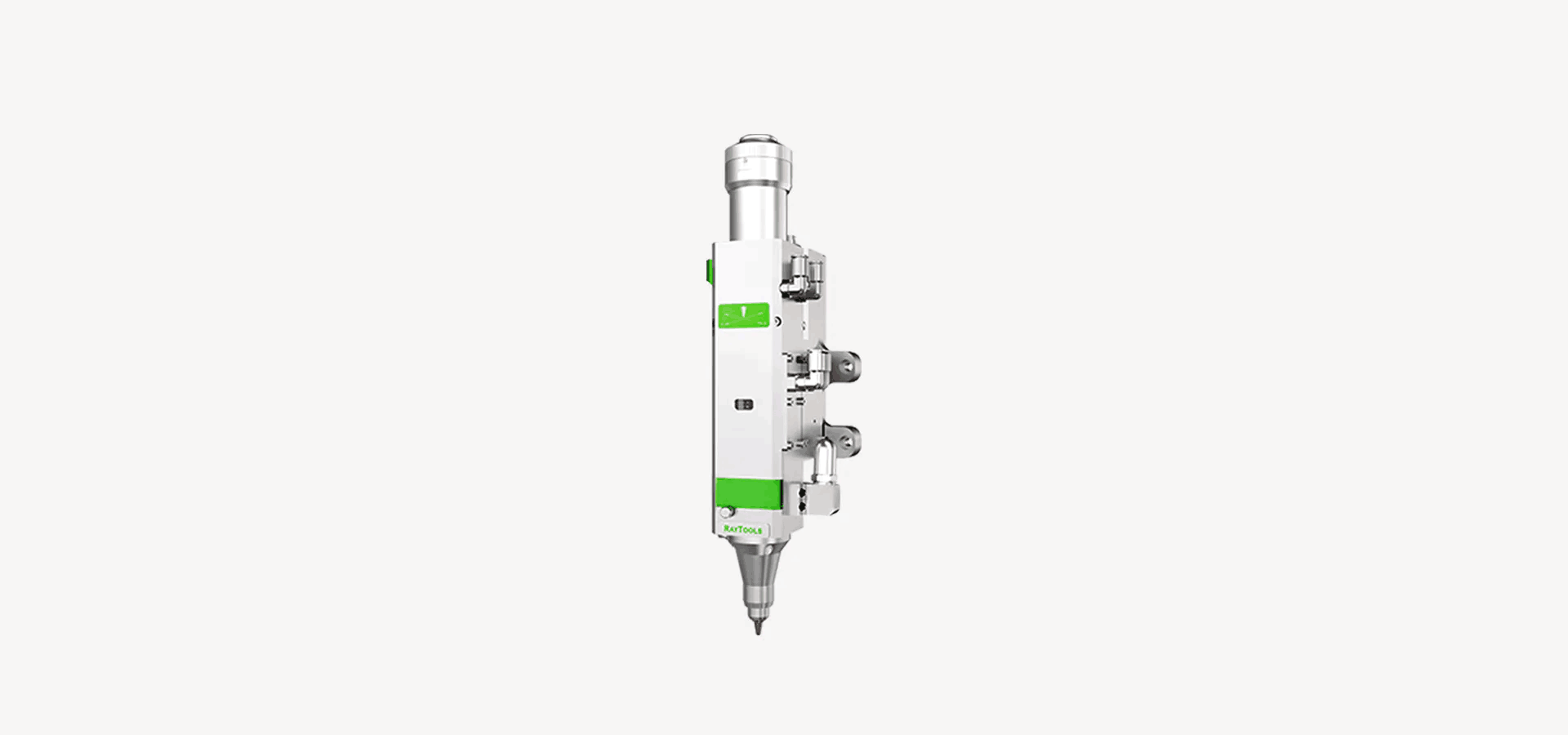

Intelligent Autofocus
lt will automatically in cutting process adjust the focus which can realize the best cutting effect of different thickness of metal

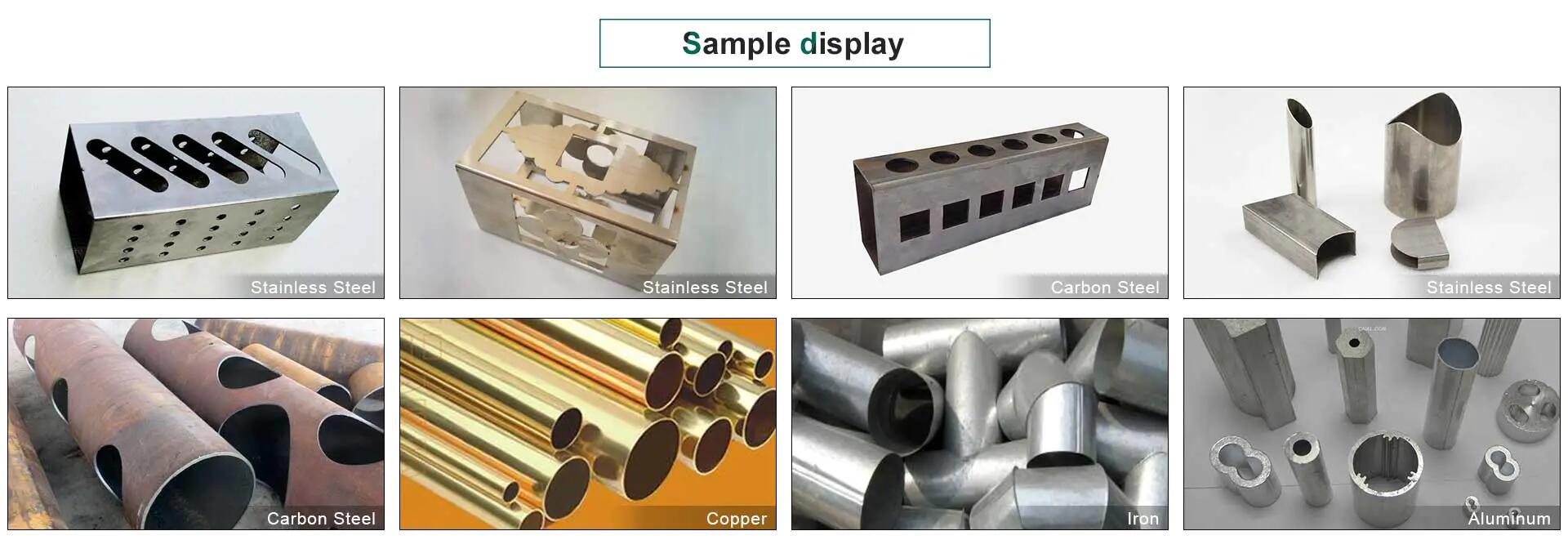

Application Materials:
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe, Gold Pipe, Silver Pipe, Titanium Pipe, Metal Tube, Metal Pipe, etc
Exhibition
Since the establishment of the company,Jinan Lingxiu Laser Equipment Co.,Ltd.has never stopped moving forward. Through unremitting efforts, it has expanded the laser equipment market to foreign countries. For several years, we have participated in exhibitions all over the world, including but not limited to Russia, South Korea, Vietnam and other countries.In 2024, LXSHOW will continue its efforts and participate in the UAE exhibition, South Korea exhibition, and is actively preparing for the Russian exhibition.
| Model | LX124TX |
| Power | 3000-12000W |
| Laser Wave Length | 1064nm |
| Max Holding diamete | 20-350mm |
| Maximum Idle Running Speed | 60m/min |
| Position Accuray | ±0.03mm |
| Pereat Positional Accuracy | ±0.05mm |
| Specified Voltage And Frequency | 380V 50HZ |
| Maximum Acceleration | 1.2G |
| Auxiliary Gas | oxygen,nitrogen,air |
| Work Environment | 0-45°C,Moisture 45-85% |
| Machine Warranty | 3 years |
