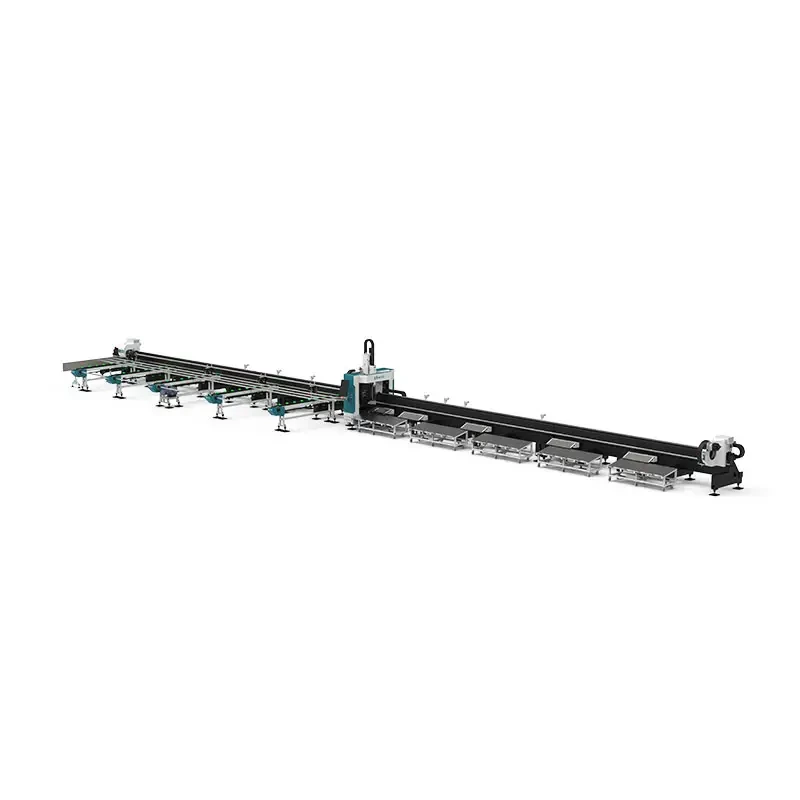

Automatic Feeding LX122TXA Series Laser Tube Cutting Machine for Metal Square Round Pipe
Model Number: LX122TXA
Power:3KW-12KW（Optional）
Lead time:25-40 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Paypal;L/C
Brand: LXSHOW
Warranty:3 years
Shipping: By sea/By land
The Segmented Rectangle Laser Tube Welded Bed
Good rigidity, high precision, no deformation during the life cycle;
Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance
Pneumatic Chunk Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350,Φ20-Φ500 is optional)
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation
problems in the process of long tube cutting
Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability
| Model | LX 122TXA Fiber Laser Tube Cutting Machine |
| Max Holding Diameter | 20-220mm |
| Laser Power | 3KW-12KW |
| Laser Wave Length | 1064nm |
| Maximum Idle Running Speed | 60m/min |
| Maximum Acceleration | 1.2G |
| Position Accuracy | ±0.03mm |
| Repeat Positional Accuracy | ±0.05mm |
| Working Voltage | 380V /50Hz |
| Auxiliary Gas | oxygen,nitrogen,air |
| Working Life of Fiber Module | More than 100000 hours |
| Working Environment | 0-45℃，Moisture 45-85% |
Application Materials
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe, Titanium Pipe, Metal Tube, Metal Pipe, etc.
Application Industries
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
