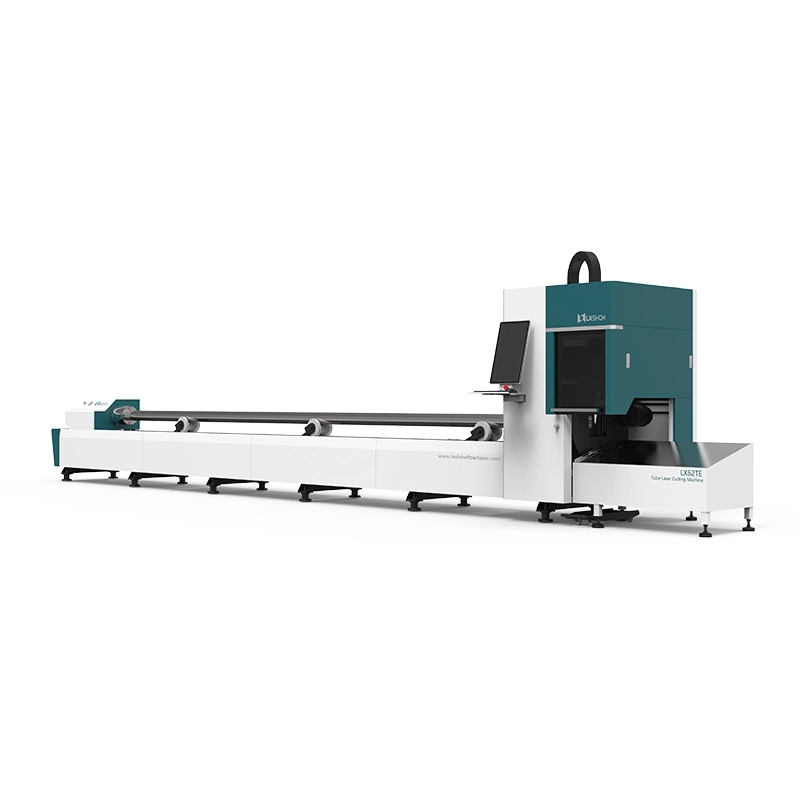

Professinal pipe and tube fiber laser cutting machine 1kw 1.5kw 2kw 3kw 4kw 6kw 8kw for sale with diameter 160mm 220mm1

The Segmented Rectangle Laser Tube Welded Bed

Good rigidity, high precision, no deformation during the life cycle;

Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance.

Professional Clamp Design

It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm.300mm diameter chunk can be customized.

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

Multiple Protection    Safety First

Every Detail Will Let You Have More Safety Production Environment

The Absolute Value Servo Motor

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation.

Intelligent Autofocus

The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.


Chase the light aperture:

Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:

Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.

25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
