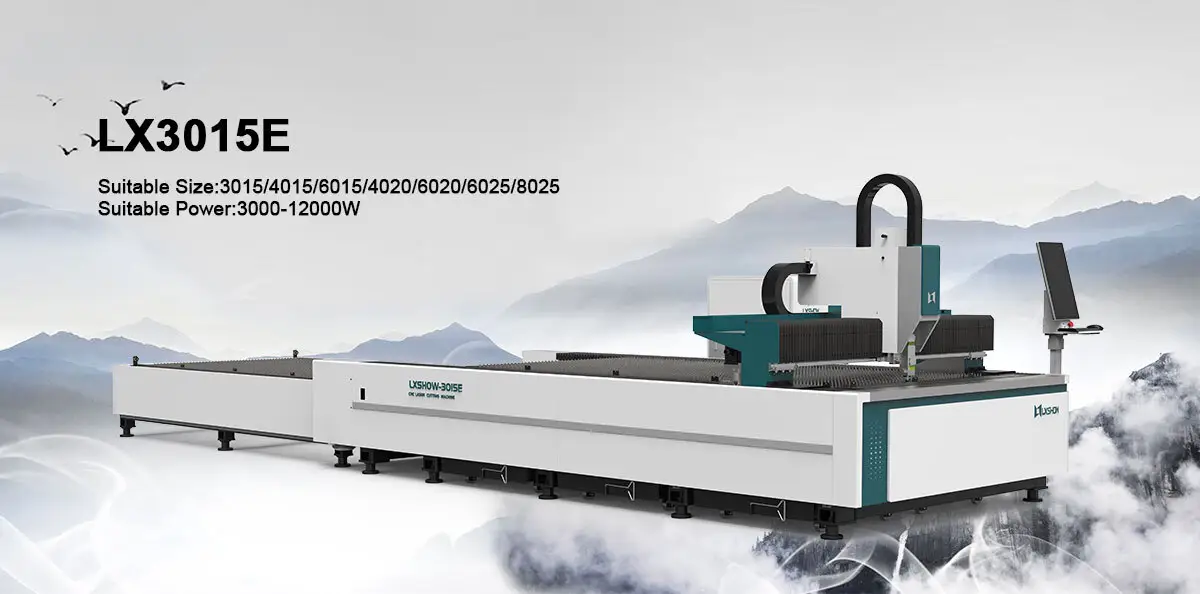

Lxshow efficient laser cutter for metal directly sale for medical equipment

Warranty:
3 years
Shipping:
By sea/By land
Payment Term:
T/T;Alibaba trade assurance;West Union;Payple;L/C.
Model Number:
LX3015E(4015/6015/4020/6020/6025/8025/12025 optional)
Machine Weight:
7000KG
Machine Size:
3890*8027*1989mm
Lead time:
15-30 working days
Brand:
LXSHOW
Inquiry

product-Lxshow-img


Machine Model

LX3015E(4015/6015/4020/6020/6025/8025/12025 optional)

Power of Generator

1000-20000W

Dimension

3890*8027*1989mm

Working Area

1500*3000mm(Other size can be customized)

Repeated Positioning Accuracy

±0.02mm

Max Running Speed

120m/min

Max Acceleration

1.5G

Specified Voltage And Frequency

380V 50/60HZ

product-LX3015E Metal iron sheet laser cutter beam light cutting design signs art artwork machine pr

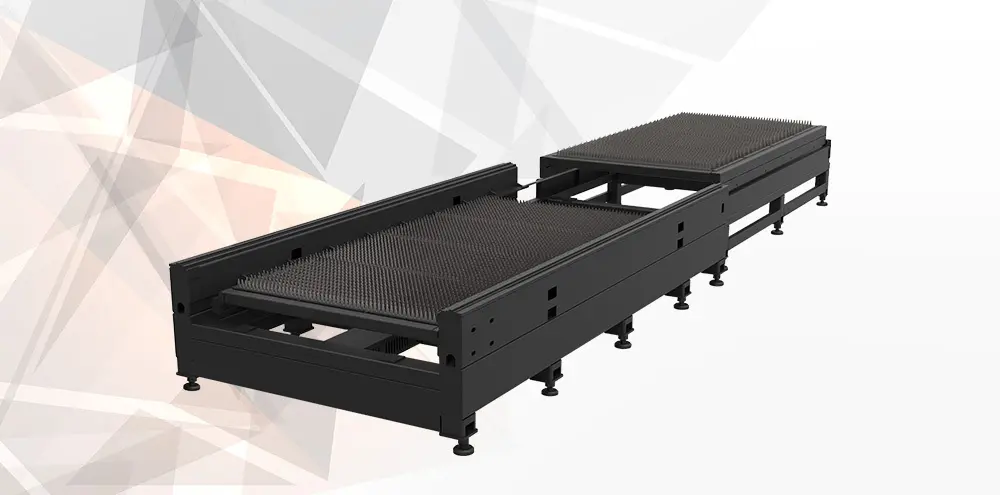

Exchange Table

It adopts an up and down exchange platform;

The converter is responsible for controlling the exchanging motor;

The machine is able to finish the platform exchanging within 15s.

product-Lxshow-LX3015E Metal iron sheet laser cutter beam light cutting design signs art artwork mac

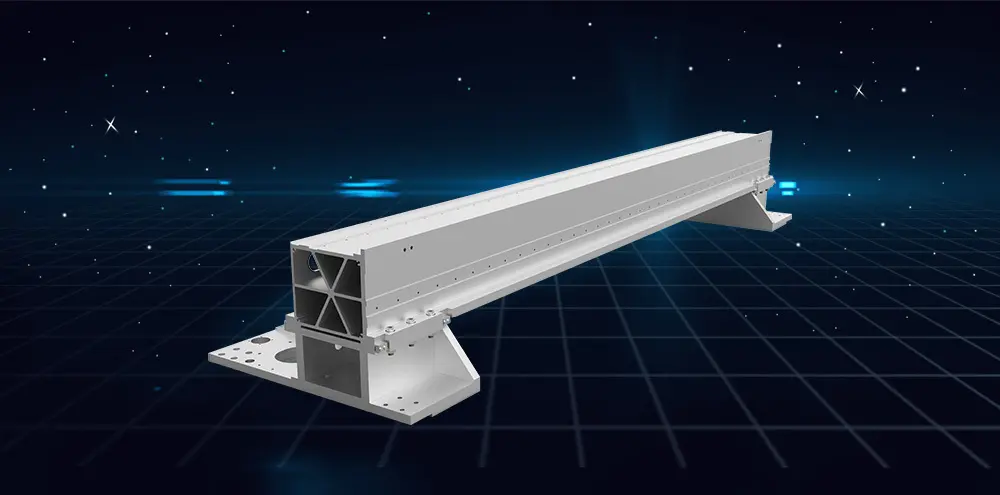

Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

product-Lxshow-img

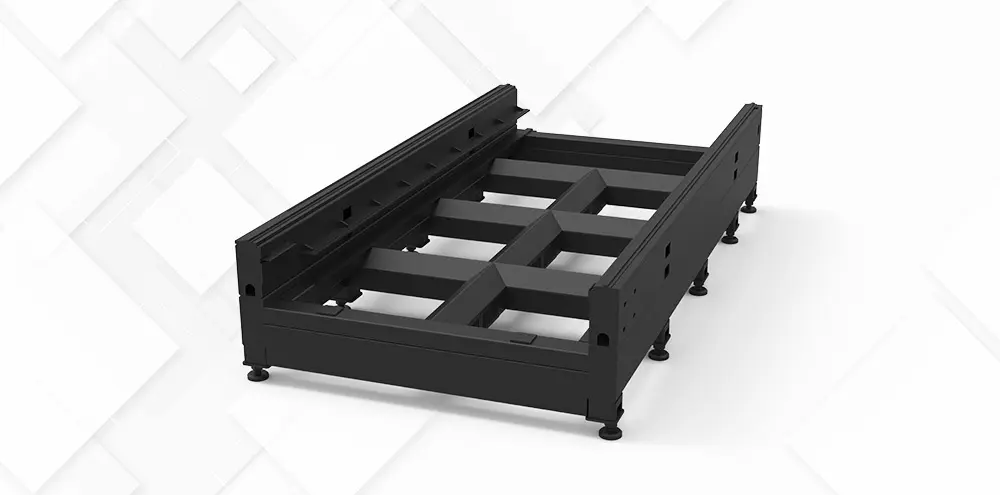

Steel Plate Weld Machine Frame

It is welded by heavy steel plate, the current mainstream bed structure, high stability;

Effect force annealing treatment, high mechanical strength, not easy to deform;

Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;

The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.

product-Lxshow-img

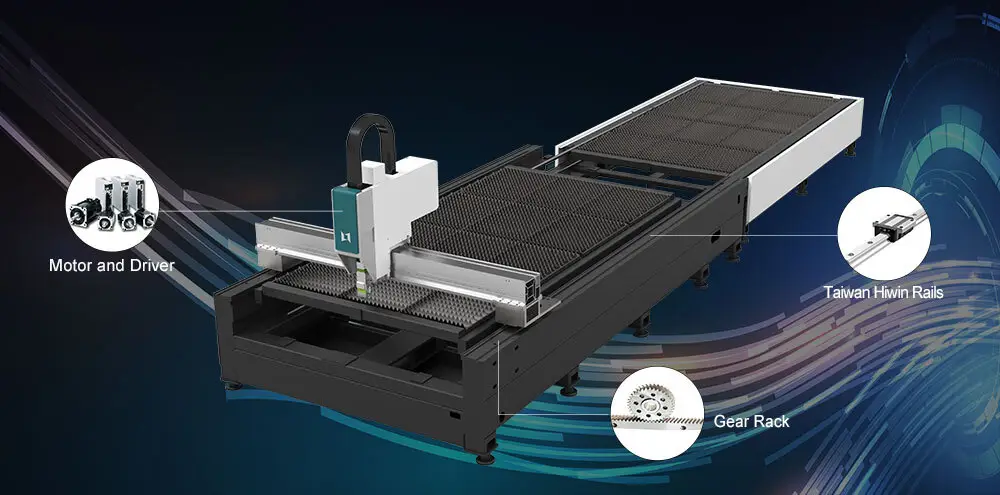

Transmission And Precision

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

product-Lxshow-img

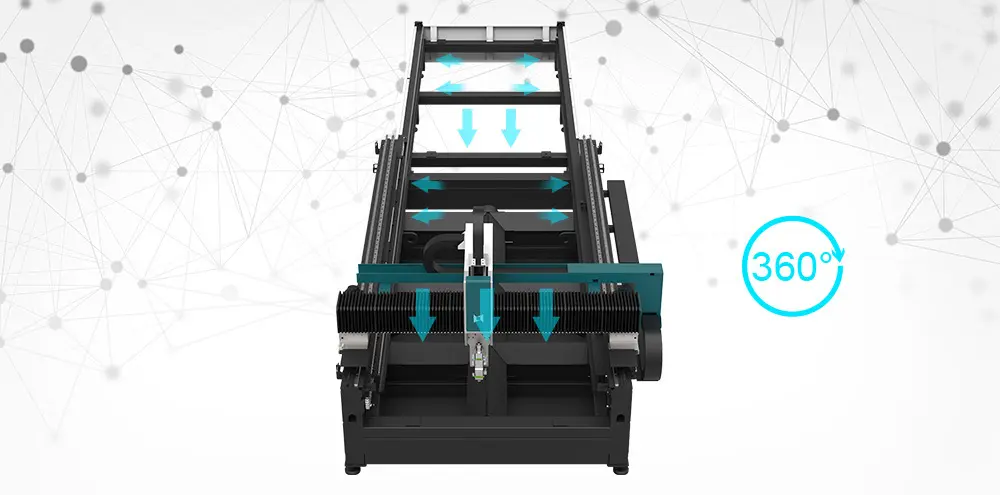

Full coverage, super suction
Adopt the latest cutting-edge tobacco control technology
Each section of the bed has a smoke exhaust device



Powerful negative pressure 360° adsorption
Axial fan wind direction surrounds blowing smoke downward
Full 360° strong adsorption and consistent smoke exhaust
Effectively purify the smoke and dust on the top of the enclosed cutting platform
Improve purification efficiency and reject lens contamination



Net follow-up, wisdom grows by quality
The smoke exhaust device automatically senses the laser cutting position
Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke.

product-Lxshow-img-1

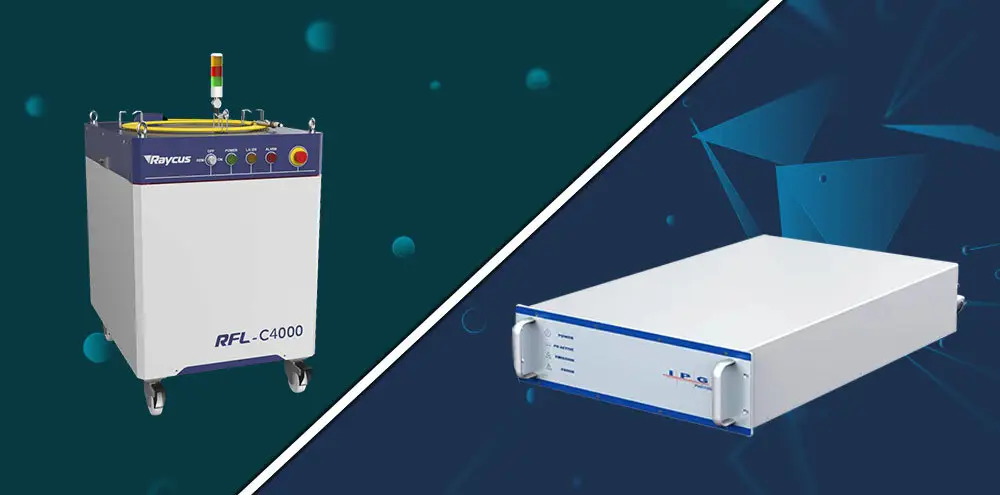

Suitable Power:1000-3000w(4000w optional)

Brand:IPG/Raycus/MAX/JPT/Nlight

product-LX3015E Metal iron sheet laser cutter beam light cutting design signs art artwork machine pr-1

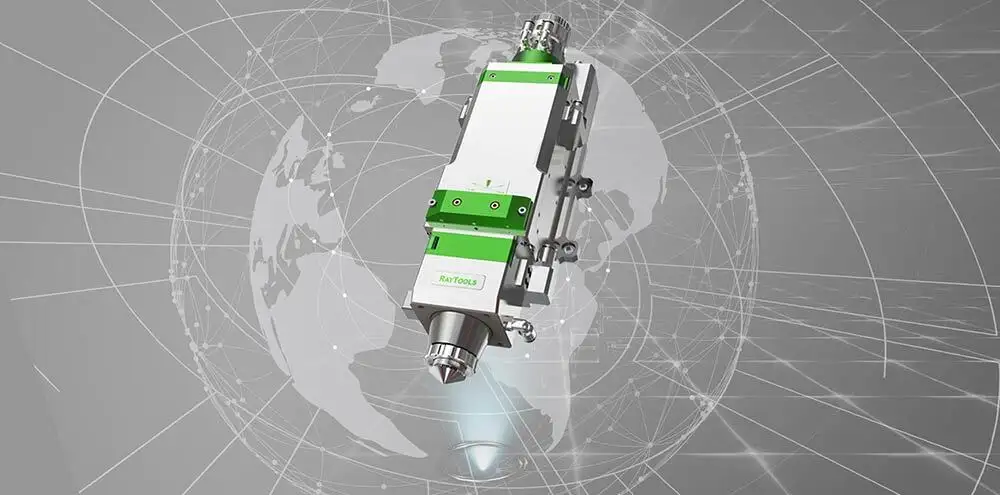

Intelligent Autofocus

The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.


Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.


High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

product-Lxshow-LX3015E Metal iron sheet laser cutter beam light cutting design signs art artwork mac-1


Independent Control Cabinet

Dust-proof
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.



Automatic Thermostat

The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive  temperature damage to components in summer.

product-Lxshow-img-1


product-Lxshow-img-1
