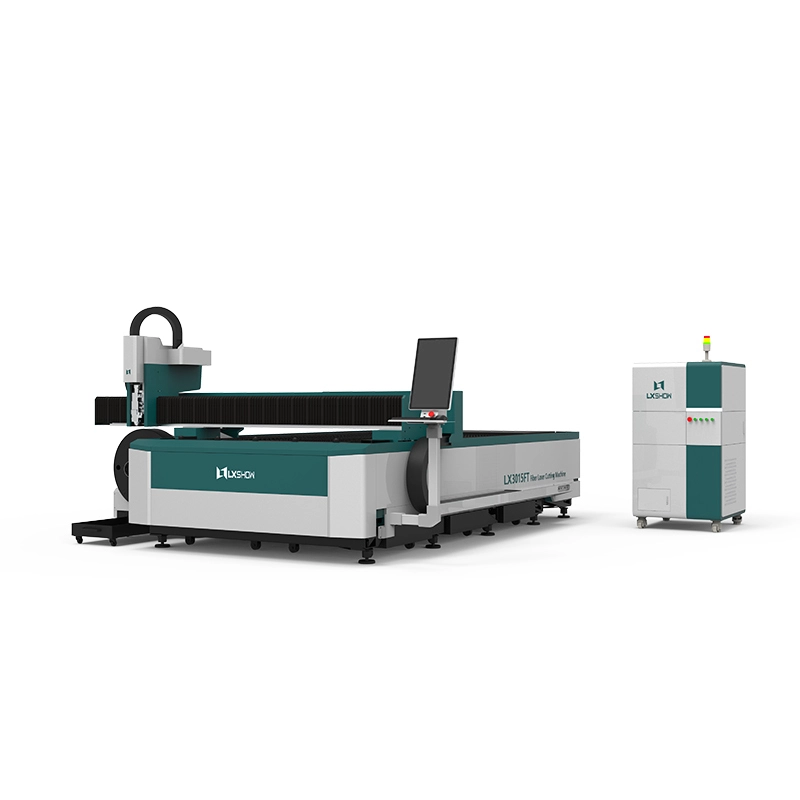

Economical Laser Cutting Metal Sheet And Tube Machines LX3015FT Series For Sale 1000W-6000W

Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Steel plate weld machine frame

It is welded by heavy steel plate, the current mainstream bed structure, high stability;

Effect force annealing treatment, high mechanical strength, not easy to deform;

Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;

The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.

Rotary

Rotary Length:6m standard,8m and other size can be customized

Rotary Diameter:160/220mm is standard. Other size can be customized

Chuck:Both pneumatic control

Pneumatic Chuck Clamping Design

It adopts an pneumatic clamp design on both sides and it can modulate the center

automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

Professional Clamp Design

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting

Intelligent Autofocus

The high efficiency cooling:

Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.

Chase the light aperture:

Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:

Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.

High speed cutting:

25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

Independent Control Cabinet

Dust-proof

 •All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

Automatic Thermostat

 •The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive  temperature damage to components in summer.
