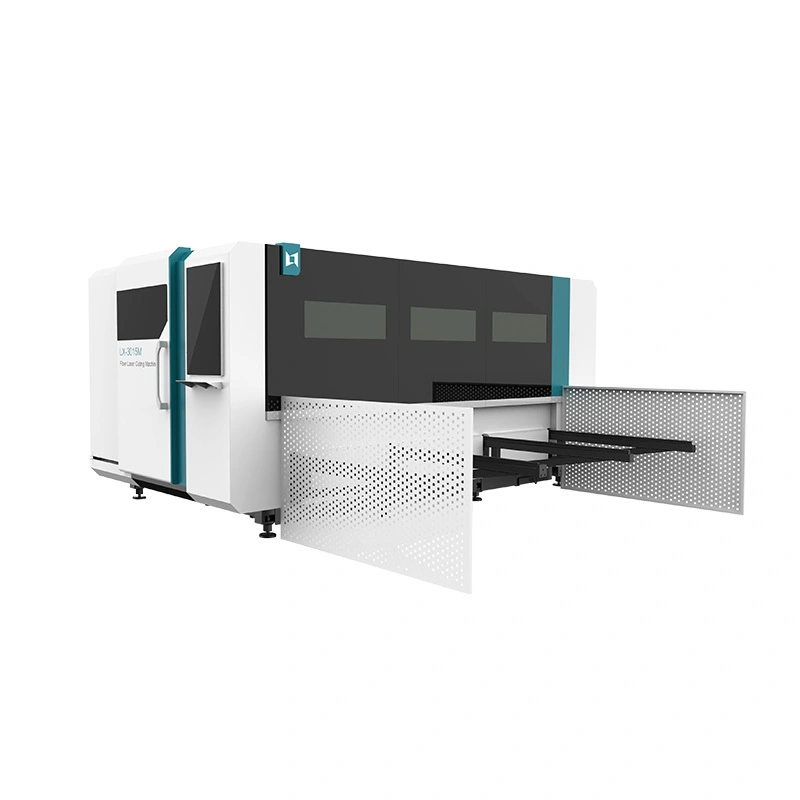

Fiber Laser LX3015M Full Cover Side Workbench Metal Sheet Cutting Machine
Metal Cutting Laser CNC Laser Cutting Machine
LX3015M Full Cover+Side Workbench+High Power
Fiber Laser Metal Sheet Cutting Machine 1000W-12000W（Optional）
5.0
Warranty:
3 years
Payment Term:
T/T;Alibaba trade assurance;West Union;Paypal;L/C.
Model Number:
LX3015M
Machine Weight:
6500KG(About)
Machine Size:
3890*8027*1989mm(about)
Lead time:
10-25 working days
Brand:
LXSHOW
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Aviation Aluminum Gantry
- It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
Steel Plate Weld Machine Frame
- It is welded by heavy steel plate, the current mainstream bed structure, high stability;
- Effect force annealing treatment, high mechanical strength, not easy to deform;
- Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;
- The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.
Intelligent Autofocus
- The high efficiency cooling:Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
- Chase the light aperture:Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
- Automatic focus:Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
- High speed cutting:25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Monitoring system
- Real-time observe the machine running through the panel
|
Model |
LX3015M Fiber laser cutting machine |
|
Working Area |
1500*3000mm |
|
Laser Power |
1000W-6000W ( Optional ) |
|
Laser Wave Length |
1064nm |
|
Working Table |
Sawteeth |
|
Maximum Idle Running Speed |
120m/min |
|
Maximum acceleration |
1.5G |
|
Position Accuracy |
±0.02mm/m |
|
Repeat Positional Accuracy |
± 0.01mm |
|
Position Type |
red dot |
|
Power Consumption |
≤21 KW |
|
Working Voltage |
380V /50Hz |
|
Auxiliary Gas |
oxygen,nitrogen,air |
|
Working life of fiber module |
More than 100000 hours |
|
Work Environment |
0-45°C, Moisture 45-85% |
