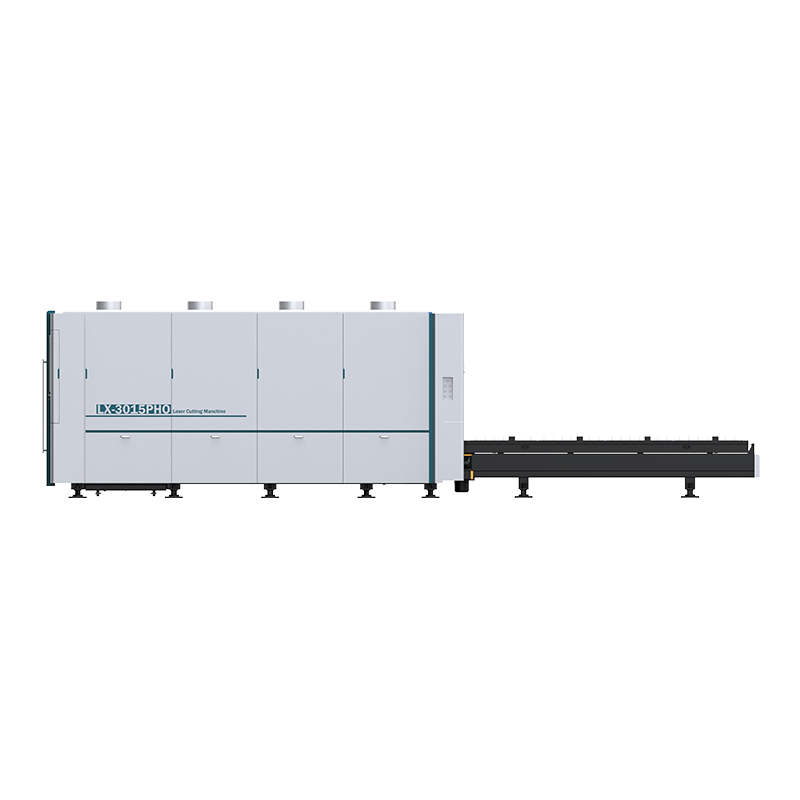

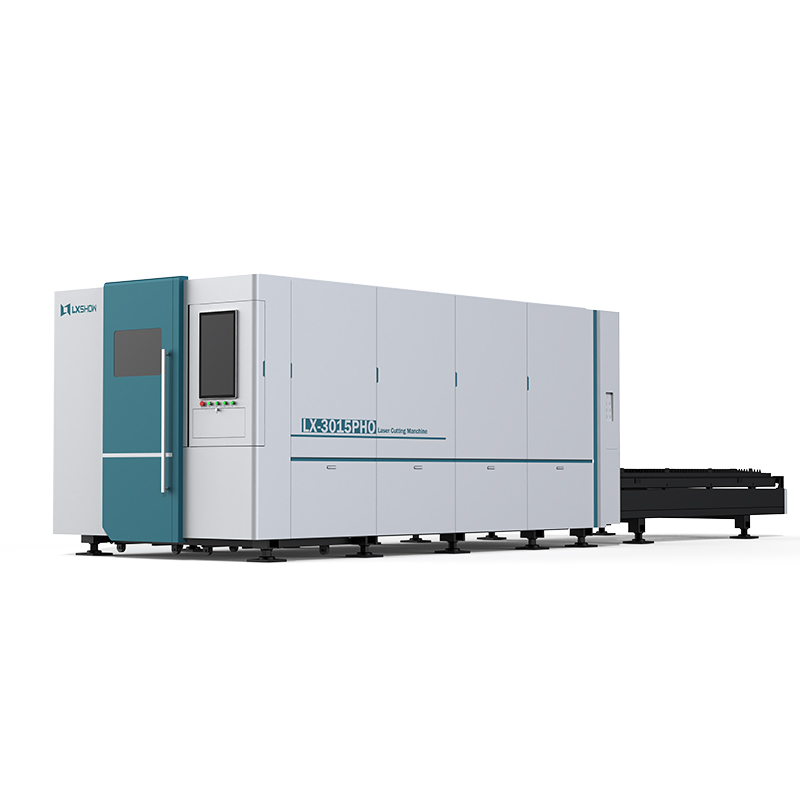

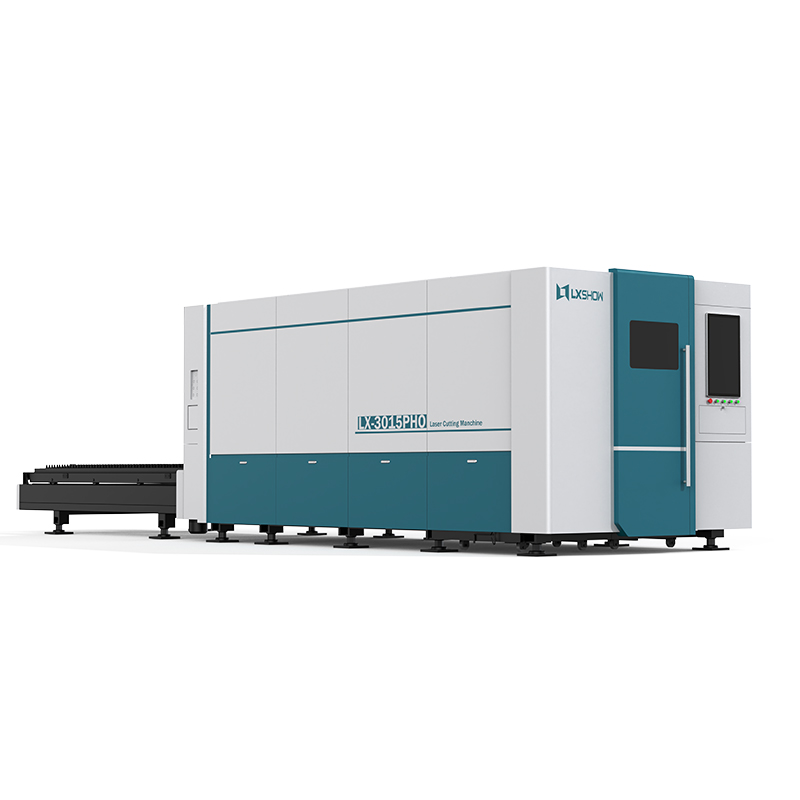

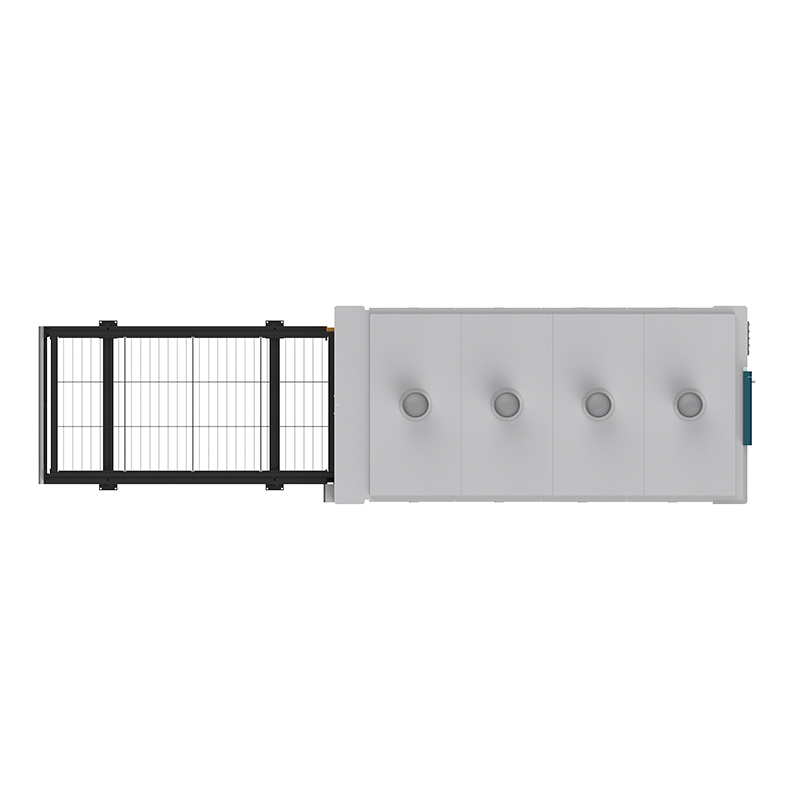

2026 New Update LX3015PHO Full Covered Exchange Table Metal Sheet Laser Cutting Machine for Industry 1

2026 New Update LX3015PHO Full Covered Exchange Table Metal Sheet Laser Cutting Machine for Industry 2

2026 New Update LX3015PHO Full Covered Exchange Table Metal Sheet Laser Cutting Machine for Industry 3

2026 New Update LX3015PHO Full Covered Exchange Table Metal Sheet Laser Cutting Machine for Industry 4

2026 New Update LX3015PHO Full Covered Exchange Table Metal Sheet Laser Cutting Machine for Industry 5

2026 New Update LX3015PHO Full Covered Exchange Table Metal Sheet Laser Cutting Machine for Industry 6

2026 New Update LX3015PHO Full Covered Exchange Table Metal Sheet Laser Cutting Machine for Industry

Name: 2026 New Update LX3015PHO Full Covered Exchange Table Metal Sheet Laser Cutting Machine for Industry
Uploaded: 2026-07-31T15:58:35+08:00
Description: The PHO series boasts a maximum power output of 30KW; its 12mm plate-welded bed significantly enhances stability while providing higher power and speed.

PHO series cutter is newly upgraded with more atmospheric appearance and superior performance.

The PHO series boasts a maximum power output of 30KW; its 12mm plate-welded bed significantly enhances stability while providing higher power and speed.

Model Number: LX3015PHO
Lead time: 20-40 working days
Power: 1kw-30kw
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land

Inquiry

Write a Review

LX3015PHO

Have A Questions?

If you have any questions about our products or services, feel free to reach out to customer service team. We've got preferential price and best-quality products for you.

Main Parts

2026 New Update LX3015PHO Full Covered Exchange Table Metal Sheet Laser Cutting Machine for Industry 10

Viation Aluminum Gantry

Aerospace grade aluminum light quality; High speed, good dynamic response,fast acceleration; Beam as a whole by the finite element analysis optimization of high rigidity; Lightweight design, durable

Z axis Ball Screw Transmission

Smooth movement:has a high efficiency than the sliding screw ,the required torque is only 30% or less. No backlash and high rigidity,using the Gothic full groove shape,the axial directly ,Shaft clearance can be adjusted to a minimum level and can be easily rotated.

Rail

The rolling guide wear is very small,can maintain accuracy for a long time. The friction is very small,the power loss is small;the heat generated during operation is extremely small,and it can run at high speed.

Servo Motor

The highest amplifier responsiveness,greatly shorter the settling time. High efficiency vibration suppression function ,greatly improves the follow-up performance,reduces the vibration during driving the vibration of the front part of the machine when stopped.

Gear

Longer service life, more stable, higher speed and higher reliability. It can ensure constant transmission ratio, can pass any angle between the two axis movement.

Water Chiller

Relative leading product technology(complete laboratory and performance testing means), product specifications and actual performance good consistency. With multiple after-sales office in china and abroad, product service is more real-time and reliable.

Technical Parameters

Model	LX3015PHO Fiber laser cutting machine
Working Area	1500*3000mm
Laser Power	1kw-30kw
Laser Wave Length	1064nm
Working Table	Sawtooth
Maximum Idle Running Speed	120m/min
Maximum acceleration	1.5G
Position Accuracy	±0.02mm/m
Repeat Positional Accuracy	± 0.01mm
Position Type	red dot
Power Consumption	≤21 KW
Working Voltage	380V /50Hz
Auxiliary Gas	oxygen,nitrogen,air
Working life of fiber module	More than 100000 hours
Cooling Type	Water-cooling
Work Environment	0-45°C, Moisture 45-85%

Product application

Widely used in: sheet metal processing industry, automobile manufacturing industry,

electronic and electrical industry, machinery manufacturing industry, advertising and logo industry,

kitchenware industry, aerospace, medical equipment, construction, decoration and other fields.

2026 New Update LX3015PHO Full Covered Exchange Table Metal Sheet Laser Cutting Machine for Industry 16

DENSE

Our service team is trained to solve the customer's problem within 24 hours.

Hardware industry

Handicraft industry

Fitness Equipment Industry

Electronics Industry

Construction Machinery Industry

Automotive Manufacturing

Application Materials

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.

FAQs

Do you have CE document and other documents for customs clearance?

Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

If we are interested in your machine, how do we choose?

1. What main job you do with the machine? 2. What is your request max working area? __mm* __mm? 3. What's your material diameter and length? 4. What material you want to cut,stainless steel,carbon steel? Please tell us, then we can recommend the suitable machine to you.

How about warranty?

3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.

Please tell us which product you want to know or your production needs, we will choose the most suitable machine for you！
