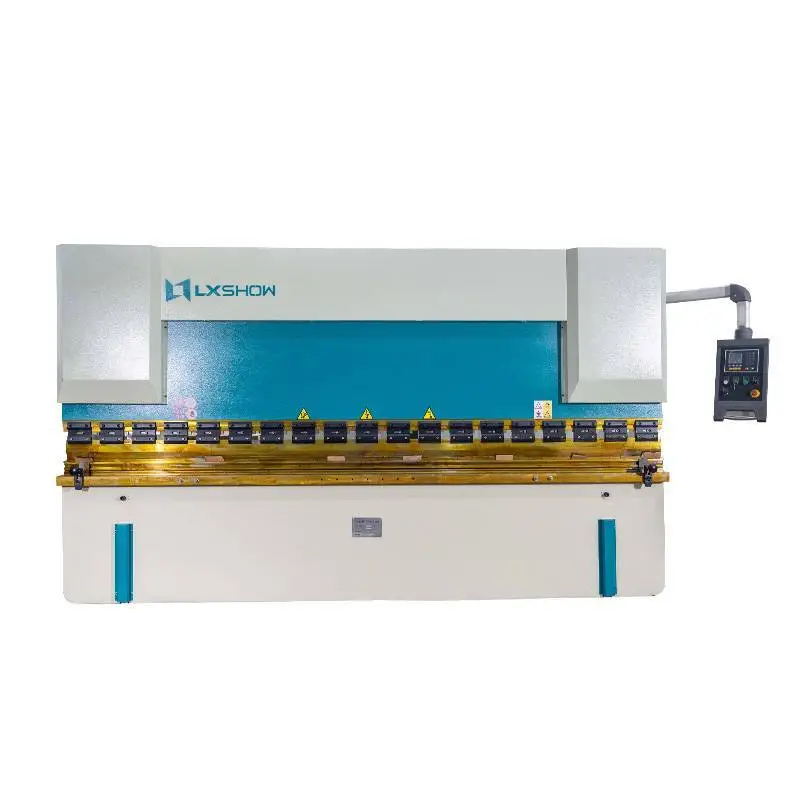

WC67K Simple Hydraulic Sheet Metal Press Brake Machine Bender 125T 4000mm
Complete steel-weldedstructure,with sufficient strength and nigidity;
Hydraulic down-stroke strusture, reliable and smooth;
Mechanical stop unit, synchronous torque, and high precision;
Back- gauge distance and upper rar stroke with electric adjustment, and counter display;
Upper tool with tension compensating mechanism, in order to guarantee high precision of bending;
5.0
Warranty:
3 years（Consumables not included）
Shipping:
by sea /by ship
Payment Term:
T/T;Alibaba trade assurance;West Union;Paypal;L/C
Model Number:
125T4000mm
Lead time:
15-25 working days
Brand:
LXSHOW
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main parts
Nanjing Estun E21 with inverter CNC system
1.E21 CNC system, which can not only meet the CNC functions of machine tools, but also meet the requirements of precision control. In terms of structure, it adopts the mode of direct control of motors. It is easy to maintain and can replace the system and accessories at any time. 2.Easy to operate: This system has multi-step programming, and different sizes can be changed at any time. 3.Manual function: It is convenient for debugging and installation, and the required size can be adjusted in manual mode. 4.Back-off function: This function is unique to this system. It directly controls the motor. In terms of technology, it is required to achieve the accuracy of repeated positioning and the durability of electrical appliances. Only our company has perfect technology and supporting facilities. 5. Parameter setting function: the system has the function of parameter modification, according to the mechanical properties of the machine tool Integrity, modify the best parameter settings, parameters include: rotation coefficient, deceleration distance, slow speed time, front and rear soft limit, etc. 6. After the system is equipped with a frequency converter, according to the programming instructions of the numerical control system, the rear positioning can be realized in one step, without back and forth movement, and the positioning efficiency and accuracy are improved.
Hydraulic system
1. The advanced integrated hydraulic system is adopted to reduce pipeline installation and ensure high reliability and safety in the operation of the machine tool. 2. Can realize the slider movement speed. Rapid descent, slow bending, fast return action, and the speed of fast descent and slow descent can be adjusted appropriately.
Back barrier
1.The rear gauge mechanism adopts ball screw and linear guide, driven by motor. Make sure the material is level and perpendicular to the backsplash.
Front support
Place it on the side of the workbench and fix it with screws. Can be used as a support frame for bending wide and long plates
Bending mold
Concentric mold or square mold.
Wear-resistant general Clamp
Main motor
Side safety guardrails
Foot Pedel
Distribution box
|
Name |
Parameter |
Unit |
|
|
Nominal Pressure |
1250 |
KN |
|
|
Length of Table |
4000 |
mm |
|
|
Distance between Housings |
3160 |
mm |
|
|
Throat Depth |
330 |
mm |
|
|
Ram stroke |
150 |
mm |
|
|
Open MAX Height |
400 |
mm |
|
|
Overall Dimensions |
L |
4100mm |
mm |
|
W |
1600mm |
mm |
|
|
H |
2600mm |
mm |
|
|
Main motor power |
7.5 |
Kw |
|
|
Machine weight |
8 |
Tons |
|
|
Voltage |
220/380/420/660 |
v |
|
|
1）Tonnage=8*1.68*stainless Steel thickness*plate width 2）Tonnage=8*carbon steel plate thickness*plate width |
|||
Sample Press Brake Bending Machine Application
CNC press brake bending machines can be used to shape metal sheets into different shapes in various sizes. It can bend non-ferrous metal, ferrous metal sheet, suitable for various industries requiring metal processing, such as decoration manufacturing, automobile and ship manufacturing, aerospace manufacturing, etc.
press brake sample (1)
press brake sample (7)
press brake sample (8)
press brake sample (3)
press brake sample (2)
press brake sample (6)
press brake sample (5)
press brake sample (4)
