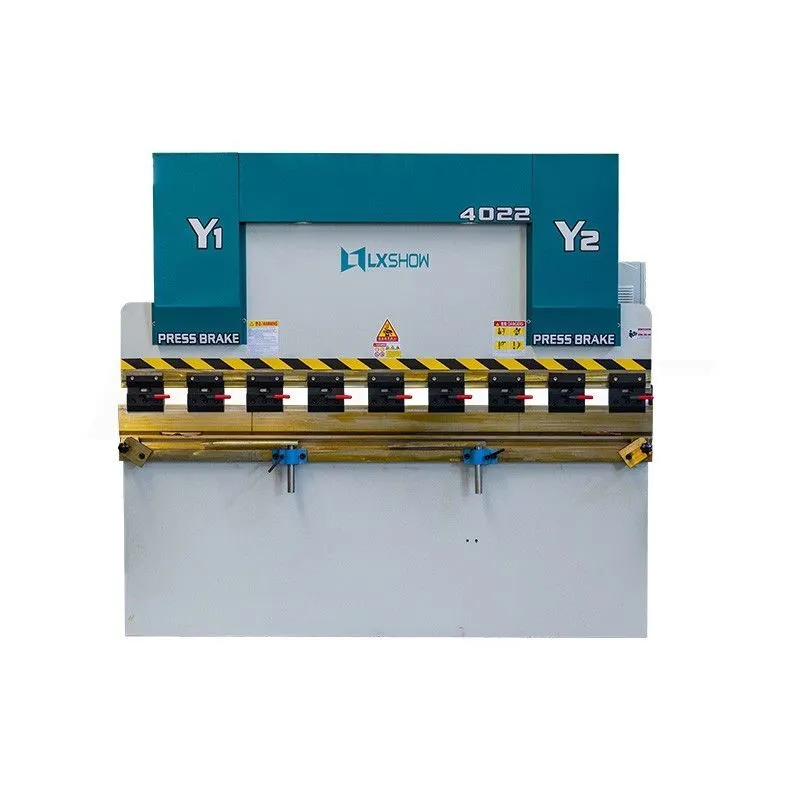

High Efficiency Press Brakes WG67K 40T2200/160T3200
WG67K
High preclsion,high efficlency CNC Torsion Bar Synchro Press Brakes
Holistic welding structure
Stabilizes left and right balance with help of the mechanical Torsion Bar
Backgauge is drove by servo motor and performance
Ball screw and Hinear gulde
5.0
Warranty:
3 years（Consumables not included）
Shipping:
by sea/ by land
Payment Term:
T/T;Alibaba trade assurance;West Union;Paypal;L/C
Model Number:
40T2200mm
Lead time:
20-30 working days
Brand:
LXSHOW
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
- Complete steel-welded structure, with sufficient strength and rigidity;
- Hydraulic down-stroke structure, reliable and smooth;
- Mechanical stop unit, synchronous torque, and high precision;
- The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor;
- Upper tool with tension compensating mechanism, In order to guarantee high precision of bending;
CNC System
- TP10S Touch screen
- Support angle programming and depth programming switching
- Support settings of mold and product library
- Each step can set opening height freely
- The shift point position can be freely controlled
- It can realize Multi-axis expansion of Y1、 Y2、 R
- Support mechanical crowning workingtable control
- Support large circular arc automatic generate program
- Support top dead center, bottom dead center, loose foot, delay and other step change options, it improve processing efficiency effectively
- Support electromagnet simple bridge
- Support fully automatic pneumatic pallet bridge function
- Support automatic bending, realize unmanned bending control, and support up to 25 steps of automatic bending
- Support time control of valve group configuration function, fast down, slow down, return, unloading action and valve action
- It has 40 product libraries, each product library has 25 steps, large circular arc supports 99 steps
Wear-resistant Quick Clamp
- The inner side of the CNC quick fixture is equipped with wear-resistant rubber strips, which are easy to clamp when installing the bending machine mold, without loosening, and do not drop the tool, which greatly shortens the adjustment time for clamping the upper mold.
Bending Mold
- 1. The upper die adopts heavy-duty clamping T-slot.
- 2. The upper and lower molds adopt segmented short molds, and the length required for splicing has high precision and good interchangeability, and is easy to disassemble. The connecting part is equipped with a compensation mechanism to compensate the deflection of the worktable and the slider when bending the sheet to ensure high working accuracy.
- 3. The lower mold is processed into different "V"-shaped grooves for easy selection by the operator, and it is equipped with a lower mold turning mechanism. Just put the lifting chain on the slider lug and the lower mold lug, loosen the top mold to lift The slider can rotate the lower die to select the required "V" groove position surface.
Backgauge
- Ball screw/liner guide are high precision
Front Support
- Front support moves along linear guide, hand wheel adjust the height up and down.
- Aluminium alloy material platform ,attractive appearance, and decrease scratch of workpiece.
Parameters
Optional Parts
Crowning Compensation for Worktable
- A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
- The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.
Lasersafe Safety Guard
- Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module
- Dual beam from protection are point below 4mm below the tip of upper tool,to protect operator`s fingers；three regions(front,middle and real) of leaser can be flexibly closed,ensure complex box bending processing ;mute point is 6mm,to realize efficient and safe production.
Mechanical Servo Bending Help
- When mark bending support plate can realize the function of turning over following.following angle and speed are calculated and controlled by CNC controller,move along linear guide left and right.
- Adjust the height up and down by hand, front and rear can also be adjust manually to suit for different bottom die openning.
- Support platform can be brush or stainless steel tube ,according to workpiece size,two supports linkage movement or seperate movement can be chosed.
