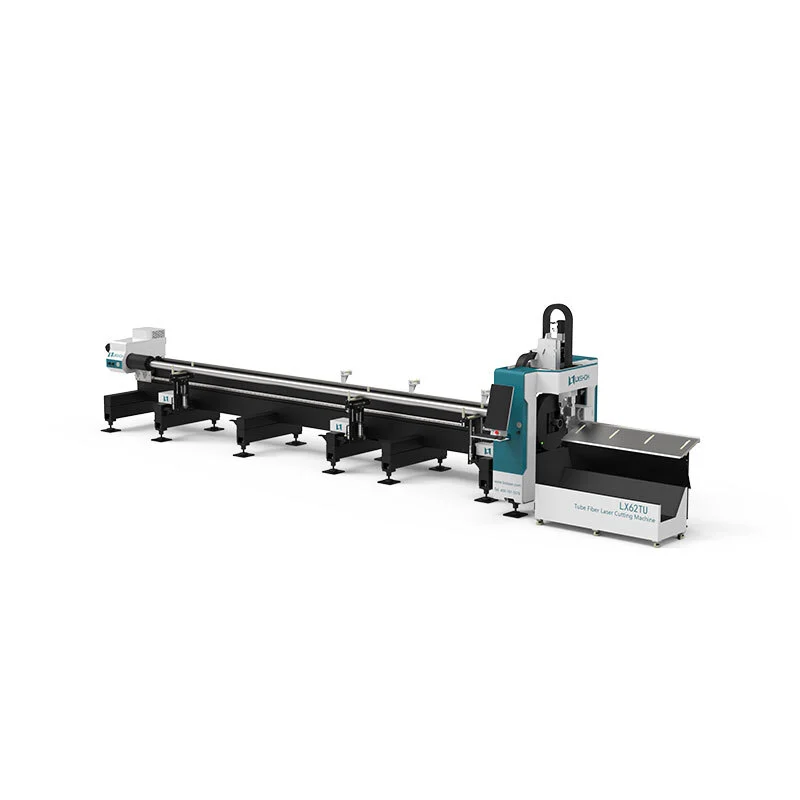

TU62-Metal Tube Fiber Laser Cutting Machine With Following Loading And Unloading Table

Model:LX62TU

Power:1kw-6kw

Machine Size:9000*2000*2500mm(About)

N.W/Kg:3960KG(About)

Lead time:25-30 working days

Payment Term:T/T;Alibabatradeassurance;WestUnion;Paypal;L/C

Brand:LXSHOW

Warranty:3 years

Shipping:By land / by sea

    oops...!

    no product data.

    Go to homepage

    Technical Parameters

    Model

    LX62TU Fiber laser cutting machine

    Holding diameter for round pipe

    20-220mm

    Holding size for square tube

    20*20-220*220mm

    Laser Power

    1000W-6000W

    Laser Wave Length

    1064nm

    Maximum Idle Running Speed

    80m/min

    Maximum acceleration

    0.8G

    Position Accuracy

    ±0.05mm

    Repeat Positional Accuracy

    ±0.03mm

    Position Type

    red dot

    Working Voltage

    380V /50Hz

    Auxiliary Gas

    oxygen,nitrogen,compressor air

    Working life of fiber module

    More than 100000 hours

    Loading weight

    230KG

    TU 半自动
    62TU suidong bed

    Side-Hanging-Structure-One-Piece-Welded-Bed

    The bed adopts a side-mounted structure and an integrated welded bed. After annealing, internal stress is eliminated. After rough machining, vibration aging is performed before fine machining, which greatly improves the rigidity and stability of the machine tool and ensures the accuracy of the machine tool. The CNC system controls the AC servo motor drive. After the motor drives, the chuck realizes reciprocating motion in the Y direction, realizing rapid movement and feed motion. The Y-axis rack and linear guide rails are both high-precision products, which effectively ensures the accuracy of the transmission; the limit switches at both ends of the stroke are controlled, and hard limit devices are installed at the same time, which effectively ensures the safety of the machine tool movement.

    Front feeding device

    • The front feeding device includes a support plate controlled by a cylinder. When the pipe to be cut is long, the support plate supports the pipe to prevent it from sagging.
    • When cutting the workpiece, the raised support cylinder supports the support plate to support the pipe to prevent it from sagging. When cutting the workpiece, the raised support cylinder is fully retracted, the workpiece falls onto the blanking plate, and slides to the storage place. The cylinder movement is automatically controlled by the system.
    62TU follow up front Tube system
    62TU suidong rear chuck

    Rear chuck

    • Large clamping force
    • Increased dust removal function
    • Improved chuck stability

    The Second chuck is clamped


    • The head and tail are switched, which can achieve Zero tailing cutting.
    • When machine cutting, two chucks hold at the same time to ensure cutting accuracy.
    • Follow up material support table to  prevent pipe deformation and sagging.
    62TU suidong second chuck
    hengliang

    Axis-Device


    • The crossbeam of the X-axis device adopts a gantry structure, which is welded by a combination of square tube and steel plate.The gantry component is fixed on the bed, and the X-axis is driven by a servo motor to drive the rack and pinion to realize the reciprocating motion of the slide plate in the X direction. In the process of movement, the limit switch controls the stroke to limit the position to ensure the safety of the system operation.
    • The Z-axis device mainly realizes the up and down movement of the laser head.
    62TU suidong rear chuck

    Rear chuck

    • Large clamping force
    • Increased dust removal function
    • Improved chuck stability

    The Second chuck is clamped

    • The head and tail are switched, which can achieve Zero tailing cutting.
    • When machine cutting, two chucks hold at the same time to ensure cutting accuracy.
    • Follow up material support table to  prevent pipe deformation and sagging.
    62TU suidong second chuck
    汇总

    About Us

    As a leader in laser smart equipment we focused on providing great technical support and we have one professional laser cutting machine laser cleaning machine and laser welding machine  communication Center. we will build our industry 4.0 and future plants, helping companies to build smart manufacturing and enabling smart manufacturing .Our company's values are customer-centric, strive-oriented, continuous innovation, and realize company  value and employee dreams.

    service
    Technical Support
    We have a professional and experienced after-sales team. We support door-to-door after-sales service. In order to effectively solve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year. To improve the problem-solving level of the after-sales team. Improve their skills more comprehensively, to serve customers wholeheartedly.
    1920展会
    Exhibition
    Since its establishment, Lingxiu Laser Equipment Co., Ltd. has never stopped its pace of progress. Through unremitting efforts, it has expanded the laser equipment market overseas. In the past few years, we have participated in exhibitions all over the world, including but not limited to Russia, South Korea, Vietnam, UAE, Turkey, Pakistan, Saudi Arabia and other countries.
    customer
    Customer Visit
    We will also invite customers from all over the world to visit our factories and offices. The countries that came include: Russia, South Korea, Kosovo, Jordan, Saudi Arabia and many other countries.

    Application Materials

    Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe,  Titanium Pipe, Metal Tube, Metal Pipe, etc.

    8 (2)
    8 (2)
    2 (8)
    2 (8)
    6 (3)
    6 (3)
    1 (8)
    1 (8)
    4 (4)
    4 (4)
    3 (7)
    3 (7)
    7
    7
    5 (3)
    5 (3)

    Application Industry

    Laser cutting machines are widely used in many industries due to their advantages such as fast cutting speed, high cutting quality, non-contact processing, and simple operation. They are mainly: automobile manufacturing industry; sheet metal processing industry; agricultural machinery industry; kitchenware industry; fitness equipment industry; advertising industry; shipbuilding industry; aerospace industry; metal cutting, etc.
