    Technical Parameters

    Model

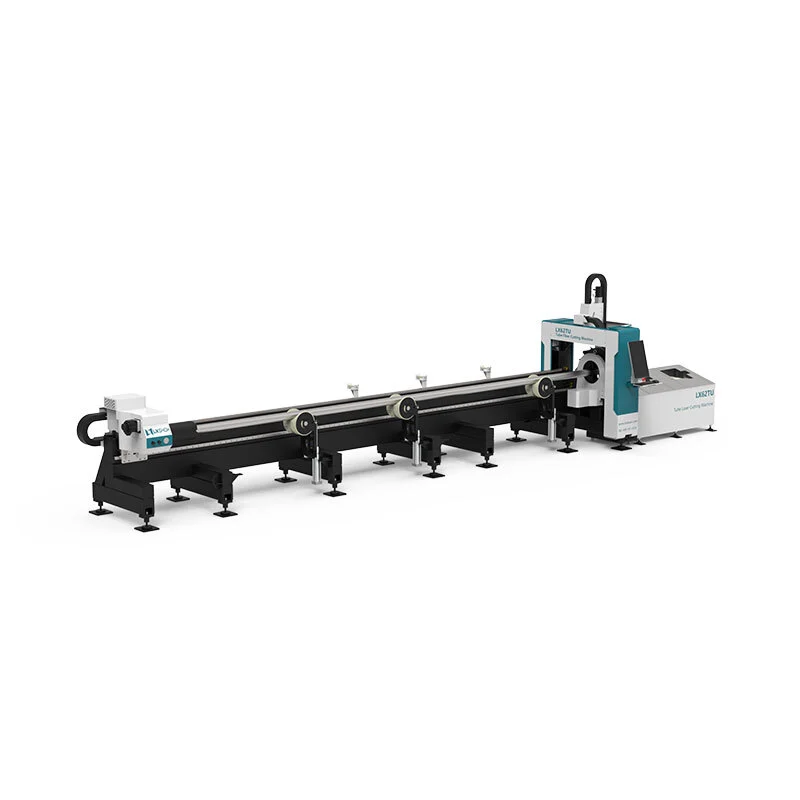

    LX62TU Fiber laser cutting machine

    Working Area

    20-220mm diameter, 6m length tube processing

    Laser Power

    1000W-6000W(Optional)

    Laser Wave Length

    1064nm

    Maximum Idle Running Speed

    80r/min

    Maximum acceleration

    0.8G

    Position Accuracy

    ±0.02mm/m

    Repeat Positional Accuracy

    ±0.01mm/m

    Position Type

    red dot

    Power Consumption

    21 KW

    Working Voltage

    380V /50Hz

    Auxiliary Gas

    oxygen,nitrogen,air

    Working life of fiber module

    More than 100,000 hours

    Work Environment

    0-45°C, Moisture 45-85%

    bed 1

    Side-Hanging-Structure-One-Piece-Welded-Bed

    The bed adopts side-hanging structure and one-piece welded bed, and the bed is annealed to eliminate internal stress, thus greatly improving the rigidity and stability of the machine tool and ensuring the precision of the machine tool. The numerical control system controls the AC servo motor drive, and the chuck realizes the reciprocating motion in the direction of Y-axis after the motor drive to realize the fast moving and feeding motion. The limit switches at both ends of the stroke are controlled and hard limit devices are installed to effectively ensure the safety of the machine movement.

    Support-Mechanisms

    The variable-diameter wheel support is lifted and lowered by the cylinder, and it can be manually adjusted to different scale positions to support pipes of different sizes.

    TS托料1
    chuck

    Chuck-Part

    The chuck is divided into front and rear two pneumatic full-stroke chucks, both of which can move in the Y direction. The rear chuck is responsible for clamping and feeding the pipe, and the front chuck is installed at the end of the bed for clamping materials. The front and rear chucks are respectively driven by servo motors to achieve synchronous rotation.

    Under the joint clamping of double chucks, short tail cutting can be realized, and the short tail of the mouth can reach 20-40mm, while supporting the short tail cutting of longer tail.

    The TU series pipe cutting machine adopts the method of chuck movement and avoidance, which can realize the cutting with two chucks all the time, and will not cause the pipe to be too long and unstable, and the precision is not enough.

    Axis-Device

    The crossbeam of the X-axis device adopts a gantry structure, which is welded by a combination of square tube and steel plate.The gantry component is fixed on the bed, and the X-axis is driven by a servo motor to drive the rack and pinion to realize the reciprocating motion of the slide plate in the X direction. In the process of movement, the limit switch controls the stroke to limit the position to ensure the safety of the system operation.

    At the same time, the X/Z axis has its own organ cover to protect the internal structure and achieve better protection and dust removal effects.

    The Z-axis device mainly realizes the up and down movement of the laser head.

    The Z-axis can be used as a CNC axis to perform its own interpolation movement, and at the same time, it can be linked with the X and Y axes, and can also be switched to follow-up control to meet the needs of different situations.

    hengliang
