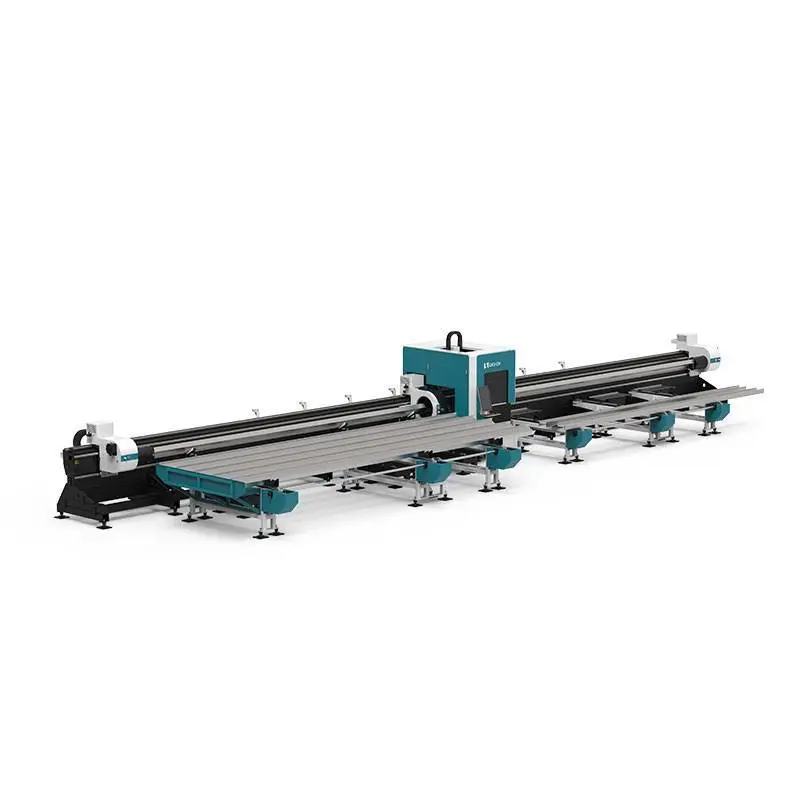

Four-chuck LXSHOW TIV Series Fiber Laser Pipe Cutting Machine

Model Number: LX83TIV Series

Lead time:10-25 working days

Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C

Brand:LXSHOW

Warranty:3 years

Shipping:By sea/By land

    oops...!

    no product data.

    Go to homepage
    Four-chuck LXSHOW TIV Series Fiber Laser Pipe Cutting Machine 6
    Four-chuck LXSHOW TIV Series Fiber Laser Pipe Cutting Machine 7
    Four-chuck LXSHOW TIV Series Fiber Laser Pipe Cutting Machine 8
    Pneumatic Chunk Clamping Design
    It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350,Φ20-Φ500 is optional)
    Read More
    Four-chuck LXSHOW TIV Series Fiber Laser Pipe Cutting Machine 9
    The Segmented Rectangle Laser Tube Welded Bed
    Good rigidity, high precision, no deformation during the life cycle; Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance
    Read More
    Four-chuck LXSHOW TIV Series Fiber Laser Pipe Cutting Machine 10
    Fractional Automatic Support Installation
    It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
    Read More
    Four-chuck LXSHOW TIV Series Fiber Laser Pipe Cutting Machine 11
    Professional Clamp Design
    Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
    Read More

    Advantages

    • The Absolute Value Servo Motor
    • Intelligent Alarm System
    • Stroke intelligent protection
    83TIV-A
    The Absolute Value Servo Motor
    System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation
    83TIV-B
    Intelligent Alarm System
    Stroke intelligent protection
    It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment. Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk.


    Machine Model

    LX83TIV Series

    Power of Generator

    3000W-12000W (Optional)

    Chuck

    Front and rear dual pneumatic chucks

    Working Length

    6/8/12/20/24meters(Other size can be customized )

    Maximum Speed

    70m/min

    Chuck speed

    80r/min

    Applicable pipe specifications

    Φ20-Φ220 Φ20-Φ350 Φ20-Φ500

    Tube length

    6050mm

    Silo load-bearing

    3T

    Single maximum weight

    200kg

    Voltage

    380V±10%50HZ


    Four-chuck LXSHOW TIV Series Fiber Laser Pipe Cutting Machine 14


    Jinan Lingxiu Laser

      Is established in July 2004 owns more than 500 square meters of researching and office space, more than 32000 square meters factory All machines, passed the European Union CE authentication American FDA cerificate and are certied to ISO 9001. Products are sold to USA, Canada, Australia, Europe. South east Asia, Afica etc, more than 120 counties and areas, and supply OEM service for more than 30 manufactures.


    Our Products includes All kind of

    1.Laser Cleaning machine

    2.Laser welding machine

    3.Press brake


    We can also customized non-standard assist equipment as your detailed work reauirements.
