stable metal laser cutter wholesale for Clock

Warranty:
3 years
Shipping:
By sea/By land
Payment Term:
T/T;Alibaba trade assurance;West Union;Payple;L/C.
Model Number:
LX16030L
Lead time:
10-25 working days
Brand:
LXSHOW
Inquiry

product-Lxshow-img

Machine Model

LX12025L

LX12020L

LX16030L

LX20030L

LX24030L

Working Area

12100*2550

12100*2050

16500*3200

20500*3200

24500*3200

power of Generator

4kw-20kw

X/Y-axis Positioning Accuracy

0.02mm/m

X/Y-axis Repositioning Accuracy

0.01mm/m



X/Y-axis Max. linkage speed

80m/min

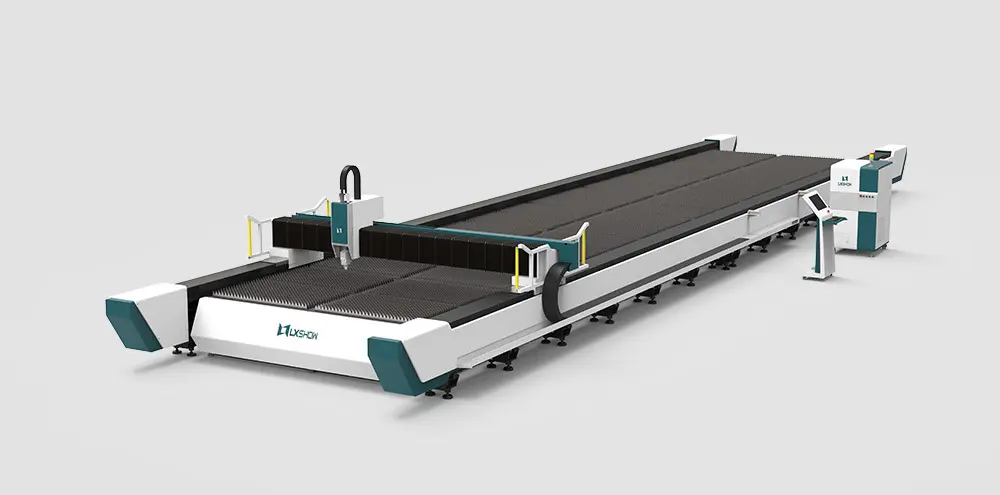

Maximum cutting area could be 24500mm*3200mm depend on your working , power up to 20000W



Innovative environmental protection ventilation system :The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly



A safety grating is installed on the beam. When a person enters the processing area by mistake, the equipment will brake immediately, effectively avoiding dangerous situations.

product-LX16030L High power Ultra Large Format fiber laser cutter LX16030L laser metal cutting LXSHO

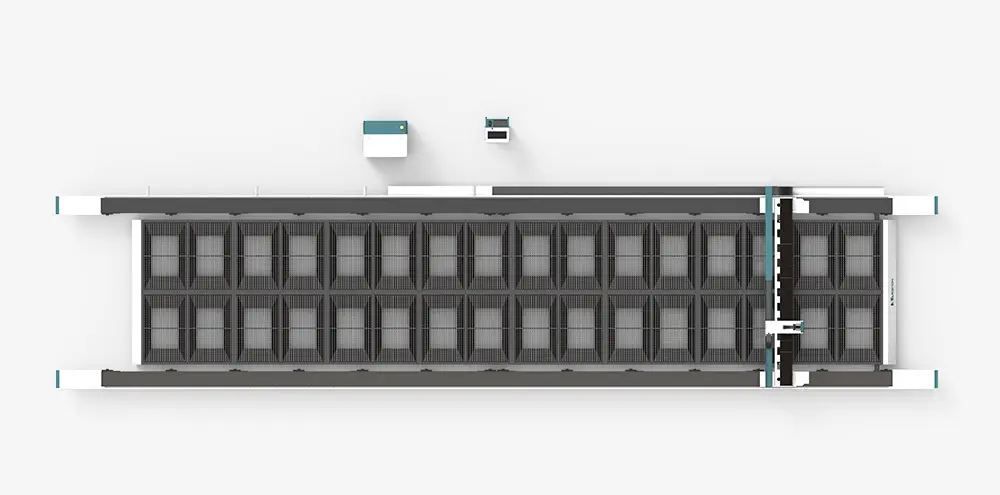

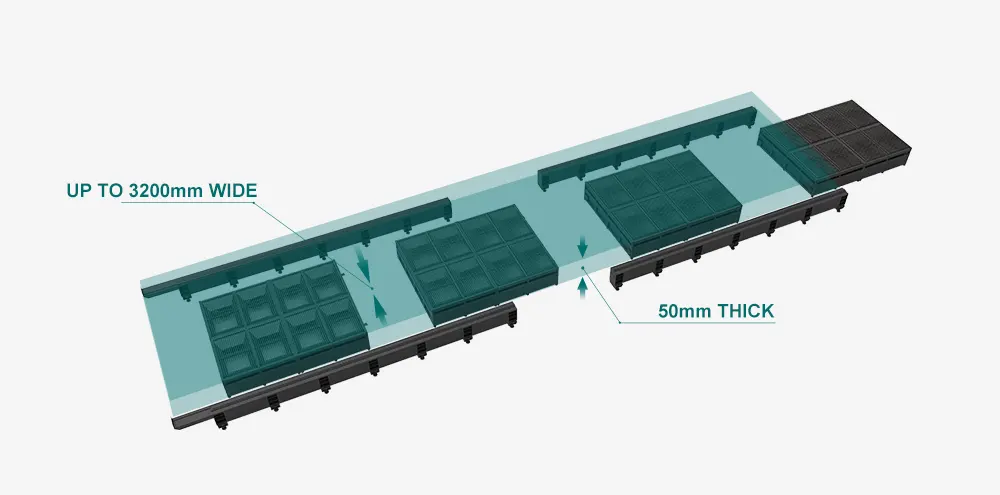

Customize the processing format at will

LXSHOW provides the flexibility to deal with ultra-large-format thick plates, segmented splicing bed, and the format can be customized on demand.

The separate design of the bed and worktable ensures the high dynamic performance of the machine tool and the service life of the machine tool. It can adapt to workpieces up to 3200mm wide and 50mm thick.

product-Lxshow-img

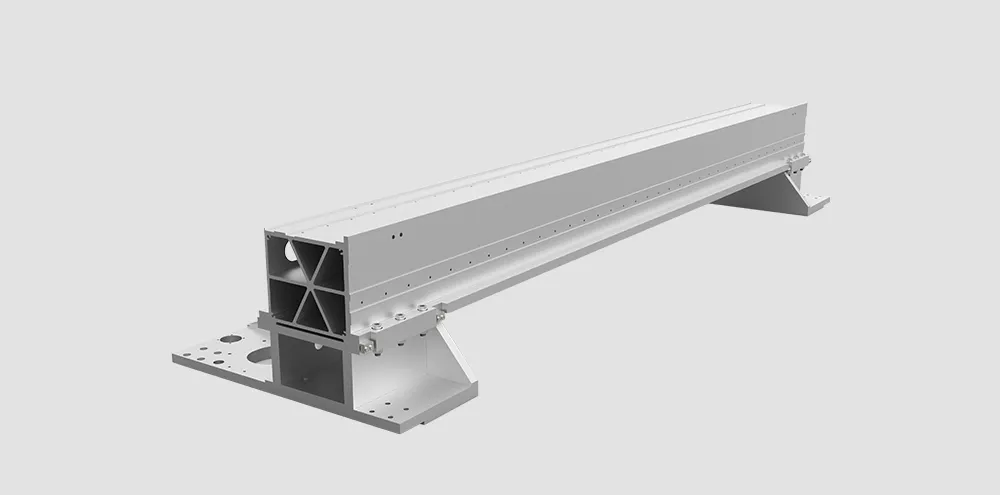

Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

product-Lxshow-img



Segmented modular workbench, convenient and cost-saving for slag removal

Independent research and development of patented modular workbench, easy to disassemble and replace, without hindering production,

Optional drawers, convenient for small parts cleaning, efficient, time-saving and safe maintenance.

product-Lxshow-img

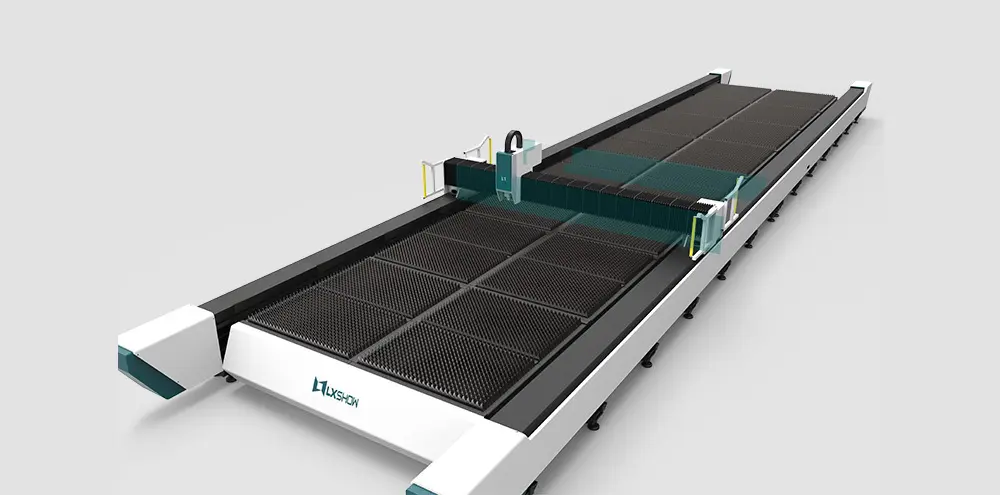

Active safety brake

A safety grating is installed on the beam. When a person enters the processing area by mistake, the equipment will brake immediately, effectively avoiding dangerous situations.

product-Lxshow-LX16030L High power Ultra Large Format fiber laser cutter LX16030L laser metal cuttin



Innovative environmental protection ventilation system

Partition dust removal can instantly remove the smoke and dust generated by cutting, creating a clean and clean working environment for you.

product-Lxshow-img-1

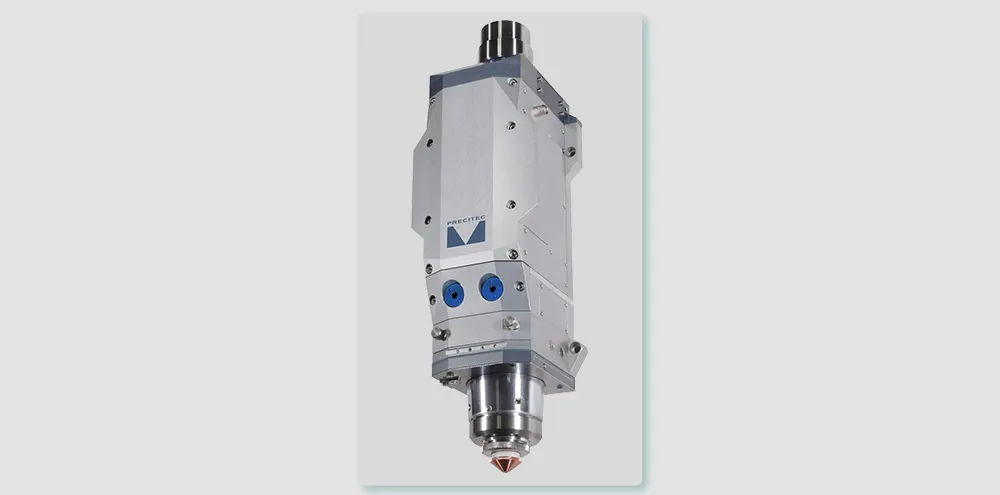

Auto Focus Cutting Head Precitec

• motorized focus position adjustment for automatic machine setup and piercing work

• lightweight and slim design created for fast acceleration and cutting speed

• drift-free, fast-reacting distance measurement

• permanent protective window monitoring

• automated piercing with PierceTec

• water cooling of the sheet metal with CoolTec

• completely dustproof beam path with protective windows

• LED operating status display

• output of all sensor data via WLAN to APP and machine control possible

• pressure monitoring in the nozzle area (gas cutting) and in the head

product-LX16030L High power Ultra Large Format fiber laser cutter LX16030L laser metal cutting LXSHO-1

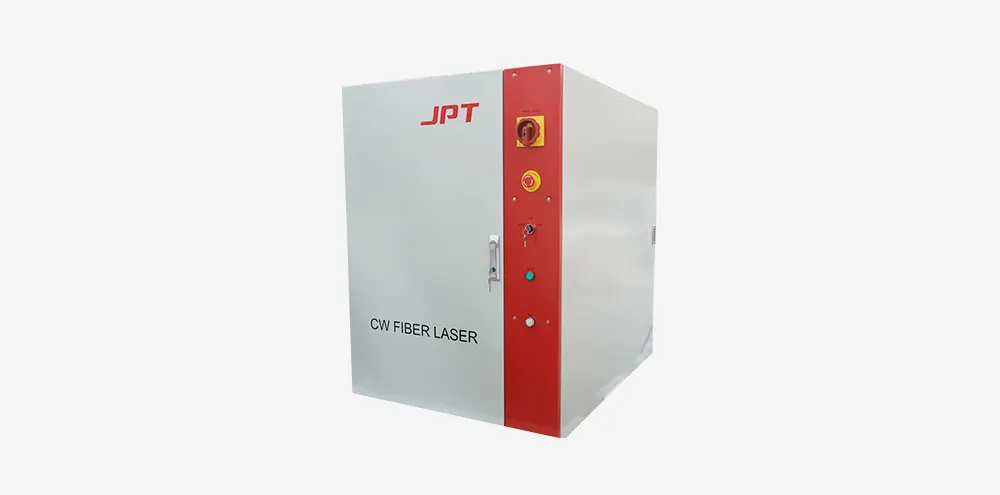

12000W JPT Fiber Lasers Source

World Famous Brand

Powerful cutting ability with stainless steel, aluminum and other metal materials, cutting thickness is up to 40mm.



Long Service Life

The world leading JPT laser has stable performance, the service life can reach 100000 hours, and the overall quality of the equipment can be guaranteed safely.



Stable Cutting Performance

Fiber laser source can produce excellent beam quality, finer cutting lines, higher working efficiency and better machining quality. Fully closed constant temperature working environment makes laser source more effective to ensure the stable operation.

product-Lxshow-img-1



Transmission And Precision

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

product-Lxshow-img-1



Independent Control Cabinet

Dust-proof

•All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.


Automatic Thermostat

•The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive  temperature damage to components in summer.

product-Lxshow-img-1


product-Lxshow-LX16030L High power Ultra Large Format fiber laser cutter LX16030L laser metal cuttin-1
