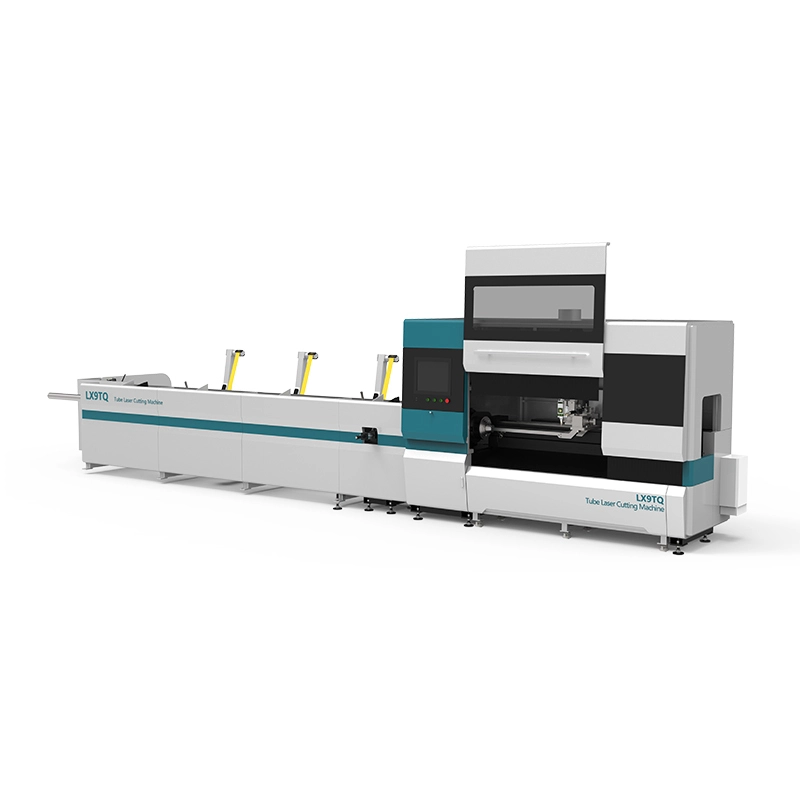

Fiber Laser Cutting Machine LX9TQ Series For Metal Tube
Model Number:LX9TQ
Power:1kw-3kw
Lead time:10-25 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size:8500*1500*2100mm(About)
Machine weight:3000KG (About)
Brand:LXSHOW
Warranty:3 years
Shipping:By sea/By land
Machine Model | LX9TQ |
Power of Generator | 1000-3000W |
Chuck | Front and rear dual pneumatic chucks |
Positioning Accuracy | 1500*3000mm(Other size can be customized ) |
Maximum Speed | 70m/min |
Chuck speed | 80r/min |
Applicable pipe specifications | Round tube 20mm-80mm |
Tube length | 6050mm |
Silo load-bearing | 3T |
Single maximum weight | 200kg |
Voltage | 380V±10%50HZ |
The Segmented Rectangle Laser Tube Welded Bed
Good rigidity, high precision, no deformation during the life cycle;
Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance
Pneumatic Chuck Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting
The Absolute Value Servo Motor
System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation
Intelligent Alarm System
It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment
Stroke intelligent protection
Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk
Intelligent Autofocus
lt will automatically in cutting process adjust the focus which can realize the best cutting effect of different thickness of metal
Jinan Lingxiu Laser
Is established in July 2004 owns more than 500 square meters of researching and office space, more than 32000 square meters factory All machines, passed the European Union CE authentication American FDA cerificate and are certied to ISO 9001. Products are sold to USA, Canada, Australia, Europe. South east Asia, Afica etc, more than 120 counties and areas, and supply OEM service for more than 30 manufactures.
Our Products includes All kind of
1.Laser Cleaning machine
2.Laser welding machine
3.Press Brake
4.ect.
We can also customized non-standard assist equipment as your detailed work reauirements.
