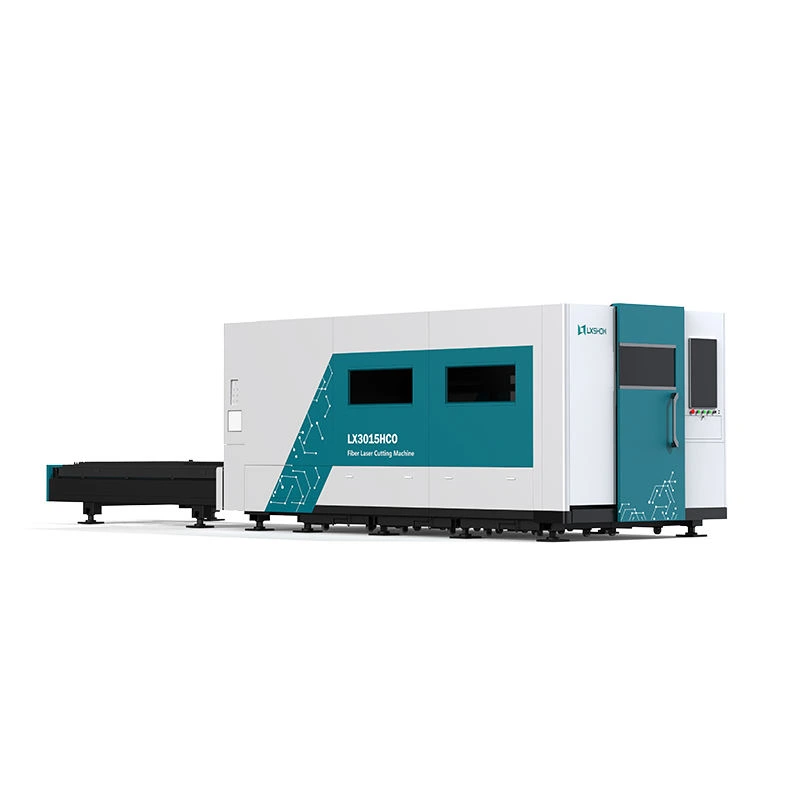

New Update LX3015HCO Series Exchange Table Laser Cutting Machine for Factory
HCO series cutter is newly upgraded with more atmospheric appearance and superior performance.
HCO series cutting machines have been optimized and upgraded on the basis of H series, with more stable beds and easier disassembly and assembly, pursuing simultaneous improvement of environmental protection and efficiency.
- Model Number: LX3015HCO
- Lead time: 20-40 working days
- Dimension: 2280*4800*2100mm
- N.W/KG: 4800KG
- Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C
- Brand: LXSHOW
- Warranty: 3 years
- Shipping: By sea/By land
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
Falmec's excellence can be also appreciated in taps and fittings. A selection made with attention to each detail, to satisfy every stylistic and usage requirement, creating the most diverse and fascinating combinations with Falmec sinks and the most varied kitchen countertops.
8mm Sheet Metal Welding Bed
- The bed is upgraded to a sheet metal welding 8mm welded bed, which is annealed to eliminate internal stress, and then subjected to vibration aging and fine machining after rough machining: this greatly improves the rigidity and stability of the machine tool and ensures its accuracy.
All series upgraded to 5mm thickness blade
- The blades of the HCO series cutting machines are all upgraded to 5mm thickness.
- Thickening the blade can enhance the sturdiness and durability of the blade. Thicker blades usually have higher pressure resistance and stability, can better cope with shock and vibration during cutting, and reduce the risk of blade breakage and deformation.
- Thickening the blade can reduce resistance during cutting. Thicker blades can provide greater cutting force when cutting, which is suitable for cutting harder or thicker materials.
Convenient transportation
- The new HCO series exchangeable table cutting machine is easier to disassemble and assemble; 3015 format is installed in a 20-foot cabinet, only the rear bed needs to be disassembled; 6015 format is installed in a 40-foot cabinet.
- It saves freight and is more convenient to install, saving transportation costs, time costs and installation costs.
Partition Dust Removal (Optional)
- Improve dust removal efficiency：Each partition is equipped with an exhaust system to specifically handle the smoke and dust generated in different areas;
- Reduce energy consumption：According to the degree of pollution in different areas, the air volume can be adjusted in a targeted manner to reduce wind resistance, reduce the load of the fan, avoid energy waste, and reduce energy consumption.
- Protect equipment：Effectively removing smoke and dust can reduce equipment wear and extend the service life of the equipment; at the same time, a clean working environment can ensure cutting quality and improve product qualification rate.
Have A Questions?
If you have any questions about our products or services, feel free to reach out to customer service team. We've got preferential price and best-quality products for you.
Main Parts
Viation Aluminum Gantry
Aerospace grade aluminum light quality; High speed, good dynamic response,fast acceleration; Beam as a whole by the finite element analysis optimization of high rigidity; Lightweight design, durable
Z axis Ball Screw Transmission
Smooth movement:has a high efficiency than the sliding screw ,the required torque is only 30% or less. No backlash and high rigidity,using the Gothic full groove shape,the axial directly ,Shaft clearance can be adjusted to a minimum level and can be easily rotated.
Rail
The rolling guide wear is very small,can maintain accuracy for a long time. The friction is very small,the power loss is small;the heat generated during operation is extremely small,and it can run at high speed.
Servo Motor
The highest amplifier responsiveness,greatly shorter the settling time. High efficiency vibration suppression function ,greatly improves the follow-up performance,reduces the vibration during driving the vibration of the front part of the machine when stopped.
Gear
Longer service life, more stable, higher speed and higher reliability. It can ensure constant transmission ratio, can pass any angle between the two axis movement.
Water Chiller
Relative leading product technology(complete laboratory and performance testing means), product specifications and actual performance good consistency. With multiple after-sales office in china and abroad, product service is more real-time and reliable.
Technical Parameters
|
Model |
LX3015HCO Fiber laser cutting machine |
|
Working Area |
1500*3000mm |
|
Laser Power |
1kw-12kw |
|
Laser Wave Length |
1064nm |
|
Working Table |
Sawtooth |
|
Maximum Idle Running Speed |
120m/min |
|
Maximum acceleration |
1.5G |
|
Position Accuracy |
±0.02mm/m |
|
Repeat Positional Accuracy |
± 0.01mm |
|
Position Type |
red dot |
|
Power Consumption |
≤21 KW |
|
Working Voltage |
380V /50Hz |
|
Auxiliary Gas |
oxygen,nitrogen,air |
|
Working life of fiber module |
More than 100000 hours |
|
Cooling Type |
Water-cooling |
|
Work Environment |
0-45°C, Moisture 45-85% |
Product application
Widely used in: sheet metal processing industry, automobile manufacturing industry, electronic and electrical industry, machinery manufacturing industry, advertising and logo industry, kitchenware industry, aerospace, medical equipment, construction, decoration and other fields.
Shipbuilding Industry
Hardware industry
Handicraft industry
Fitness Equipment Industry
Electronics Industry
Construction Machinery Industry
Automotive Manufacturing
FAQs
1
Do you have CE document and other documents for customs clearance?
Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
2
If we are interested in your machine, how do we choose?
1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
Please tell us, then we can recommend the suitable machine to you.
3
How about warranty?
3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
4
Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running.
