Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient

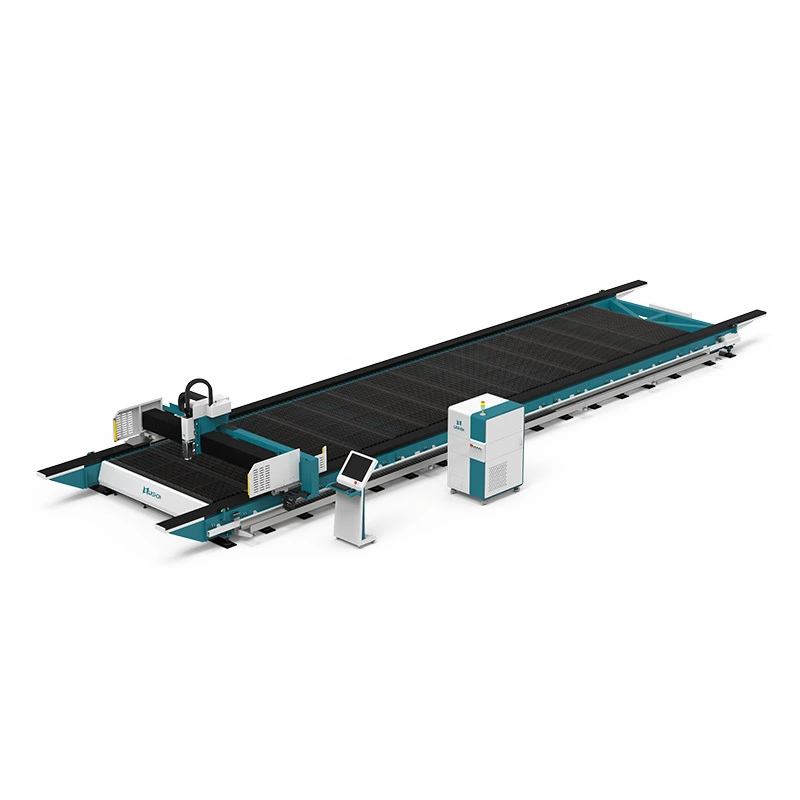

LX12025LD Ultra Large Format Fiber Laser Cutting Machine Metal Laser Cutting Machine Large Laser Cutter

    oops...!

    no product data.

    Go to homepage
    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 8

    PARAMETERS

    Model

    LX12025LD  Fiber laser cutting machine

    Working Area

    2500*6000mm

    Laser Power

    1000W-12000W ( Optional )

    Laser Wave Length

    1064nm

    Working Table

    Sawtooth

    Maximum Idle Running Speed

    120m/min

    Maximum acceleration

    1.5G

    Position Accuracy

    ±0.02mm/m

    Repeat Positional Accuracy

    ± 0.01mm

    Position Type

    red dot

    Power Consumption

    21 KW

    Working Voltage

    380V /50Hz

    Auxiliary Gas

    oxygen,nitrogen,air

    Working life of fiber module

    More than 100000 hours

    Work Environment

    0-45°C, Moisture 45-85%

    CUTTING THICKNESS

    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 9

    CUTTING SAMPLES

    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 10
    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 11
    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 12
    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 13

    CUTTING SPEED

    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 14

    ITEM SPECEFICS

    Steel Plate Weld Machine Frame

    It is welded by heavy steel plate, the current mainstream bed structure, high stability;

    Effect force annealing treatment, high mechanical strength, not easy to deform;

    Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;

    The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.

    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 15

    Aviation Aluminum Gantry

    It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 16

    Intelligent Autofocus

    The high efficiency cooling:
    Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.

    Chase the light aperture:
    Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

    Automatic focus:
    Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.

    High speed cutting:
    25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 17

    Transmission And Precision

    LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 18

    Transmission And Precision

    LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

    Metal Sheet Cutting Machine 12025LD Series Large Format is More Efficient 19

    LX6025F Sheet Metal Plate Fiber Laser Cutting Machine Application

    Application Materials:

    Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

    Application Industries:

    Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

    Aerospace Industry
    Aerospace Industry
    Automotive Manufacturing
    Automotive Manufacturing
    Construction Machinery Industry
    Construction Machinery Industry
    Shipbuilding Industry
    Shipbuilding Industry
    Hardware industry
    Hardware industry
    Handicraft industry
    Handicraft industry
    Fitness Equipment Industry
    Fitness Equipment Industry
    Electronics Industry
    Electronics Industry
    contact us for a quote!
    Please tell us which product you want to know or your production needs, we will choose the most suitable machine for you!
