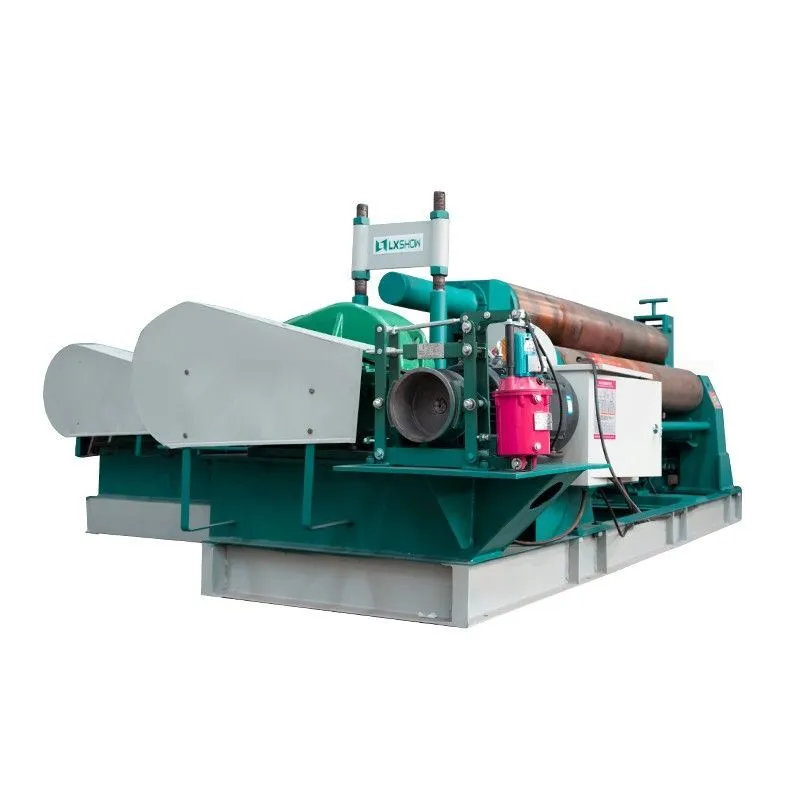

Mechanical Metal Plate Rolling Machine W16SNC-2000
|
Name |
Parameter |
|
Model |
W16SNC-2000 |
|
Pressure on upper roller |
100T |
|
Maximum width |
2000mm |
|
Roller working length |
2000mm |
|
Plate Yield Limit |
δs≤245Mpa |
|
Upper roll diameter |
Φ300 mm |
|
Bottom roll diameter |
Φ165mm |
|
Drive speed |
4m/min |
|
Drive motor |
15kw |
|
Hydraulic motor |
5.5kw |
|
Horizontal movement motor power |
2.2kw |
Working Roller
- 1. Hollow roller (for thinner materials, it is recommended to recommend less than 6 thick plates)
- 2. Solid roller (for thicker materials)
Screw
- The screw height adjustment mechanism is a mechanism that canadjust the height through a screw. The mechanism is composed of a screw and a nut.By rotating the screw,then utisdriven to move up and down,so as to realize the height adjustment of the working surface such as the workbench.
Hydraulic System
- Ensure that there is no leakage point in static ordynamic work,and achieve stable dynamic operation without shock, crawl. It is required that the valve group has large flow rate, small resistance, small pressure loss and low heat generation.
Hydraulic Motor
- Easy installation,easy adjustment,excellent performance,complete solutions
Reducer
- The lowest backlash.
- The maximum output torque.
- The highest torsion rigidity
- High efficiency high quality low noise,lift time lubrication
- High precision,longlife
Lifting Worm Assembly
- Lifting freely,flexible operation performance
Our Plate rolling machine application industriesteam
Construction industry, machinery industry, automobile industry, shipbuilding, boiler, aviation, hydropower, chemical industry and other fields; in addition, plate rolling machines are also suitable for power equipment production, metallurgy packaging and other industries, and can efficiently and conveniently bend metal plates to meet the specific needs of different industries.
