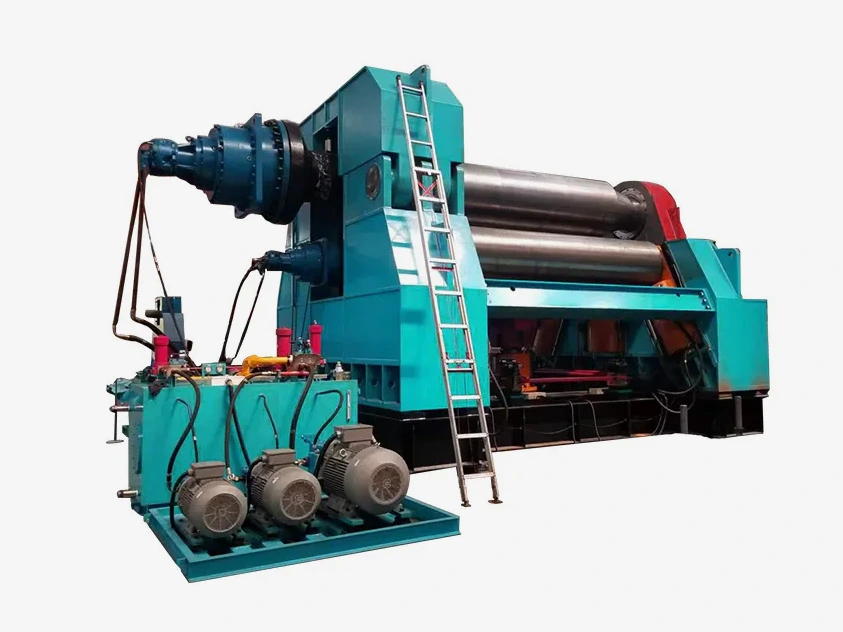

CNC Full Hydraulic Slash Four-roll Plate Rolling Machine
Parameter
No. | Name | Parameter |
1. | Structure type | Fully Hydraulic CNC Four-roll Plate Rolling Machine |
2. | Specifications | W12-12×1600 |
3. | Maximum coil thickness | T12*B1500*φ600（σs≤245MPa） T8*B1500*φ600（304Stainlesssteel） |
4. | Maximum pre-bending thickness | T8*B1500*φ600（σs≤245MPa） |
5. | Maximum coil width | 1500mm |
6. | Working length of roller | 1600mm |
7. | Remaining Straight Edge Thickness | ≤4timesplatethickness |
8. | Yield limit o frolled plate | 245MPa |
9. | Rolling speed | 4.5m/min |
10. | Upper roll diameter | Φ230mm |
11. | Bottom roll diameter | Φ220mm |
12. | Side roll diameter | Φ190mm |
13. | Roller | 1group |
14. | Roller movement | Hydraulic drive |
15. | Hydraulic system pressure | 16MPa |
16. | Roller Drive | Hydraulic motor+Planetary gearbox |
17. | Hydraulic system maximum working | 19MPa |
18. | Main hydraulic motor power | 7.5Kw |
19. | Working power | Three-phaseAC380V±20,50Hz±5Hz |
WorkRoll(42CrMo)
The upper and lower work rolls are made of high-strength roll steel(42CrMorollsteel),which is completed by forging,quenching and tempering,quenching,tempering,stress relief and precision lathe machining;
lStrictly guarantee the high contact strength of the work roll surface,There is no indentation on the surface of the roller when rolling the steel plate,which can meet the requirements of long-term rolling of the steel plate.
Screw
The screw height adjustment mechanism is a mechanism that canadjust the height through a screw. The mechanism is composed of a screw and a nut.By rotating the screw,then utisdriven to move up and down,so as to realize the height adjustment of the working surface such as the
workbench.
Hydraulic system
Ensure that there is no leakage point in static ordynamic work,and achieve stable dynamic operation without shock,crawl.It is required that the valve group has large flow rate,small resistance,small pressure loss and low heat generation.
Hydraulic motor
Easy installation,easy adjustment,excellent performance,complete solutions.
Reducer
The lowest backlash.
- The maximum output torque.
- The highest torsion rigidity
- High efficiency high quality low noise,lift time lubrication
- High precision,longlife.
Lifting worm assembly
Lifting freely,flexible operation performance
