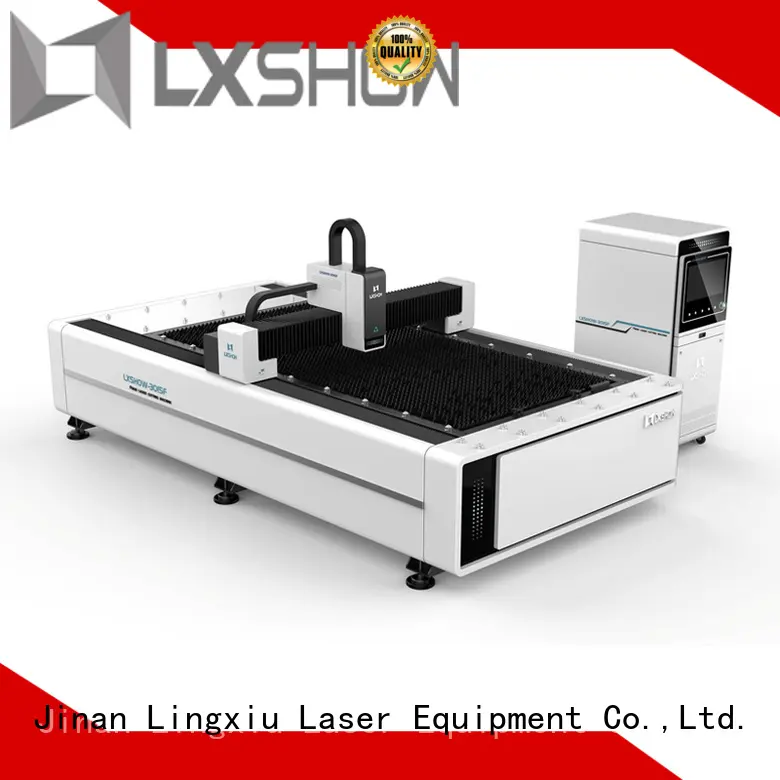

Sheet Metal Parts Laser Cutter/Fiber CNC Lazer Cutting
Specifications of Sheet Metal Parts Laser Cutter
High precision,smooth kerf,higher cutting efficiency
Non-contact cutting,no thermal deformation
Any graphics acceptable
Mechanical structure adopts gantry style, cross girder and lathe bed are made of welding structure
Its laser cutting CNC control system is easy to learn and simple to operate.
Its imported AC servomotor-driving system ball adopts screw -transmission and straight line-guiding to ensure the running speed and reliability of the system;
Its screws and rails adopt the fully enclosed protection device to avoid dust pollution, which improves the
lifetime of transmission parts and ensures its motion accuracy
Applicable of Sheet Metal Parts Laser Cutter
Applies to metals welding, cutting and drilling (such as carbon steel, stainless steel, alloy steel, aluminum and its alloy, titanium and its alloy, copper and its alloy, and nickel-Molybdenum alloy,. Also applicable to part of nonmetals, especially for processing sheet metal and the sheet panel.
Samples of Sheet Metal Parts Laser Cutter
Our factory
Parameter
Model | FLDJ1325 |
Laser Power | 1000W/ 2000w |
Laser Source | World Famous Germany Dlaser Fiber laser source |
Laser Type | Imported Fiber Laser |
Laser Technology | Germany Technology |
Working area | 1500*3000 mm |
Max. Cutting Thickness (Carbon Steel) | 1-16 mm |
Max. Cutting Speed | 0-12 Meters / Min (up to materials) |
Max. Location speed | 60m/min |
Laser wavelength | 1070nm |
Minimum line width | ≤0.1mm |
Location precision | ≤±0.05mm |
Re-location precision | ±0.02mm |
Max. moving speed | 100m/min |
Supporting Format | PLT, DXF, BMP, AI |
Power demand | 380V/50Hz |
Cooling Way | Water Cooling |
Worktable max. load | 1000KGS |
Transmission Method | Ball Screw Transmission |
Table-driven system | Japanese Imported Panasonic Servo Motor & Driving System |
Focus Method | Following and Automatic Adjust Focus |
Control Method | Offline Movement Control |
Control software | Perfect Laser Professional Laser Cutting Software |
Certificate
Our customer:
After sales
1.1.5 years quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge when if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery , operation disk was included.
Why philicam
1. Philicam product is widely used in almost all the materials you can think of.
2. Philicam company is specialized in CNC Router and laser machine manufacturing and selling .
3. Philicam machine with high precision and excellent reputation is the most reliable product you can choose.
4. Philicam company has all kinds of machines in store, the delivery time is much shorter than other companies.
5. Philicam company has international technical service office and provides 24 hours online services and technical supports for customers
Any problem,pls feel free to contact me.
Customer First
Service First
Quality First
Applicable Industry:
This machine is widely used in various industries such as advertising decoration,kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis,air-conditioner manufacturing,metal plate cutting,etc.
Applicable Materials:
This machine is mainly used for cutting metal plates such as stainless steel,cabon steel,galvanized plate,various alloy,etc.
Applicaion Show:
Metal spectacle frame,furniture plate cutting,MDF photo frame cutting,building model cutting,etc.
