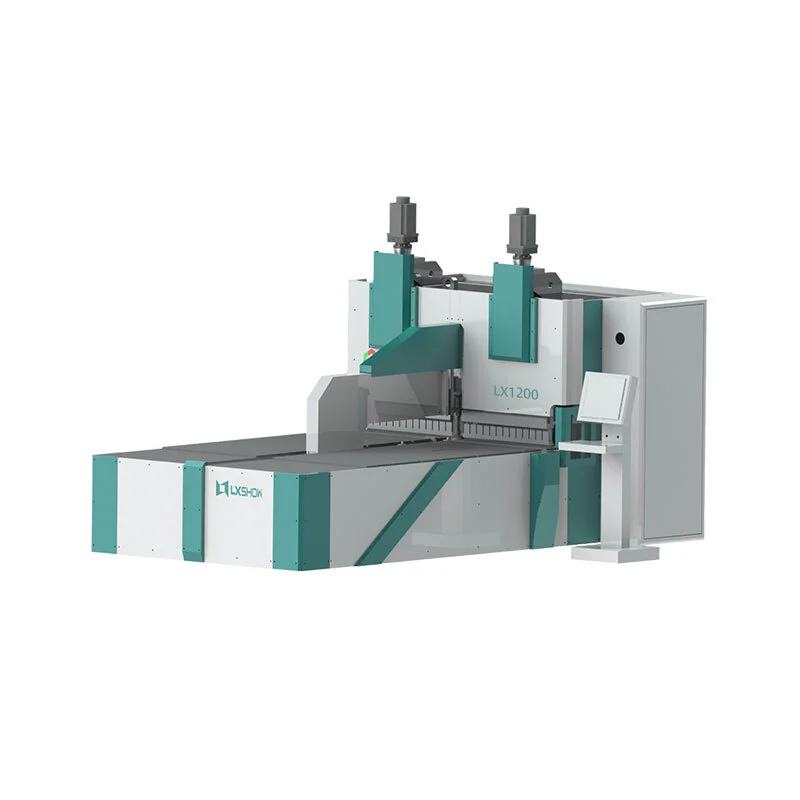

LXSHOW 1200/1600/2000/2500/3200mm Automatic Servo Electric Sheet Panel Metal Bender Flexible Bending Center
- Machine model：LX1200
- Bending length：1200mm
- Plate width：1200mm
- Bending height：170mm
- Bending dimensional accuracy：±0.1mm/m
- Angle accuracy：±1°/m
- System accuracy：0.001mm
- Voltage：380V 3 phase, others optional
- Machine size：4300*1800*2300mm
Host computer numerical control system
- Multi-axis linkage control system: A fully closed-loop multi-axis Ether CAT bus control system, up to 64 axes, with seamless system integration.
- Advanced commands: Users can implement complex work piece control through programming according to their needs.
- Polygonal positioning system: A polygonal positioning system that allows free switching between multiple positioning modes.
- Off-center load detection system: Visually displays the dual-axis off-center load situation, ensuring bending accuracy.
- Graphical visualization error-detection programming: Users only need to input bending dimensions and commands; the system automatically completes the programming and displays the forming results, which users can compare to ensure consistency.
- Automated production line interface: Can interface with upstream and downstream production equipment to achieve automated production.
|
Machine model |
LX1200 |
LX1600 |
LX2000 |
LX2500 |
LX3200 |
|
Bending length |
1200mm |
1600mm |
2000mm |
2500mm |
3200mm |
|
Plate width |
1200mm |
1250mm |
1500mm |
1250mm |
|
|
Bending height |
170mm |
||||
|
Min. Bending thickness |
0.3mm |
||||
|
Minimum molding size of four sides |
140*260mm |
160*280mm |
|||
|
Minimum forming size of two sides |
140mm |
160mm |
|||
|
Minimum arc radius |
2mm |
||||
|
The fastest continuous bending speed |
0.2S/bending |
||||
|
Distance between upper and lower cutters |
190mm |
||||
|
Bending angle |
0-180° |
||||
|
Bending dimensional accuracy |
±0.1mm/m |
||||
|
Angle accuracy |
±1°/m |
||||
|
System accuracy |
0.001mm |
||||
|
Total axis |
15 |
||||
|
Operating noise |
50 decibel |
||||
|
Average power |
1.5kw |
2kw |
2.3kw |
2.5kw |
3kw |
|
Voltage |
380V 3 phase, others optional |
||||
|
Machine size |
4300*1800*2300mm |
4700*2200*2300mm |
4500*2200*2300mm |
000*2800*2300mm |
5800*4200*2300mm |
Application
Bending machines are widely used in the metal processing industry, mainly used to bend metal sheets into various shapes, suitable for automobiles, aerospace, ships, metallurgy and other fields. For example, in aerospace, bending machines are used to manufacture aircraft parts; in automobile manufacturing, they are used to produce body structural parts; in shipbuilding, they are used for bending processing of hull structures.
