Coil Laser Cutting Machine LX3015FL Revolutionize Your Sheet Metal Cutting

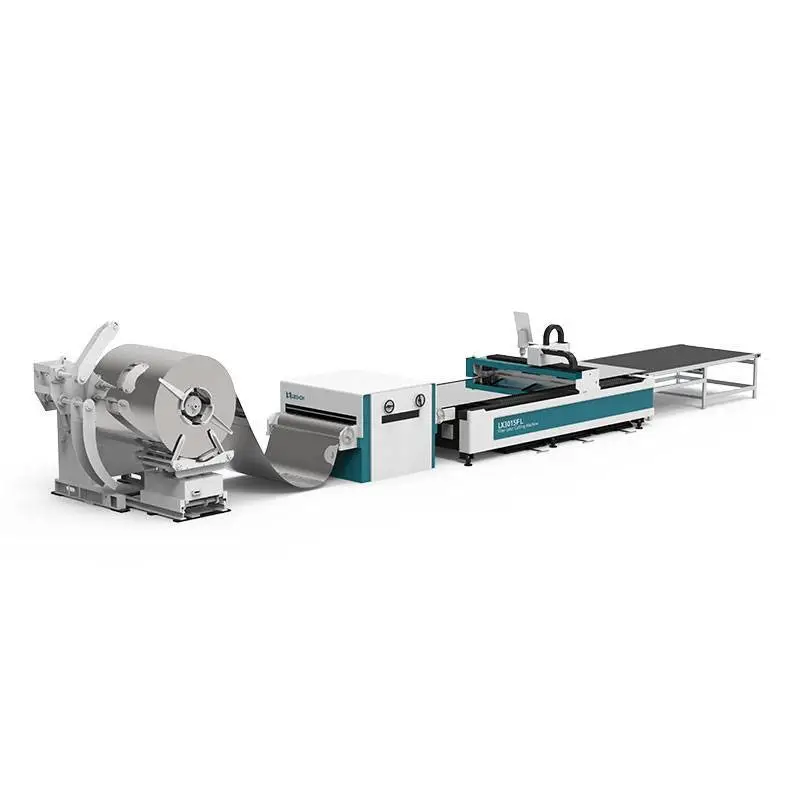

LX3015FL Auto Feeding+Dual Use Coil Metal Fiber Laser Cutting Machine
Fully Automatic Steel Coils Laser Metal Cutter With Decoiling & Levelling
Model Number:LX3015FL
Lead time:15-35 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Paypal;L/C.
Machine Size:(About)(5480+8034)*4850*(2650+300)mm
Machine weight:10000KG
Brand:LXSHOW
Warranty:3 years
Shipping:By sea/By land
Lead time:15-35 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Paypal;L/C.
Machine Size:(About)(5480+8034)*4850*(2650+300)mm
Machine weight:10000KG
Brand:LXSHOW
Warranty:3 years
Shipping:By sea/By land
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Solutions For a Whole Processing System
- Coil cutting machine features with integration of automatic uncoiling, leveling, feeding and cutting to ensure the continuity of processing and production, improving processing efficiency. Flow line production and batch processing reduce labor intensity and save manpower. Fult enclosure design with compact structure, higher safety and environmental protection during operation; flexible processing and application.
Processing Parts Range
- Coil outer diameter:Φ1200-Φ2000mm
- Coil inner diamete:Φ508 Φ610mm
- Dimensions:3000mm*1500mm
- Automatic feeding of coil material, continuous cutting and batch
- processing improve processing efficiency and reduce labor intensity
Uncoiling parts
- The uncoiler unwinds the roll material, and the width of the loaded coil material is 600-1250mm; the load is 10000kg.
Leveling parts
- leveling feeder leveling the material, adjustment accuracy of correction amount: +0.01mm
Automatic Unloading, Intelligent Palletizing
- Adopt belt conveyor and adjustable width limiting device; the sheet material after processing is automatically transmitted to the unloading mechanism and then palltized by lifting mechanism according to the material width. Finished materials need no manual sorting any more, centralized sorting improves the working efficiency and saves labor cost.
Cast aluminum beam
- The beam has been artificially aged, solution treated, and finely processed, and has good integrity, rigidity, surface quality, toughness, and ductility. The light weight and strong rigidity of aluminum alloys are conducive to high-speed movement during processing, and high flexibility is conducive to high-speed cutting of various graphics on the basis of high precision. Lightweight beams can make the equipment run faster, improve processing efficiency, and ensure processing quality.
Automatic unloading
- Gear-rolling conveying structure, vacuum suction cup automatic unloading of finished products, automatic stacking of finished products, saving labor and improving efficiency.
|
Model |
LX3015FL |
|
|
Working Area |
3048mm*1524mm |
|
|
Laser Power |
4000w/3000w/2000w/1500w/1000w |
|
|
X/Y-axis positioning accuracy |
0.03mm |
|
|
X/Y-axis repositioning accuracy |
0.02mm |
|
|
X/Y-axis Max. linkage speed |
140m/min |
|
|
Leveling accuracy |
≤1.5mm/㎡ |
|
|
Processing plate thickness |
0.8~3mm |
|
|
Coil size |
Coil outer diameter |
φ1200～φ2000mm |
|
Coil inner diameter |
φ508、φ610mm |
|
|
Coil weight |
≤20t |
|
|
Leveling speed |
≤20m/min |
|
Application Materials
- Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Application Industries
- Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Shipbuilding Industry
Automotive Manufacturing
Construction Machinery Industry
Handicraft industry
Electronics Industry
Aerospace Industry
Hardware industry
Fitness Equipment Industry
