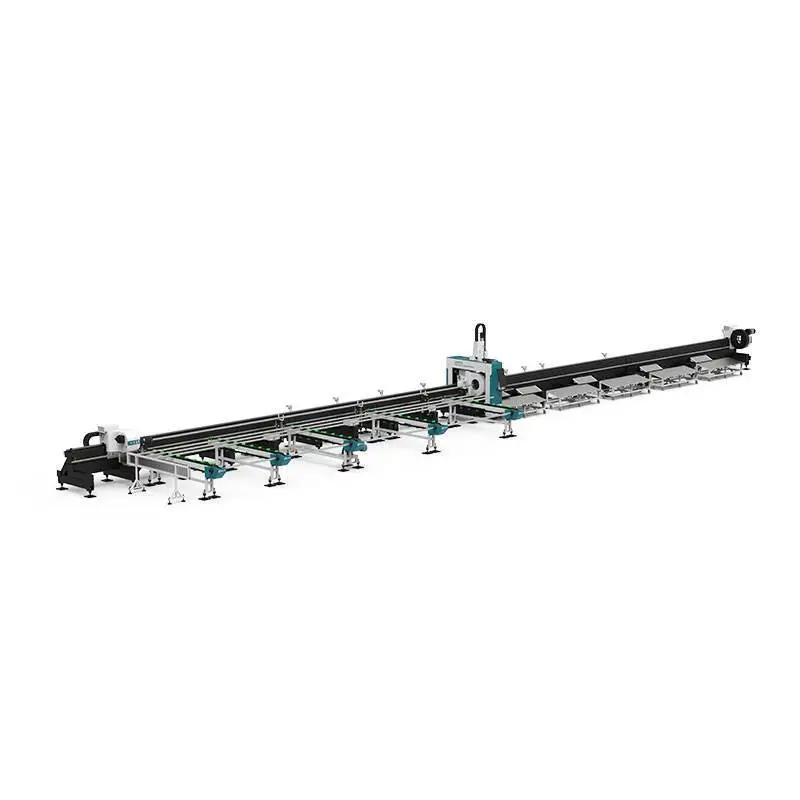

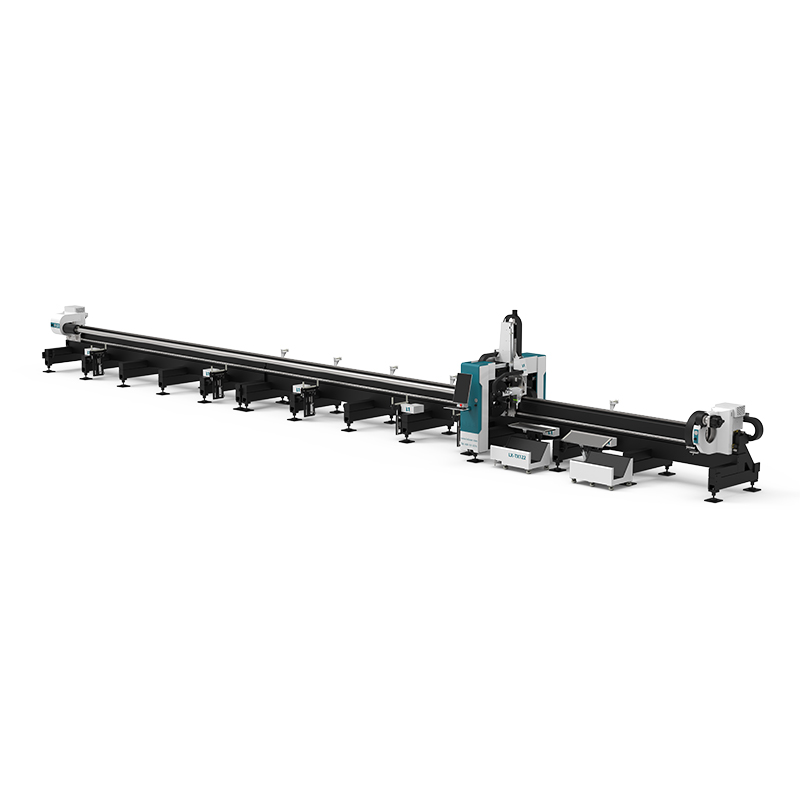

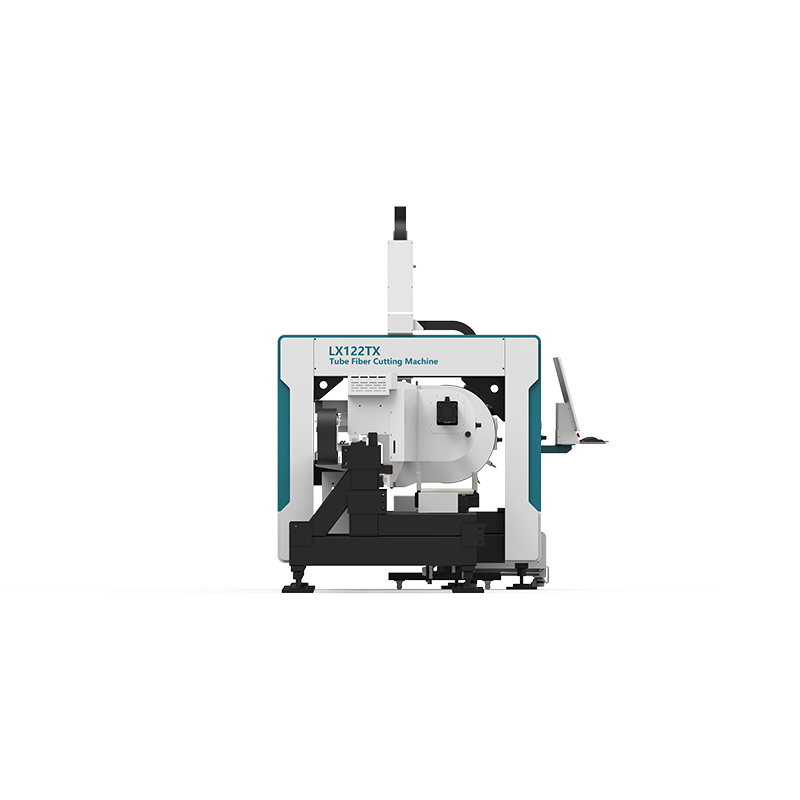

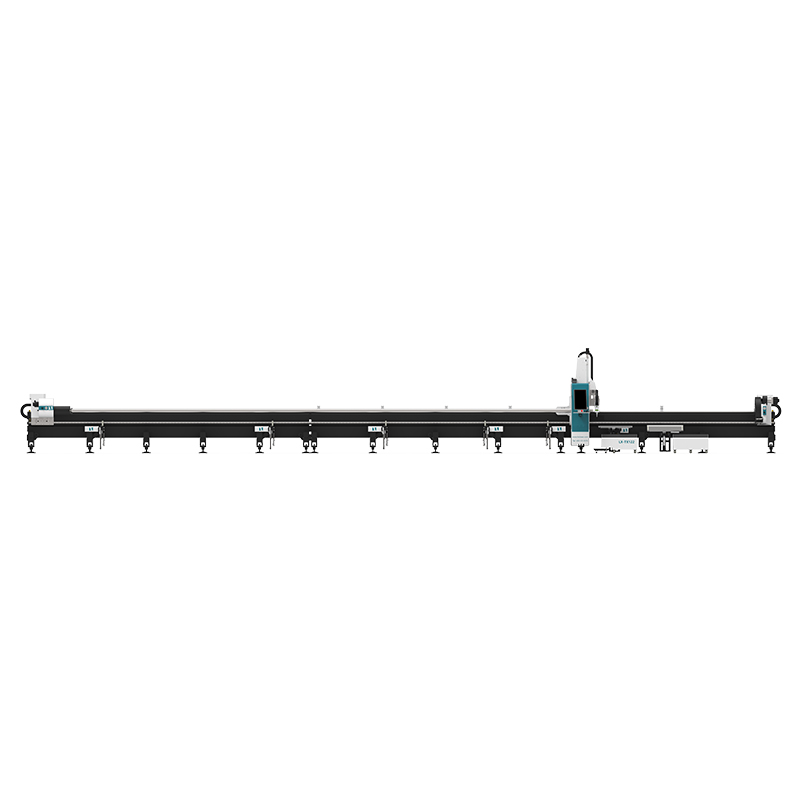

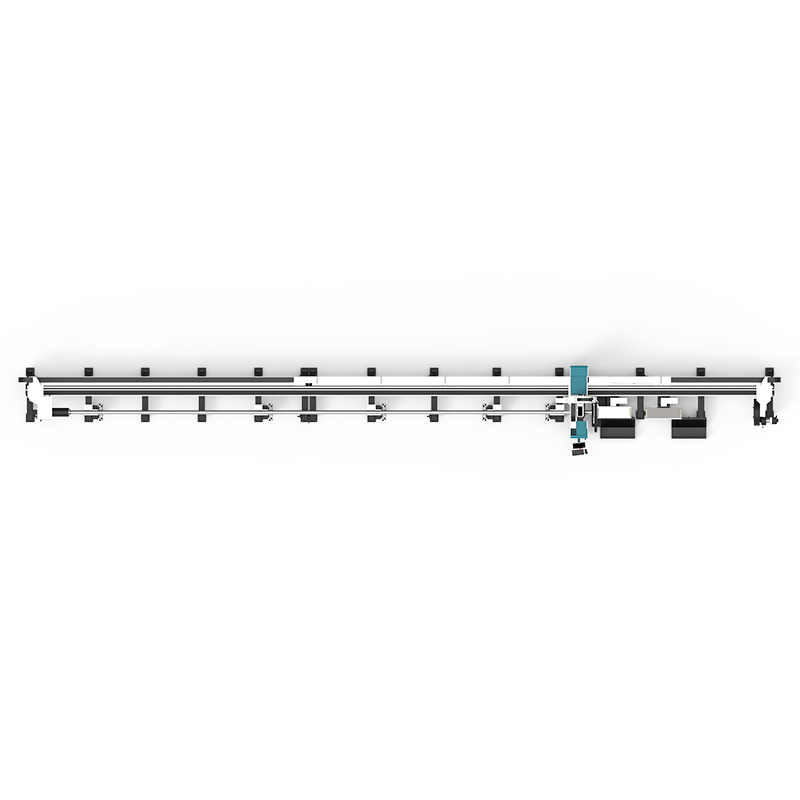

LX122 Pipe Fiber Laser Cutting Machine Large Size Laser Cutter For Long Metal Tubes
Model Number: LX122TX
Laser Power:3000W-12000W
Lead time:25-40 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Paypal;L/C
Brand: LXSHOW
Working Voltage:380V /50Hz
Warranty:3 years
Shipping: By sea/By land
The Segmented Rectangle Laser Tube Welded Bed
Good rigidity, high precision, no deformation during the life cycle;
Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance；
Pneumatic Chunk Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)
Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable.
The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
