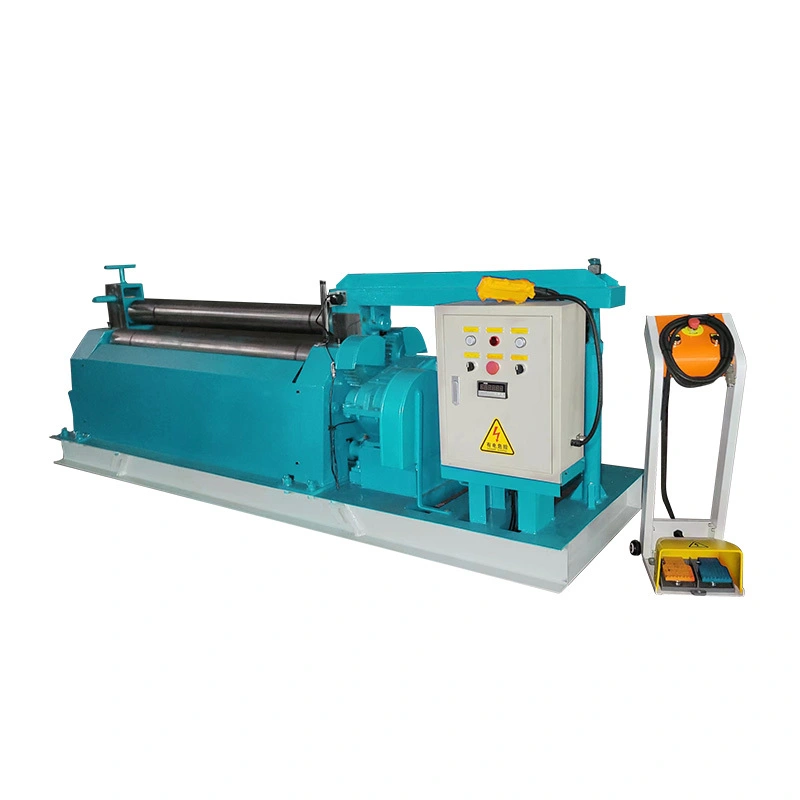

Hollow Three-Roller Mechanical Plate Rolling Machine W11-12x2200
The 3 roll plate bending machine is a kind of equipment that uses work rolls to bend and form the sheet metal. It can form parts of different shapes such as cylindrical parts and conical parts. It is a very important processing equipment.
5.0
Warranty:
3 years
Shipping:
by sea/ by land
Payment Term:
T/T;Alibaba trade assurance;West Union;Paypal;L/C
Model Number:
W11-12×2200
Lead time:
30 days
Brand:
LXSHOW
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Parameters
Model | W11-12×2200 |
Work roll | Hollow work roll(high temperature quenching treatment) |
Maximum coil thickness | 12mm |
Maximum width | 2200mm |
Roller working length | 2230mm |
Plate Yield Limit | δs≤245Mpa |
Upper roll diameter | Φ245mm |
Bottom roll diameter | Φ219mm |
Main motor power | 7.5kw |
Reducer | JZQ-350 |
Dimensions | 2.8×1.0×1.0(m) |
Hollow Work Roll
- The up and down roll movement of the work roll completes the coiling action.
Screw
- The screw height adjustment mechanism is a mechanism that can adjus tthe height through a screw.
- The mechanism is composed of a screw and a nut.By rotating the screw, the nut is driven to move up and down, so as to realize the heighta djustment of the working surface such as the workbench.
Main motor
- Easy installation,easy adjustment, excellent performance,complete solutions.
Reducer
- The lowest backlash.
- The maximum output torque.
- The highest torsion rigidity
- High efficiency high quality low noise,lift time lubrication
- High precision,long life.
Application
- Application industry:Aerospace, shipbuilding, energy industry, wind tower industry.
- Application materials:carbon steel, stainless steel, copper, aluminum, high carbon steel and other metals
Wind Tower Industry
Shipbuilding
Aerospace
Energy Industry
