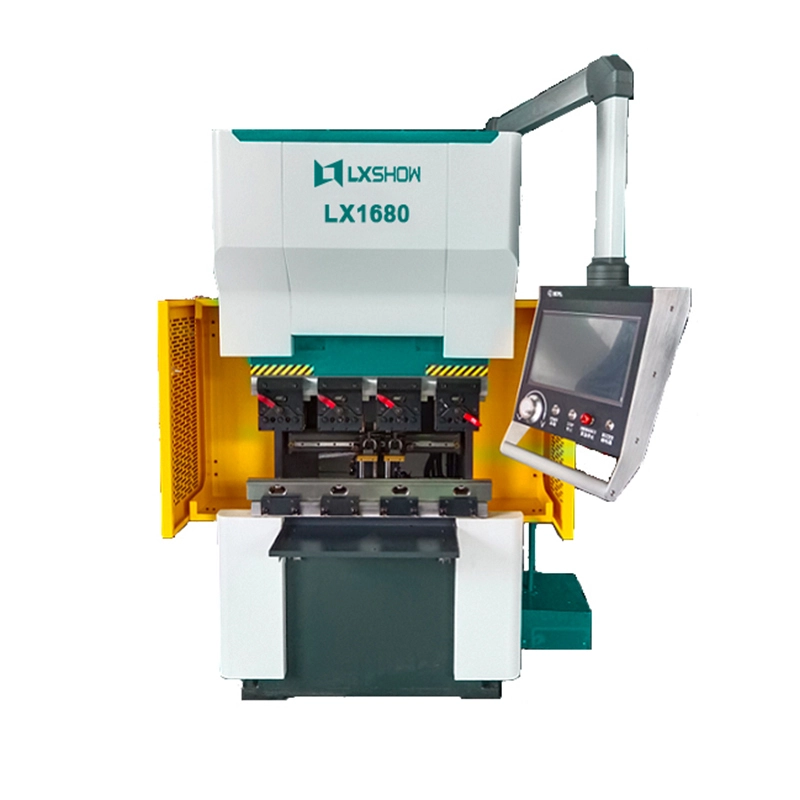

High Quality Full Electric Servo LX-1680 3Axis Bending Machine
Dimension (L*W*H)mm：1705*1135*2045mm
CBM(m3)/set：3.96m^3
Weight ：1700KG
Brand：LXSHOW
Payment：Alibaba Trade Assurance, T/T, Western Union, L/C
After service ：3 years
Machine Features
- 1680：represents the bending pressure of 16 tons；the maximum bending length of 800mm
- The opening height of the upper and lower table is 420mm,the standard 3 axis，the automatic angle(depth) of the upper table, the automatic bending size, the positioning up and down, front and back are automatic.
CNC operating system
- A. Full closed loop control.
- B.System hardware：
Power supply is 24V,15W
CPU low-power consumption，1.0 GHz Intel processor
Full color LCD capacitive touch screen (15 inch TFT)
Ram 4 GB
USB/CAN adapter, IM baud rate, high-speed serial connection
USB 2.0*4, USB3.0*1
Network adapter 1GB Ethernet （RJ45 port）
- C.System advantages：
The new generation of controller, the operation interface is friendly, simple and easy to use
Support large arc function
Support Angle input, input is out
Internet of Things Support
Support for external standard USB camera connection monitoring
Powerful diagnostic function and curve detection function
Advanced Y-axis control algorithm can control the closed-loop system
All-electric servo control system
- Adopt all-electric servo pump control system, energy saving and environmental protection, full closed-loop control, the same design concept as Japanese bending machines.
Machine frame processing
- The frame is welded by the left and right side panels, lower panels, with strength and rigidity.
- After strict heat treatment to eliminate stress annealing welding internal stress,so the machine bed has high precision and good stability.
- The production process of the frame is all operated by the company itself,which can strictly control the quality.
Bending mold
- Upper and lower tooling can be installed with multiple short molds splicing or the whole length mold installation, with high precision, good interchangeability, easy assembly and disassembly.
- It is completely universal and interchangeable with the molds used in the bending machine produced by AMADA company.
Back barrier Back gauge
- The standard configuration is three-axis (X, Y ,R)
- four-axis (Y1 Y2 X, R), six-axis (Y1 Y2 X, R,Z1,Z2 ) can be selected according to different needs of customers
Wear-resistant Quick Clamp
- The inner side of the CNC quick fixture is equipped with wear-resistant rubber strips, which are easy to clamp when installing the bending machine mold, without loosening, and do not drop the tool, which greatly shortens the adjustment time for clamping the upper mold.
Main motor
- Servo motors are high quality, innovative and efficient.
X axis Linear Rails and Ball screw transmission
- To guarantee running precision
Foot pedal switch
Quality Inspection
Parameter
| Nominal force (tons) |
16 |
|
Bending length（mm） |
800 |
|
Slider stroke（mm） |
150 |
|
Height of opening between top and bottom（mm） |
420 |
|
Main motor power（KW） |
7.5 |
|
Rear stock motor power（KW） |
0.4 / 0.75 |
|
Post positioning repeat accuracy（mm） |
±0.01 |
|
Top table position repeat accuracy（mm） |
±0.005 |
|
Bending angle accuracy |
±0.3° |
|
Speed of rise (mm/s) |
150 |
|
Descent speed (mm/s) |
150 |
|
Bending speed (mm/s) |
0-30 |
|
Machine weight（Ton） |
1.7 |
Full Electric Press Brake Bending Machine Application
Full Electric Press Brake can be used to shape metal sheets into different shapes in various sizes. It can bend non-ferrous metal, ferrous metal sheet, suitable for various industries requiring metal processing, such as decoration manufacturing, automobile and ship manufacturing, aerospace manufacturing, etc.
