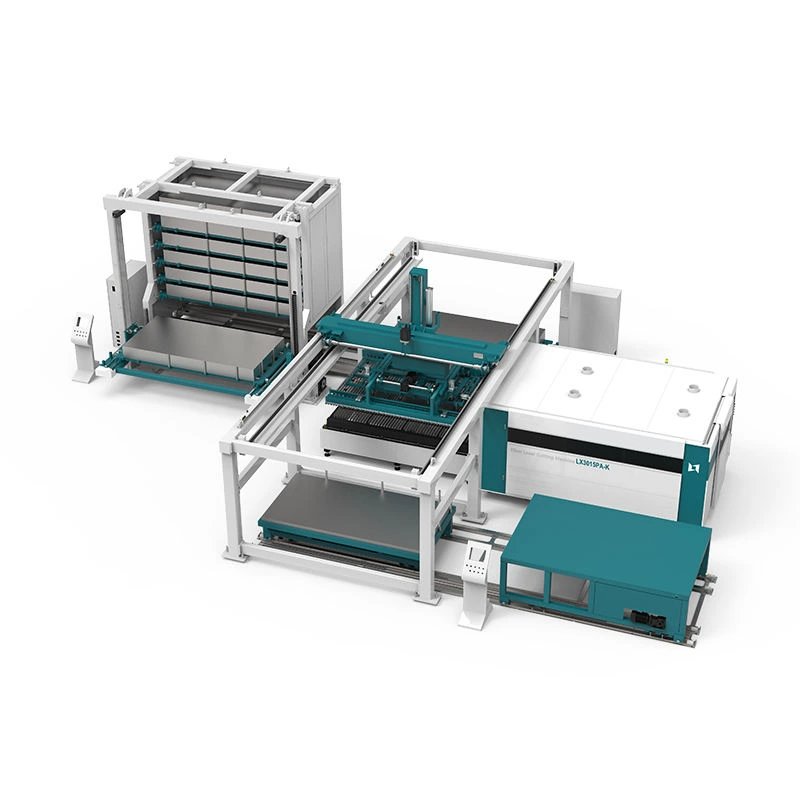

Fully Automatic Servo CNC LX3015PA-K Series High-Precision Fiber Laser Cutting Machine
- Model Number: LX3015PA-K
- Lead time: 35 working days
- Payment Term: T/T;Alibaba trade assurance;West Union;Paypal;L/C.
- Machine Size:(About) 4967*8817*2440mm
- Brand: LXSHOW
- Warranty: 3 years
- Shipping: By sea/By land
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
afety and Environment Protection
- With a fully enclosed design;
- The observation window adopts an European CE Standard laser protective glass;
- The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;
Monitoring system
- Real-time observe the machine running through the panel.
Exchange Table
- • It adopts an up and down exchange platform;
- • The converter is responsible for controlling the exchanging motor;
- • The machine is able to finish the platform exchanging within 15s.
Brand New Cast Aluminum Beam
- It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding.
- After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.
- Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
The Segmented Rectangle laser Tube Welded Bed
- The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.
- Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
Intelligent Autofocus
- The high efficiency cooling:Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
- Chase the light aperture:Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
- Automatic focus:Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
- High speed cutting:25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Independent Control Cabinet
- Dust-proof:All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
- Automatic Thermostat:The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.
Transmission And Precision
- LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Japan THK Rails.
- The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G.
- The working life is up to more than 15 years.
Application Materials
- Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Application Industries
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc
Aerospace Industry
Automotive Manufacturing
Handicraft industry
Fitness Equipment Industry
Electronics Industry
Construction Machinery Industry
Hardware industry
Shipbuilding Industry
Premium OEM Factory
- We have 21 years of manufacturing experience.
- The factory price is sold directly,support OEM&ODM.
- The products are strictly inspected to ensure good quality.
- Support the visualization of the whole production process.
- All the machine passed CE certification.
Offline Exhibitions
- We will participate in exhibitions around the world so that local customers can see and learn about our machines.
- Free technical guidance will also be provided during the exhibition period.
- You can follow our homepage and visit your nearest exhibition to experience our machines!
Professional After-sales Service
- We provide free training and free samples .
- 3-year warranty for the laser cutting machine.
- Machine installation instructions and remote guidance.
- Door to door maintenance within 2 days.
