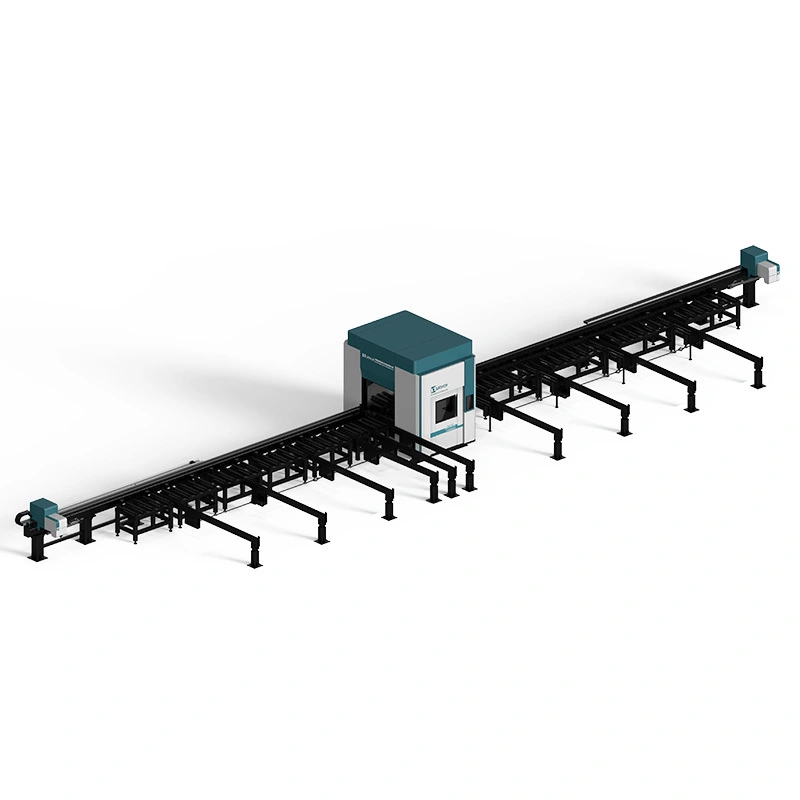

Fiber Laser Cutting Machine for Professional Cutting of H Steel Profiles LXSHOW LX650FBHGA Series
Model: LX650FBHGA Series
Power: 6KW-20KW
Size: 3000mm*12000mm(about)
Delivery time: 30-45 working days
Payment terms: T/T; Alibaba Trade Assurance; Western Union; Paypal; L/C
Machine weight: 4880KG
Brand: LXSHOW
Warranty: 3 years
Transportation method: By Sea/By Land
|
Model |
LX650FBHGA Fiber laser tube-cutting machine |
|
Max .outside diameter of round Tubes(mm) |
H-shaped steel range: 100mm≤Width≤1000mm; |
|
Laser Power |
6000w-20000w |
|
"y" axis single feeding length |
1750 mm |
|
"z" axis adjustment range |
850 mm |
|
"x" axis adjustment range |
12000mm |
|
Maximum Idle Running Speed |
120m/min |
|
Maximum acceleration |
1.5G |
|
Position Accuracy |
≤0.5mm/m |
|
Repeat Positional Accuracy |
± 0.05mm |
|
Position Type |
red dot |
|
Working Voltage |
380V /50Hz |
|
Auxiliary Gas |
oxygen,nitrogen,air |
|
Working life of fiber module |
More than 100000 hours |
|
Work Environment |
0-45°C, Moisture 45-85% |
Heavy duty machine frame
- Heavy duty machine frame, machine frame weight can reach to 3000KG, ensure good stability, high precision and long life.
rails
- The rolling guide wear is very small,can maintain accuracy for a long time.
- The friction is very small,the power loss is small;the heat generated during operation is extremely small,and it can run at high speed.
Controller
- Controller is designed for sheet metal processing industry launched a full-featured open loop control system.
- Easy installation, easy adjustment, excellent performance, complete solutions.
- Automatic side patrol function, automatic obstacle avoidance function, auto nesting function for free.
laser generator
- Famous laser brand all over the world
- High electronic-optical conversion efficiency, good beam quality, wide modulation frequency, high reliability, long life and maintenance-free.
- The center wavelength is 1080nm+-5.
servo motor
- The highest amplifier responsiveness,greatly shorter the settling time.
- High efficiency vibration suppression function ,greatly improves the follow-up performance,reduces the vibration during driving the vibration of the front part of the machine when stopped.
auto focus laser cutting head
- Famous laser cutting head.
- Laser head autofocus adjustment, which is suitable for 3kw and over it.
- Excellent cutting control ability
