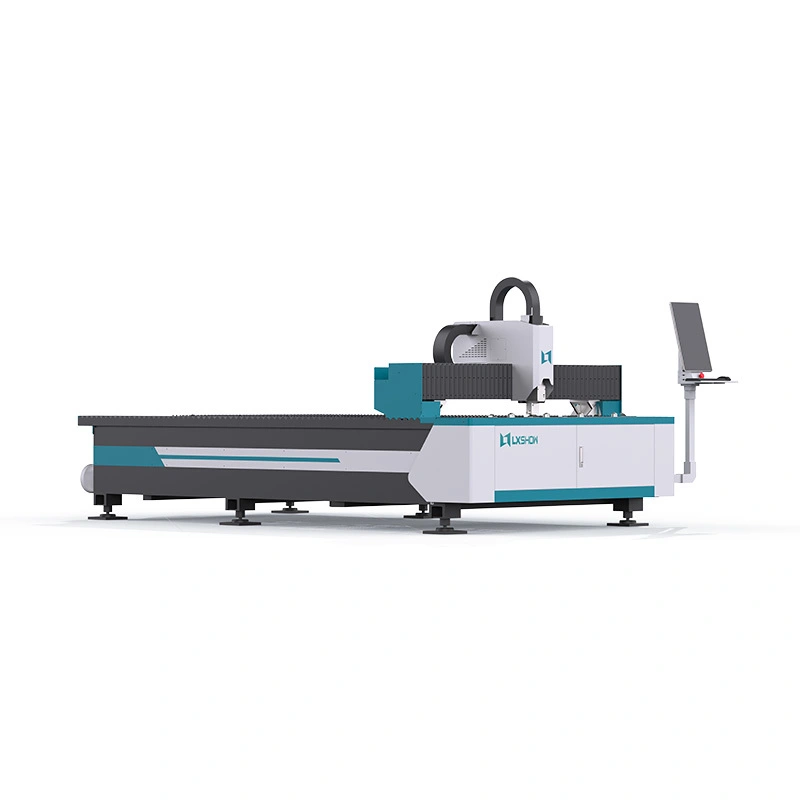

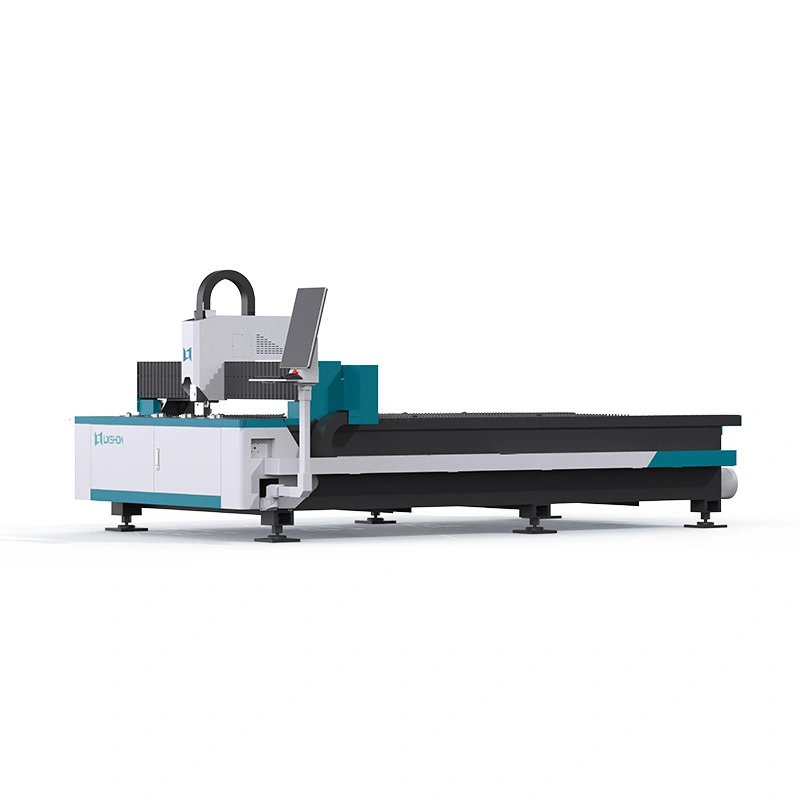

Economical 2025 New LX3015FA Fiber Laser Cutting Machine for Sheet Metal
- Model Number:LX3015FA
- Power:1kw-3kw
- Machine Size:4600*2800*1700mm (About)
- Machine weight:2250Kg (About)
- Lead time:15-25 working days
- Payment Term:T/T;Alibaba trade assurance;West Union;Paypal;L/C.
- Brand:LXSHOW
- Warranty:3 years
- Shipping:By sea/By land
|
Model |
LX3015FA |
|
Working Area |
1500*3000mm |
|
Laser Power |
1000W-3000W |
|
Laser Wave Length |
1064nm |
|
Working Table |
Sawtooth |
|
Cutting Speed |
45m/min |
|
Maximum acceleration |
0.6G |
|
Position Accuracy |
±0.05mm/m |
|
Repeat Positional Accuracy |
±0.02mm |
|
Position Type |
red dot |
|
Working Voltage |
380V /50Hz |
|
Auxiliary Gas |
oxygen,nitrogen,air |
|
Working life of fiber module |
More than 100000 hours |
|
Work Environment |
0-45°C, Moisture 45-85% |
Heavy duty machine frame
- It is made of 6mm thick steel plate welded, combined with mortise and tenon structure, which greatly enhances the rigidity of the machine tool, effectively reduces vibration and improves cutting accuracy.
Aviation aluminum gantry
- Aerospace grade aluminum light quality
- High speed, good dynamic response,fast acceleration
- Beam as a whole by the finite element analysis optimization of high rigidity
- Lightweight design, durable
Sawteeth table（5mm thickness blade）
- Thickening the blade can enhance the sturdiness and durability of the blade. Thicker blades usually have higher pressure resistance and stability, can better cope with shock and vibration during cutting, and reduce the risk of blade breakage and deformation.
Z axis ball screw transmission
- Smooth movement:has a high efficiency than the sliding screw.
- No backlash and high rigidity,using the Gothic full groove shape,the axial directly ,Shaft clearance can be adjusted to a minimum level and can be easily rotated.
Anti-burning function (optional)
- Effectively reduce the surface temperature of the equipment and improve operational safety.
Application Materials
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron,Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Application Industries
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
