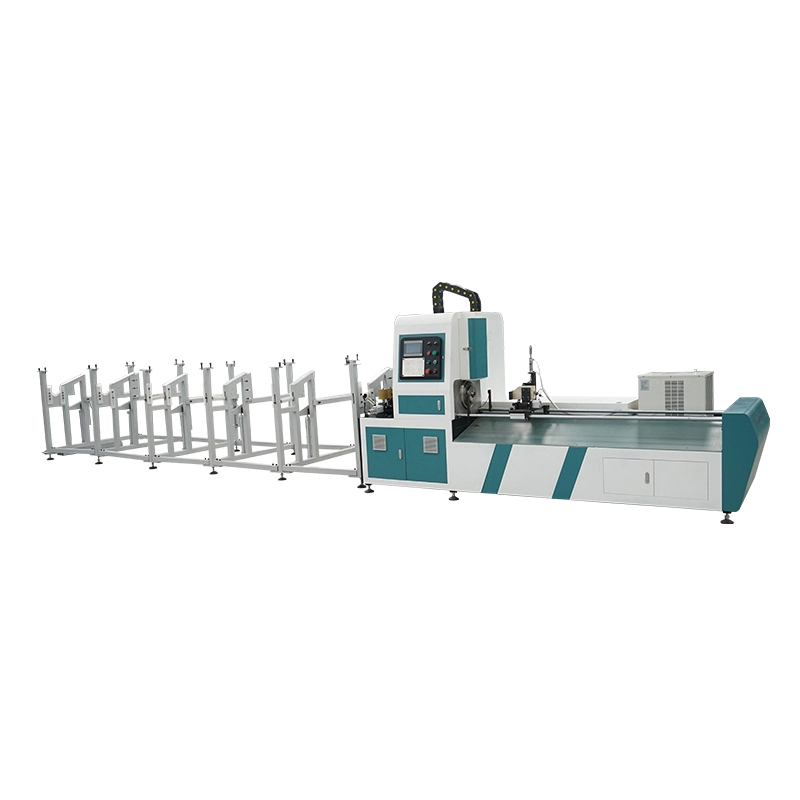

Cheapest Simple Tube Pipe metal steel Fiber laser cutting machine LXSHOW TJ Series
| Model | TJ |
| Laser Power | 1000/1500/2000/3000W |
| Length of laser wave | 1070nm±5nm |
| Type of Laser | Single mode |
| photoelectric conversion efficiency | 30% |
| Work Mode | Continuous light |
| Power range | 5-95% |
| Power Unstabilit | 2% |
| Transmission fiber core | 25um-50um |
| Length of Fiber | 10m |
| Cooling way | Water cooling |
| Water chiller model | 1.OP/1.5P/2.0P |
| Cooling water temperature | 20-25℃ |
| Power | AC 220V±10% AC380±10%，50/60Hz |
| Temperature of work environment | 10~35℃ |
| Humidity of work environment | ≤95% |
Regarding Laser generator,we use world famous brand IPG,Nlight,Raycus,Max,JPT and so on as your requirements. Fiber laser has photoelectric conversion efficiency high to 30%.We can provide 1000-3000w.The life span of Fiber laser reach 100,000 hours (20-30 years use)
Automatic Loading Tube System
Automatic Loading Tube System improve work efficiency. The tube diameter range:10-42mm. Length 10-1800mm.Thickness:0.2-3mm.Cutting speed:2500-3500 Pcs/H
Intelligent Autofocus
The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Most Highly Cost Effecitve
Function Simple with cheap Price,suitable for round pipe cut off .Directly adjust tube length,Request is not high to operators,General workers can finish it.
