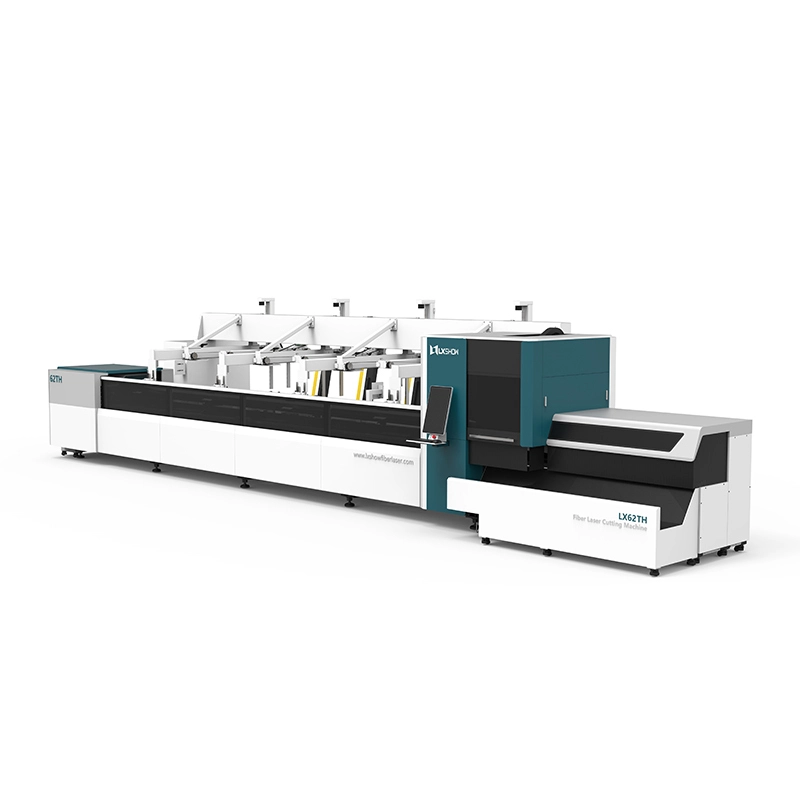

Automatic Loading and Unloading Square and circle tube LX62THA Series Metal pipe Fiber laser cutting machine

1. Semi-enclosed design, equipped with automatic lifting doors, which is convenient and at the same time guarantees the safety of workers

2. Heavy-duty welded bed, it can meet the high-speed operation of the machine without shaking

3. The front end of the machine is surrounded by design to improve the dust removal effect

A  Double exhaust system to ensure fume extraction effect, matching front and rear chuck, step by step, level processing.

The rear chuck equipped with a waste collection system.

B  Follow-up support component system. During the cutting process, it can be ensured that the support frame can always follow the pipe to prevent pipe cutting errors caused by pipe deformation.

The front end is equipped with front, rear, left and right dual follow-up modules to ensure cutting accuracy, and automatic tilting and blanking settings to prevent pipe scratches.

C The machine is equipped with Bochu special chuck, which has better dynamic performance, speed can reach 80r/min, acceleration can reach 1.5G
