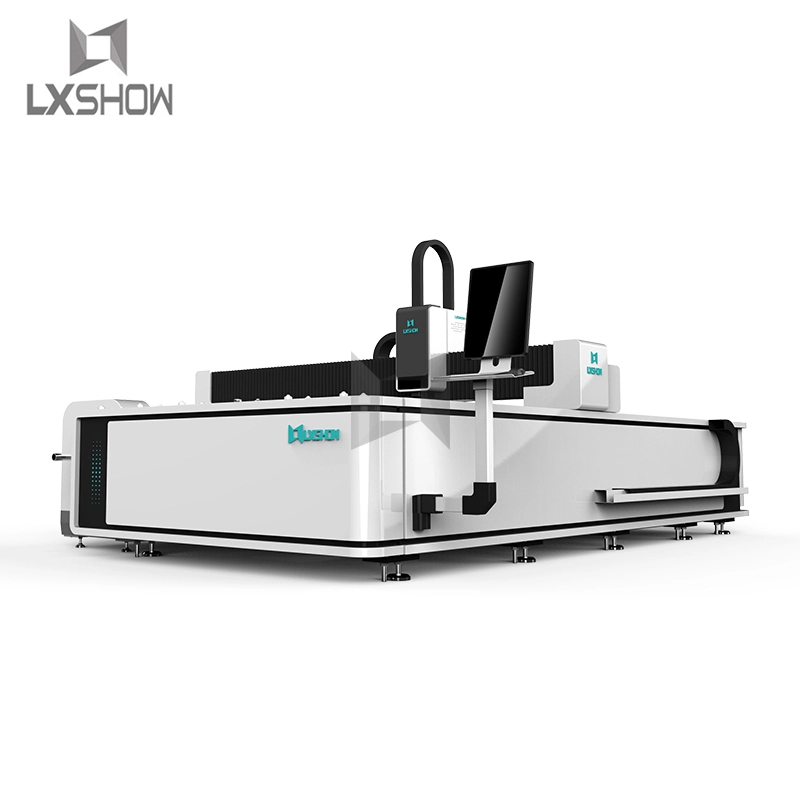

Tube and sheet fiber laser cutting machine price fiber laser tube cutter
MACHINE INDICATE
MACHINE PARTS
APPLICATION AND SAMPLES
APPLICATION
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Application Industries:
Soullon Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
CHARACTURE
PRODUCT PARAMETER
1 | Machine Name | 1500W 2200W 3300W High Power Metal Plate Fiber Laser cutting machine with exchange table LXF3015J |
2 | Model | LXF3015R |
3 | Laser machine cutting area | 3000x1500mm (Other size can be customized,such as 4500x1500/6000x1500/6000x2000mm) |
4 | Tube Cutting Range | Tube diameter range:20-200mm Tube length:6000mm (Other size can be customized,detailed confirmed with sales) |
| 5 | Fiber Laser Power CO2 Laser Power | 500w/750w/1000/1500/2200/3300/4000/ 6000/8000/12000/25000W |
6 | Laser wave length | 1064nm |
7 | Transmission system | Gear + rails |
8 | X.Y axis location accuracy | ±0.01mm |
9 | X.Y axis repeat location accuracy | ±0.01mm |
10 | X.Y axis max moving speed | 30m/min |
11 | Max cutting speed | 1--30m/min(it will according to metal material and laser power) |
12 | Cutting thickness | Detailed in the following cutting thickness |
13 | Application Material | Metal sheet |
14 | Advantages | >Excellent beam quality |
15 | Gross weight | 6500KG(About) |
16 | Net weight | 6250KG(About) |
17 | Machine size | Rotary size:8000*1600*1150mm Machine size(without rotary): 4160*2200*1980mm Detailed machine size will be according to detailed configuration.this size for your reference. |
| 18 | Transport | 40 container + 20 container |
PRODUCT SELECTION
Material | Thickness （mm） | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Carbon Steel (O2) | 1 | 7.0~8.0 | 7.0~9.0 | 7.0~11.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 |
2 | 4.0~5.0 | 5.0~6.0 | 5.0~6.5 | 5.0~6.5 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | |
3 | 2.0~2.5 | 2.5~3.0 | 2.8~3.8 | 3.0~4.6 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | |
4 | 1.5~2.0 | 2.0~2.4 | 2.5~3.2 | 2.8~4.0 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | |
5 | 1.2~1.5 | 1.5~1.8 | 1.8~2.5 | 2.2~3.2 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | |
6 | 1.0~1.4 | 1.4~1.6 | 1.6~2.2 | 2.0~2.8 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | |
8 | 1.0~1.2 | 1.1~1.5 | 1.4~2.0 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | ||
10 | 0.75~0.85 | 1.0~1.2 | 1.1~1.4 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | ||
12 | 0.6~0.7 | 0.9~1.0 | 0.9~1.2 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | ||
16 | 0.6~0.75 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | ||||
20 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | |||||
22 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | |||||
25 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | |||||
Material | Thickness （mm） | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Stainless Steel (N2) | 1 | 10~12 | 15~18 | 10~15 | 35~50 | 45~55 | 45~55 | 45~55 | 45~55 | 45~55 | 45~55 |
2 | 2~4.0 | 4.5~6.0 | 5.0~7.0 | 10~15 | 15~23 | 18~27 | 20~35 | 23~37 | 26~40 | 28~43 | |
3 | 0.7~2.0 | 2.0~2.4 | 3.0~4.0 | 5.0~7.0 | 7.0~11.0 | 10~15 | 15~20 | 19~24 | 23~28 | 27~32 | |
4 | 1.0~1.5 | 2.0~2.8 | 3.5~4.5 | 4.0~6.0 | 5.0~7.5 | 10~14 | 14~17 | 18~22 | 22~26 | ||
5 | 0.75~0.85 | 1.2~1.7 | 1.8~2.5 | 2.5~4.0 | 4.0~5.0 | 8.0~12.0 | 11~14 | 14~17 | 16~18 | ||
6 | 0.7~1.0 | 0.7~0.8 | 2.0~3.2 | 3.0~4.0 | 6.0~8.0 | 8.0~9.5 | 9.5~11.0 | 10.5~12.0 | |||
8 | 0.5~0.7 | 0.5~0.6 | 1.2~1.8 | 1.5~2.6 | 3.5~4.0 | 5.0~5.5 | 6.5~7.0 | 7.5~8.0 | |||
10 | 0.7~0.9 | 0.7~1.3 | 1.8~2.2 | 2.5~3.0 | 3.4~3.9 | 4.0~4.5 | |||||
12 | 0.3~0.4 | 0.4~0.6 | 1.2~1.5 | 1.8~2.1 | 2.6~3.1 | 3.3~3.6 | |||||
16 | 0.3~0.5 | 0.8~1.2 | 1.5~1.8 | 2.2~2.5 | 2.7~3.0 | ||||||
20 | 0.3~0.5 | 0.6~0.8 | 1.0~1.3 | 1.7~2.0 | 2.2~2.5 | ||||||
22 | 0.3~0.4 | 0.6~0.75 | 1.0~1.2 | 1.4~1.6 | |||||||
25 | 0.3~0.5 | 0.4~0.6 | 0.6~0.8 | ||||||||
Material | Thickness （mm） | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Aluminum (N2) | 1 | 10~15 | 30~45 | 30~38 | 35~40 | 45~55 | 45~55 | 45~55 | 45~55 | ||
2 | 5.0~6.0 | 10~15 | 12~16 | 13~22 | 20~30 | 27~35 | 33~40 | 36~43 | |||
3 | 2.5~3.5 | 5.0~7.0 | 6.5~8.0 | 7.0~13 | 13~18 | 15~18 | 18~22 | 23~26 | |||
4 | 1.4~2.0 | 3.5~5.0 | 3.5~5.0 | 4.0~5.5 | 10~12 | 12~13.5 | 15~18 | 19~22 | |||
5 | 0.8~1.0 | 2.0~3.0 | 2.5~3.5 | 3.4~4.0 | 5.0~8.0 | 9.0~12 | 14~16 | 17~19 | |||
6 | 0.5~0.6 | 1.5~2.0 | 1.8~3.0 | 2.2~3.5 | 4.0~6.0 | 7.5~9.5 | 10~12.5 | 13~15 | |||
8 | 0.5~0.6 | 0.9~1.3 | 0.9~1.6 | 2.0~3.0 | 4.0~4.8 | 5.8~6.5 | 6.8~7.2 | ||||
10 | 0.4~0.7 | 0.55~1.0 | 1.0~1.9 | 1.5~2.7 | 3.0~3.8 | 3.7~4.2 | |||||
12 | 0.3~0.45 | 0.4~0.6 | 0.8~1.4 | 1.6~1.9 | 2.4~2.7 | 3.3~3.6 | |||||
16 | 0.3~0.4 | 0.6~0.9 | 1.0~1.2 | 1.4~1.6 | 1.7~1.8 | ||||||
20 | 0.4~0.6 | 0.8~0.9 | 1.0~1.2 | 1.2~1.6 | |||||||
22 | 0.7~0.85 | 0.9~1.0 | 1.1~1.2 | ||||||||
25 | 0.35~0.45 | 0.6~0.7 | 0.8~0.9 | ||||||||
Material | Thickness （mm） | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Brass (N2) | 1 | 8.0~12 | 12~18 | 20~32 | 25~30 | 45~55 | 45~55 | 45~55 | 45~55 | ||
2 | 3.5~5.0 | 6.0~8.5 | 9.0~11 | 10~13 | 25~35 | 27~35 | 33~40 | 36~43 | |||
3 | 1.5~2.2 | 2.5~4.0 | 4.0~6.0 | 5.0~6.5 | 12~18 | 15~18 | 18~22 | 23~26 | |||
4 | 1.0~1.2 | 1.5~1.8 | 3.0~4.5 | 3.0~5.2 | 8.0~10 | 12~13.5 | 15~18 | 19~22 | |||
5 | 0.6~0.8 | 0.8~1.2 | 1.5~2.0 | 2.0~3.0 | 4.5~6.0 | 9.0~12 | 14~16 | 17~19 | |||
6 | 0.4~0.5 | 1.0~1.6 | 1.4~2.0 | 3.0~4.0 | 7.5~9.5 | 10~12.5 | 13~15 | ||||
8 | 0.5~0.6 | 0.7~0.8 | 1.6~2.2 | 4.0~4.8 | 5.8~6.5 | 6.8~7.2 | |||||
10 | 0.2~0.3 | 0.8~1.2 | 1.5~2.7 | 3.0~3.8 | 3.7~4.2 | ||||||
12 | 1.6~1.9 | 2.4~2.7 | 3.3~3.6 | ||||||||
COMPANY PROFILE
Jinan Lingxiu Laser
Is established in July 2004 owns more than 500 square meters of researching and office space, more than 32000 square meters factory All machines, passed the European Union CE authentication American FDA cerificate and are certied to ISO 9001. Products are sold to USA, Canada, Australia, Europe. South east Asia, Afica etc, more than 120 counties and areas, and supply OEM service for more than 30 manufactures.
Our Products includes All kind of
1.Fiber laser cutting machine/Laser marking/welding/CO2 laser engraving/cleaning machine. 2.Vibrating knife cutting machine.
We can also customized non-standard assist equipment as your detailed work reauirements.
