Global Premium Brand of Laser Equipment , Focus on High Precision Metal Cutting.

stable metal laser cutting machine supplier for work plant 1
stable metal laser cutting machine supplier for work plant 2
stable metal laser cutting machine supplier for work plant 3
stable metal laser cutting machine supplier for work plant 4
stable metal laser cutting machine supplier for work plant 5
stable metal laser cutting machine supplier for work plant 6
stable metal laser cutting machine supplier for work plant 7
stable metal laser cutting machine supplier for work plant 8
stable metal laser cutting machine supplier for work plant 1
stable metal laser cutting machine supplier for work plant 2
stable metal laser cutting machine supplier for work plant 3
stable metal laser cutting machine supplier for work plant 4
stable metal laser cutting machine supplier for work plant 5
stable metal laser cutting machine supplier for work plant 6
stable metal laser cutting machine supplier for work plant 7
stable metal laser cutting machine supplier for work plant 8

stable metal laser cutting machine supplier for work plant

Warranty:
3 years
Shipping:
By sea/By land
Payment Term:
T/T;Alibaba trade assurance;West Union;Payple;L/C
Model Number:
LX62THA
Machine Weight:
13000KG(About)
Machine Size:
12000*5000*2450mm
Lead time:
20-35 working days
Brand:
LXSHOW
Inquiry
Company Advantages
1. The design of Lxshow laser fiber cutting machine is the application of some basic knowledge. They are Mathematics, Engineering Mechanics, Strength of Materials, Finite Element Analysis, etc. Its laser cutting part is not in contact with the workpiece, ensuring the perfect condition of the workpiece
2. The product increases the efficiency and dedication of workers because only little joules of their energies are lost when working. Its PLC screen is characterized by high sensitivity to orders
3. Lxshow understands that trust and quality matter. The product can be OEMed for meeting diverse requirements

product-Lxshow-img

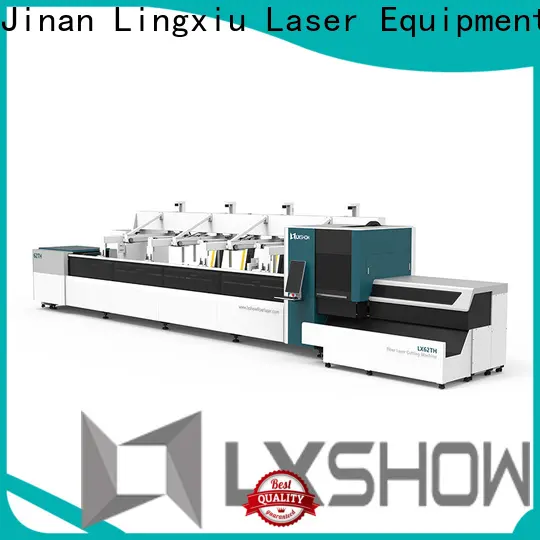

product-Automatic Loading and Unloading Square tube and circle tube Metal pipe Fiber laser cutting m



LX62THA

LX63THA

Effective Tube Cutting Length

6500mm/9200mm

6500mm/9200mm

Laser Output Power

1kw/1.5kw/2kw/3kw/4kw/6kw/6kw/8kw/10kw/12kw

Effective Round Tube Cutting Diameter

Φ20-220mm

Φ20-320mm

Effective Square Tube Cutting Diameter

□20*20mm-□150*150mm

□20*20mm-□220*220mm

MAX Weight of chunk

170KG

400KG

Rectangular tube

Edge Length

20-170mm

20-270mm

Outer Circle Diameter

≤230mm

≤330mm

X/Y-axis positioning accuracy

0.03mm

X/Y-axis repositioning accuracy

0.02mm

X axis maximum speed

100m/min

Y axis maximum speed

95m/min

Chunk speed

100r/min

Chunk type

pneumatic

Weight of whole machine(About)

8000KG

Weight of whole machine include loading equipment

13000KG

Machine size

12000*3100*2450mm

Machine size include loading equipment

12000*5000*2450mm


product-Lxshow-img

product-Lxshow-img

product-Lxshow-img

product-Lxshow-Automatic Loading and Unloading Square tube and circle tube Metal pipe Fiber laser cu

product-Lxshow-img-1

product-Automatic Loading and Unloading Square tube and circle tube Metal pipe Fiber laser cutting m-1


Company Features
1. Jinan Lingxiu Laser Equipment Co.,Ltd. insists on researching and developing new products.
2. We maximally want to reduce the impact on the environment. To improve the environmental performance of our products, we assess and improve their environmental impacts from the moment we begin to develop them.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
