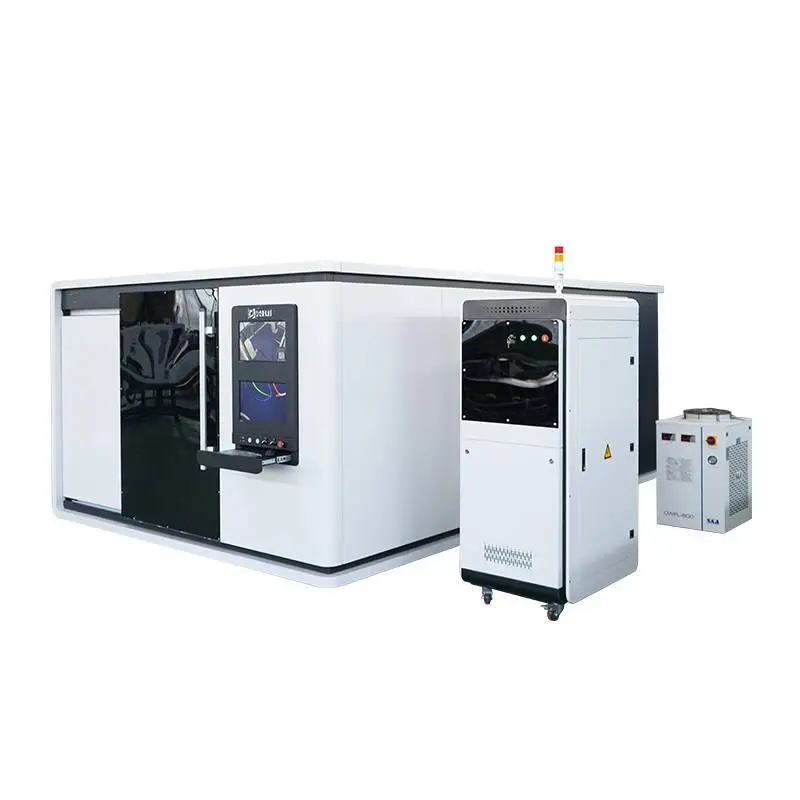

Protective cover / enclosed metal sheet fiber laser cutting machine LXFC1530 1000W 1500W 2200W metal plates fiber laser cutter
MACHINE INDICATE
MACHINE PARTS
APPLICATION AND SAMPLES
APPLICATION
Applied materials:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Applied Industry:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
CHARACTURE
1.
Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2.
High cutting speed: Cutting speed is more than 20m/min
3.
Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4.
High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5.
Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6.
Easy operations: fiber line transmission, no adjustment of optical path;
7.
Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
8.
Adopted Original Raycus or German IPG fiber laser source: with long using life up to 150000 hours and high cutting speed up to 15m/min;
9.
Japan YASKAWA Servo motor with gear driving system: can make sure the cutting high precision especially comparing with the single driver system.
10.
Imported World Famous "LaserMech" laser head with auto focusing height follower (Optional): which can ensure the constant same distance between the head and cutting material.
11.
The cutting slot is very slim, can reach up to 0.05mm: The machine is very suitable for processing precision parts with high efficiency.
12.
Automatic Lubrication System for Mechanic: which can lubricate the linear guiderail nearly 500 times per minute to make sure the high precision.
13.
Convenient Collecting System: which has the special funnel design to make collecting more easy.
PRODUCT PARAMETER
Machine Name | 1500W 2200W 3300W High Power Metal Plate Fiber Laser cutting machine LXF3015G |
Model | LXF3015G |
Laser machine cutting area | 3000x1500mm (Other size can be customized,such as 4500x1500/6000x1500/6000x2000mm) |
Fiber Laser Power | 500w/750w/1000/1500/2200/3300/4000/ 6000/8000/12000/25000W |
Laser wave length | 1064nm |
Transmission system | Gear + rails (we have standard brand,we can also produce as your requirements) |
X.Y axis location accuracy | ±0.01mm |
X.Y axis repeat location accuracy | ±0.01mm |
X.Y axis max moving speed | 30m/min |
Max cutting speed | 1--30m/min(it will according to metal material and laser power and machine configuration) |
Cutting thickness | Detailed in the following cutting thickness |
Application Material | Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal |
Advantages | >Excellent beam quality |
Gross weight | 7500KG |
Net weight | 7250KG |
Machine size | Exchange table Machine size: 5200*3000*2400mm Water chiller +Controller: 1830*920*2110mm |
PRODUCT SELECTION
Material | Thickness （mm） | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Carbon Steel (O2) | 1 | 7.0~8.0 | 7.0~9.0 | 7.0~11.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 |
2 | 4.0~5.0 | 5.0~6.0 | 5.0~6.5 | 5.0~6.5 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | |
3 | 2.0~2.5 | 2.5~3.0 | 2.8~3.8 | 3.0~4.6 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | |
4 | 1.5~2.0 | 2.0~2.4 | 2.5~3.2 | 2.8~4.0 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | |
5 | 1.2~1.5 | 1.5~1.8 | 1.8~2.5 | 2.2~3.2 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | |
6 | 1.0~1.4 | 1.4~1.6 | 1.6~2.2 | 2.0~2.8 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | |
8 | 1.0~1.2 | 1.1~1.5 | 1.4~2.0 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | ||
10 | 0.75~0.85 | 1.0~1.2 | 1.1~1.4 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | ||
12 | 0.6~0.7 | 0.9~1.0 | 0.9~1.2 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | ||
16 | 0.6~0.75 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | ||||
20 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | |||||
22 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | |||||
25 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | |||||
Material | Thickness （mm） | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Stainless Steel (N2) | 1 | 10~12 | 15~18 | 10~15 | 35~50 | 45~55 | 45~55 | 45~55 | 45~55 | 45~55 | 45~55 |
2 | 2~4.0 | 4.5~6.0 | 5.0~7.0 | 10~15 | 15~23 | 18~27 | 20~35 | 23~37 | 26~40 | 28~43 | |
3 | 0.7~2.0 | 2.0~2.4 | 3.0~4.0 | 5.0~7.0 | 7.0~11.0 | 10~15 | 15~20 | 19~24 | 23~28 | 27~32 | |
4 | 1.0~1.5 | 2.0~2.8 | 3.5~4.5 | 4.0~6.0 | 5.0~7.5 | 10~14 | 14~17 | 18~22 | 22~26 | ||
5 | 0.75~0.85 | 1.2~1.7 | 1.8~2.5 | 2.5~4.0 | 4.0~5.0 | 8.0~12.0 | 11~14 | 14~17 | 16~18 | ||
6 | 0.7~1.0 | 0.7~0.8 | 2.0~3.2 | 3.0~4.0 | 6.0~8.0 | 8.0~9.5 | 9.5~11.0 | 10.5~12.0 | |||
8 | 0.5~0.7 | 0.5~0.6 | 1.2~1.8 | 1.5~2.6 | 3.5~4.0 | 5.0~5.5 | 6.5~7.0 | 7.5~8.0 | |||
10 | 0.7~0.9 | 0.7~1.3 | 1.8~2.2 | 2.5~3.0 | 3.4~3.9 | 4.0~4.5 | |||||
12 | 0.3~0.4 | 0.4~0.6 | 1.2~1.5 | 1.8~2.1 | 2.6~3.1 | 3.3~3.6 | |||||
16 | 0.3~0.5 | 0.8~1.2 | 1.5~1.8 | 2.2~2.5 | 2.7~3.0 | ||||||
20 | 0.3~0.5 | 0.6~0.8 | 1.0~1.3 | 1.7~2.0 | 2.2~2.5 | ||||||
22 | 0.3~0.4 | 0.6~0.75 | 1.0~1.2 | 1.4~1.6 | |||||||
25 | 0.3~0.5 | 0.4~0.6 | 0.6~0.8 | ||||||||
Material | Thickness （mm） | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Aluminum (N2) | 1 | 10~15 | 30~45 | 30~38 | 35~40 | 45~55 | 45~55 | 45~55 | 45~55 | ||
2 | 5.0~6.0 | 10~15 | 12~16 | 13~22 | 20~30 | 27~35 | 33~40 | 36~43 | |||
3 | 2.5~3.5 | 5.0~7.0 | 6.5~8.0 | 7.0~13 | 13~18 | 15~18 | 18~22 | 23~26 | |||
4 | 1.4~2.0 | 3.5~5.0 | 3.5~5.0 | 4.0~5.5 | 10~12 | 12~13.5 | 15~18 | 19~22 | |||
5 | 0.8~1.0 | 2.0~3.0 | 2.5~3.5 | 3.4~4.0 | 5.0~8.0 | 9.0~12 | 14~16 | 17~19 | |||
6 | 0.5~0.6 | 1.5~2.0 | 1.8~3.0 | 2.2~3.5 | 4.0~6.0 | 7.5~9.5 | 10~12.5 | 13~15 | |||
8 | 0.5~0.6 | 0.9~1.3 | 0.9~1.6 | 2.0~3.0 | 4.0~4.8 | 5.8~6.5 | 6.8~7.2 | ||||
10 | 0.4~0.7 | 0.55~1.0 | 1.0~1.9 | 1.5~2.7 | 3.0~3.8 | 3.7~4.2 | |||||
12 | 0.3~0.45 | 0.4~0.6 | 0.8~1.4 | 1.6~1.9 | 2.4~2.7 | 3.3~3.6 | |||||
16 | 0.3~0.4 | 0.6~0.9 | 1.0~1.2 | 1.4~1.6 | 1.7~1.8 | ||||||
20 | 0.4~0.6 | 0.8~0.9 | 1.0~1.2 | 1.2~1.6 | |||||||
22 | 0.7~0.85 | 0.9~1.0 | 1.1~1.2 | ||||||||
25 | 0.35~0.45 | 0.6~0.7 | 0.8~0.9 | ||||||||
Material | Thickness （mm） | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Brass (N2) | 1 | 8.0~12 | 12~18 | 20~32 | 25~30 | 45~55 | 45~55 | 45~55 | 45~55 | ||
2 | 3.5~5.0 | 6.0~8.5 | 9.0~11 | 10~13 | 25~35 | 27~35 | 33~40 | 36~43 | |||
3 | 1.5~2.2 | 2.5~4.0 | 4.0~6.0 | 5.0~6.5 | 12~18 | 15~18 | 18~22 | 23~26 | |||
4 | 1.0~1.2 | 1.5~1.8 | 3.0~4.5 | 3.0~5.2 | 8.0~10 | 12~13.5 | 15~18 | 19~22 | |||
5 | 0.6~0.8 | 0.8~1.2 | 1.5~2.0 | 2.0~3.0 | 4.5~6.0 | 9.0~12 | 14~16 | 17~19 | |||
6 | 0.4~0.5 | 1.0~1.6 | 1.4~2.0 | 3.0~4.0 | 7.5~9.5 | 10~12.5 | 13~15 | ||||
8 | 0.5~0.6 | 0.7~0.8 | 1.6~2.2 | 4.0~4.8 | 5.8~6.5 | 6.8~7.2 | |||||
10 | 0.2~0.3 | 0.8~1.2 | 1.5~2.7 | 3.0~3.8 | 3.7~4.2 | ||||||
12 | 1.6~1.9 | 2.4~2.7 | 3.3~3.6 | ||||||||
