Global Premium Brand of Laser Equipment , Focus on High Precision Metal Cutting.

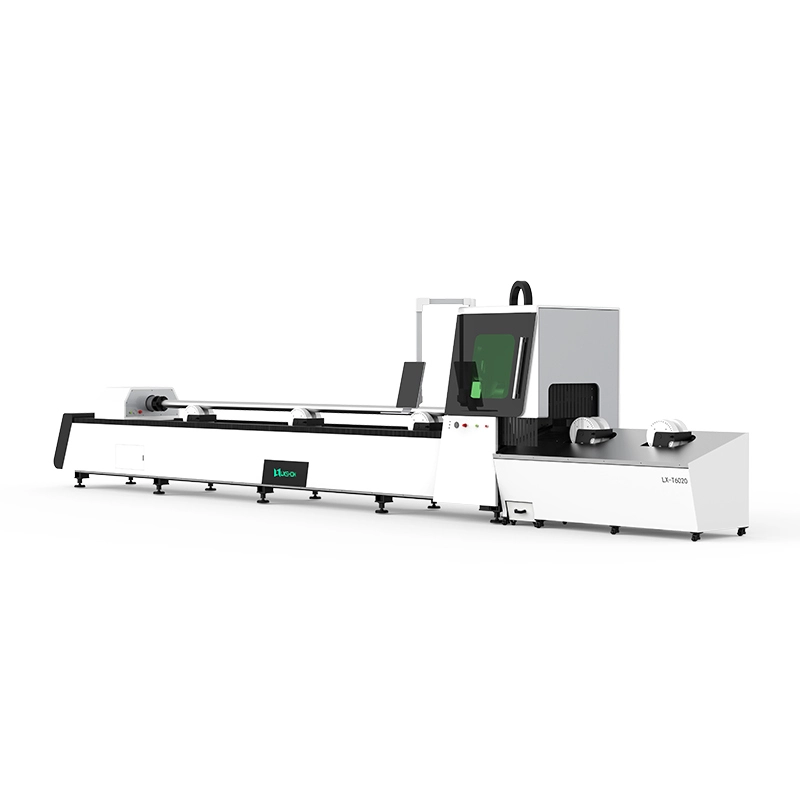

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W

LXF6020T

Warranty:

3 years

Shipping:

By sea/By air/By land

Payment Term:

T/T;Alibaba trade assurance;West Union;Paypal;L/C

Model Number:

LXF6020T

Machine Weight:

8000KG

Machine Size:

Exchange table Machine size: 9340*1560*1615mm

Lead time:

10-15 working days

Brand:

LXSHOW

APPLICATION AND SAMPLES

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 2 MACHINE INDICATE

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 4

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 5 MACHINE PARTS

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 7

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 8

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 9 APPLICATION AND SAMPLES

APPLICATION

Application Materials:

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Application Industries:

Soullon Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 11

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 12

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 13

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 14

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 15

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 16 CHARACTURE

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 18

High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 19

Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 20

High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 21

Open worktable, easy operation and small space occupation.

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 22

High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 23

The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 24

The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 25

It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 26

Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 27 PRODUCT PARAMETER

Model	LXF6020T
Pipe thickness	Depends on the power
Cutting speed	Cutting speed: Max 0.8m/s/ cut(Depending on material thickness)
"y" axis single feeding length	1200mm
"z" axis adjustment range	65mm
"w" axis adjustment range	360°
Machine repeat positioning accuracy	±0.05mm/1000mm
Machine positioning accuracy	±0.01mm
Machine idle speed	120m/min
Maximum acceleration	1.0G-1.5G
Electricity demand	380V 50Hz(customizable)
Cutting accuracy	±0.1mm
Machine size	934015601615mm
Machine weight	8T
Power	500-25000w(Optional)
Accuracy	±0.1mm
Max . raw material length (mm)	≤6200
Max. finished part length (mm)‍	1200
Pipe remain length (mm)	180
Multi-funtional cutting	Mitre cut ,rectangular ,slot,square, circular ,cold mouth ,special profiles

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 29 PRODUCT SELECTION

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Carbon Steel (O₂)	1	7.0~8.0	7.0~9.0	7.0~11.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0
	2	4.0~5.0	5.0~6.0	5.0~6.5	5.0~6.5	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0
	3	2.0~2.5	2.5~3.0	2.8~3.8	3.0~4.6	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0
	4	1.5~2.0	2.0~2.4	2.5~3.2	2.8~4.0	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2
	5	1.2~1.5	1.5~1.8	1.8~2.5	2.2~3.2	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6
	6	1.0~1.4	1.4~1.6	1.6~2.2	2.0~2.8	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0
	8		1.0~1.2	1.1~1.5	1.4~2.0	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4
	10		0.75~0.85	1.0~1.2	1.1~1.4	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8
	12		0.6~0.7	0.9~1.0	0.9~1.2	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5
	16				0.6~0.75	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85
	20					0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75
	22					0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65
	25					0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Stainless Steel (N₂)	1	10~12	15~18	10~15	35~50	45~55	45~55	45~55	45~55	45~55	45~55
	2	2~4.0	4.5~6.0	5.0~7.0	10~15	15~23	18~27	20~35	23~37	26~40	28~43
	3	0.7~2.0	2.0~2.4	3.0~4.0	5.0~7.0	7.0~11.0	10~15	15~20	19~24	23~28	27~32
	4		1.0~1.5	2.0~2.8	3.5~4.5	4.0~6.0	5.0~7.5	10~14	14~17	18~22	22~26
	5		0.75~0.85	1.2~1.7	1.8~2.5	2.5~4.0	4.0~5.0	8.0~12.0	11~14	14~17	16~18
	6			0.7~1.0	0.7~0.8	2.0~3.2	3.0~4.0	6.0~8.0	8.0~9.5	9.5~11.0	10.5~12.0
	8			0.5~0.7	0.5~0.6	1.2~1.8	1.5~2.6	3.5~4.0	5.0~5.5	6.5~7.0	7.5~8.0
	10					0.7~0.9	0.7~1.3	1.8~2.2	2.5~3.0	3.4~3.9	4.0~4.5
	12					0.3~0.4	0.4~0.6	1.2~1.5	1.8~2.1	2.6~3.1	3.3~3.6
	16						0.3~0.5	0.8~1.2	1.5~1.8	2.2~2.5	2.7~3.0
	20						0.3~0.5	0.6~0.8	1.0~1.3	1.7~2.0	2.2~2.5
	22							0.3~0.4	0.6~0.75	1.0~1.2	1.4~1.6
	25								0.3~0.5	0.4~0.6	0.6~0.8

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Aluminum (N₂)	1			10~15	30~45	30~38	35~40	45~55	45~55	45~55	45~55
	2			5.0~6.0	10~15	12~16	13~22	20~30	27~35	33~40	36~43
	3			2.5~3.5	5.0~7.0	6.5~8.0	7.0~13	13~18	15~18	18~22	23~26
	4			1.4~2.0	3.5~5.0	3.5~5.0	4.0~5.5	10~12	12~13.5	15~18	19~22
	5			0.8~1.0	2.0~3.0	2.5~3.5	3.4~4.0	5.0~8.0	9.0~12	14~16	17~19
	6			0.5~0.6	1.5~2.0	1.8~3.0	2.2~3.5	4.0~6.0	7.5~9.5	10~12.5	13~15
	8				0.5~0.6	0.9~1.3	0.9~1.6	2.0~3.0	4.0~4.8	5.8~6.5	6.8~7.2
	10					0.4~0.7	0.55~1.0	1.0~1.9	1.5~2.7	3.0~3.8	3.7~4.2
	12					0.3~0.45	0.4~0.6	0.8~1.4	1.6~1.9	2.4~2.7	3.3~3.6
	16						0.3~0.4	0.6~0.9	1.0~1.2	1.4~1.6	1.7~1.8
	20							0.4~0.6	0.8~0.9	1.0~1.2	1.2~1.6
	22								0.7~0.85	0.9~1.0	1.1~1.2
	25								0.35~0.45	0.6~0.7	0.8~0.9

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Brass (N₂)	1			8.0~12	12~18	20~32	25~30	45~55	45~55	45~55	45~55
	2			3.5~5.0	6.0~8.5	9.0~11	10~13	25~35	27~35	33~40	36~43
	3			1.5~2.2	2.5~4.0	4.0~6.0	5.0~6.5	12~18	15~18	18~22	23~26
	4			1.0~1.2	1.5~1.8	3.0~4.5	3.0~5.2	8.0~10	12~13.5	15~18	19~22
	5			0.6~0.8	0.8~1.2	1.5~2.0	2.0~3.0	4.5~6.0	9.0~12	14~16	17~19
	6				0.4~0.5	1.0~1.6	1.4~2.0	3.0~4.0	7.5~9.5	10~12.5	13~15
	8					0.5~0.6	0.7~0.8	1.6~2.2	4.0~4.8	5.8~6.5	6.8~7.2
	10						0.2~0.3	0.8~1.2	1.5~2.7	3.0~3.8	3.7~4.2
	12								1.6~1.9	2.4~2.7	3.3~3.6

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 31 COMPANY PROFILE

Jinan Lingxiu Laser

Is established in July 2004 owns more than 500 square meters of researching and office space, more than 32000 square meters factory All machines, passed the European Union CE authentication American FDA cerificate and are certied to ISO 9001. Products are sold to USA, Canada, Australia, Europe. South east Asia, Afica etc, more than 120 counties and areas, and supply OEM service for more than 30 manufactures.

Our Products includes All kind of

1.Fiber laser cutting machine/Laser marking/welding/CO2 laser engraving/cleaning machine. 2.Vibrating knife cutting machine.

We can also customized non-standard assist equipment as your detailed work reauirements.

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 33

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 34

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 35

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 36

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 37

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 38

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 39 CERTIFICATE

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 41

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 42

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 43

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 44

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 45

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 46 OUR FACTORY

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 48

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 49

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 50 PACKAGE & SHIPMENT

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 52

FAQ

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 53

Why choose us

Professional tube fiber laser cutting machine 500W 750W 1000W 1500W 2200W 3300W 4000W 8000W 54

Package

Please tell us which product you want to know or your production needs, we will choose the most suitable machine for you！
