Global Premium Brand of Laser Equipment , Focus on High Precision Metal Cutting.

Portable Handheld Laser Welding Machine soldador láser 1
Portable Handheld Laser Welding Machine soldador láser 1

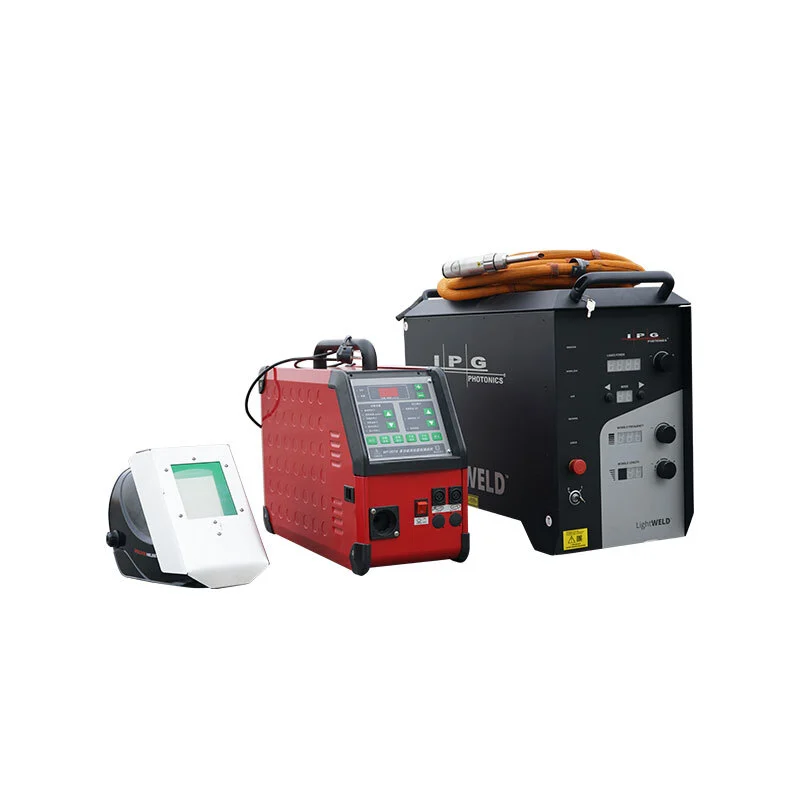

Portable Handheld Laser Welding Machine soldador láser

IPG LightWELD Laser Welding Machines have a laser power of up to 1500W, which can be quickly adjusted to the optimal welding parameters according to different materials and thicknesses through the knob. The operation is very intuitive and simple. With 74 preset and user-defined processing parameters, novice welders can master welding operations in just a few hours of training. The stored welding mode can support peak power up to 2500W, providing stronger welding and cleaning capabilities.

Laser Power:1500IPG

Laser Machine Controller:IPG

Laser Wavelength:1070nm

Auto Wire Feeder:Including

Cooling Type:Air-cooling

Voltage:220V,1PH / 380V,3PH

    oops...!

    no product data.

    Go to homepage
    Portable Handheld Laser Welding Machine soldador láser 2
    Portable Handheld Laser Welding Machine soldador láser 3
    Portable Handheld Laser Welding Machine soldador láser 4

    Model

    LXW 1500W

    Laser source

    IPG

    Working life of fiber module

    More than 100,000 hours

    Laser machine controller

    IPG

    Wobble welding head

    Swing head

    Supply voltage

    Single-phase 220V±10%, 50Hz

    Machine power consumption

    2.5kw

    Setting up the environment

    Flat, no vibration, no impact

    Working temperature

    0°C40°C

    Working environment humidity

    ≤80%

    Power adjustment range (%)

    10-100 (gradient adjustable)

    Laser Source Repeat frequency (KHz)

    1000-5000 (gradient adjustable)

    Beam quality

    1.3m2

    Laser wavelength

    1070nm

    Focal length (mm)

    150

    Cooling method

    Air cooling

    Size

    1150*760*1370mm

    Weight

    275Kg

    Fiber length

    10 meters

    Welding head weight

    1Kg

    Scanning/Swing frequency

    20-150Hz

    Mobile mode

    Handheld

    Auto wire feeder

    Included

    Spot adjusting range

    0-5mm

    Repeating Precision

    0.01mm

    Portable Handheld Laser Welding Machine soldador láser 5
    Portable Handheld Laser Welding Machine soldador láser 6
    Portable Handheld Laser Welding Machine soldador láser 7
    Portable Handheld Laser Welding Machine soldador láser 8
