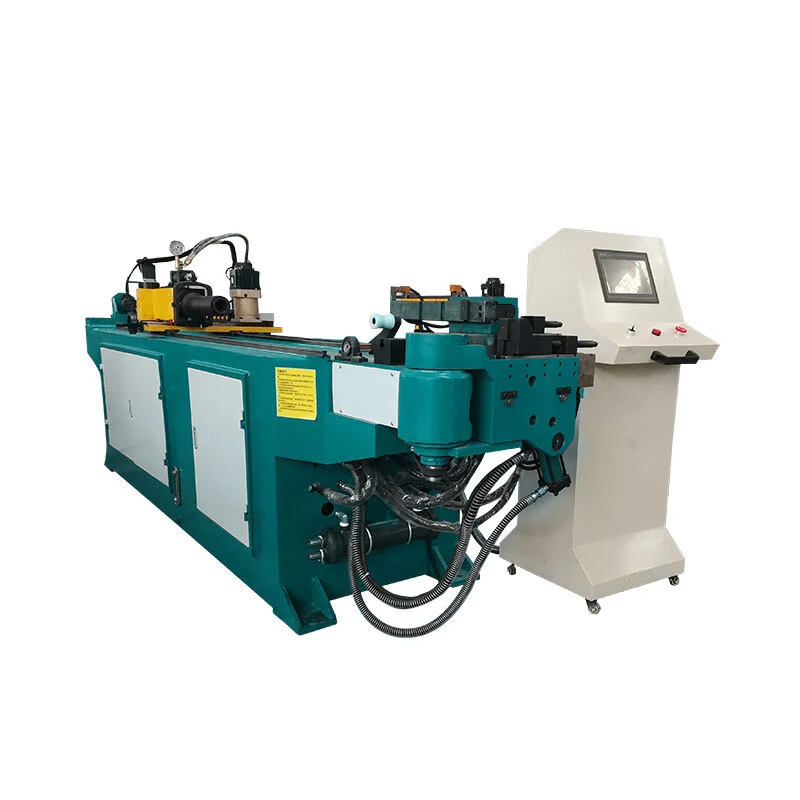

Fully automatic hydraulic pipe bending machine|LXSHOW
This hydraulic pipe bending machine can set the working speed of each axis to save working time and increase production. There is a counting function to calculate the number of work.
The pipe bending function can also make a perfect ellipse when the pipe is large in diameter or with a small bending radius. Parameters can also be set to compensate for the rebound value of the bending pipe.
Hydraulic automatic pipe bending machine-CNC series
- The mountaineering bag refers to the Hydraulic pipe bender is a common pipe processing equipment, mainly used for bending steel pipes and profiles of various sizes.
- Its working principle is mainly based on hydraulic technology and bending forming technology:
- Hydraulic pipe bender is mainly composed of frame, hydraulic system, bending system and control system.
- The frame is the main body of the whole equipment, responsible for supporting and fixing various components.
- The hydraulic system is the power source of the equipment, which is used to push the piston and motor.
- The bending system consists of a bending die and a bending shaft, which is responsible for deforming the pipe into the desired shape.
- The control system is used to control the operation and bending process of the equipment.
Related Parameters
| Main technical parameters | Numerical range | Numerical range | Numerical range | Numerical range | Numerical range |
| Maximum bending capacity of carbon steel pipe steel pipe | ￠38×2t | ￠50.8×3t | ￠63×3t | ￠76×4t | ￠89×5t |
| Bending radius range | 30-150 | 30-190 | 0-260 | 50-300 | 50-300 |
| Bending angle range | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 |
| Maximum feeding distance approx. | 2000 | 2200 | 2500 | 3000 | 3000 |
| Shortest clamping distance | Pipe outer diameter*2 times | Pipe outer diameter*2 times | Pipe outer diameter*2 times | Pipe outer diameter*2 times | Pipe outer diameter*2 times |
| Bending accuracy | ±1 | ±1 | ±1° | ±1° | ±1° |
| Bending speed | 70°(Adjustable speed) | 50°(Adjustable speed) | 30°(Adjustable speed) | 10°(Adjustable speed) | 10°(Adjustable speed) |
| Feeding method | Direct or clamp delivery | Direct shipping and return shipping | Direct shipping or return shipping | Direct or clamp delivery | Direct or pinch feeding |
| Feeding servo motor power | 1 | 1 | 1 | 2 | 2 |
| Shipping Speed | 200-1000(Adjustable speed) | 200-800(Adjustable speed) | 200-800(Adjustable speed) | 200-700(Adjustable speed) | 200-700(Adjustable speed) |
| Shipping Accuracy | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Angle servo motor power | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Corner speed | 70°(Adjustable speed） | 70°(Adjustable speed) | 70°(Adjustable speed) | 30°(Adjustable speed) | 30°(Adjustable speed) |
Clamping mechanism
The clamping mechanism of the pipe bending machine is a key component used to fix the pipe and ensure that the pipe will not move or rotate during the bending process.
Oil pump motor
The oil pump motor of the pipe bending machine is the core component that provides power to the hydraulic system. It is responsible for driving the oil pump and converting mechanical energy into hydraulic energy to achieve precise bending of the pipe.
Oil cylinder
The oil cylinder of the pipe bending machine is the key actuator in the hydraulic system. It is driven by the high-pressure oil output by the electric oil pump to generate thrust, thereby achieving the bending of the pipe.
Mould
The mold of the pipe bending machine is a special tool used to define the bending shape and size of the pipe. It controls the bending radius and angle by designing the contact surface with the pipe to ensure that the bent pipe meets the predetermined specifications.
Feeding device
The feeding device of the pipe bending machine is a key component used to transfer the pipe from the feeding device to the bending mechanism. It clamps the pipe to be processed and pushes the pipe to move along a predetermined path to achieve continuous bending of the pipe.
Power distribution cabinet
The power distribution cabinet of the pipe bending machine is the core component used to control and manage the electrical system of the pipe bending machine. It contains various electrical components and protection devices to ensure the safe and stable operation of the machine.
Product Advantages
Suitable for the contemporary needs of men and women, it offers a modular organization that allows to add to the classic device compartment an additional pouch for accessories that can also be used individually.
Samples
Hydraulic pipe bending machine is a highly efficient metal processing equipment, widely used in various industries. It can perform cold bending processing on various metal pipes to meet the needs of different shapes.
Carbon steel: including low carbon steel, medium carbon steel, high carbon steel, etc. These materials are widely used in construction, machinery manufacturing and other fields.
Stainless steel: including austenitic stainless steel, martensitic stainless steel, etc. Stainless steel has excellent properties such as corrosion resistance and high temperature resistance, and is often used in food, chemical, pharmaceutical and other industries.
Aluminum alloy: Aluminum alloy has the characteristics of light weight, high strength and corrosion resistance, and is widely used in aerospace, automobile manufacturing and other fields.
Copper alloy: Copper alloy has good electrical conductivity, thermal conductivity and corrosion resistance, and is often used in electronics, electrical appliances, construction and other fields.
Application Industry
Pipe bending machines are widely used in: power construction; pipeline laying and repair in highway and railway construction, bridges, ships, etc.
Hydraulic pipe bending machines have the advantages of reasonable structure, convenient operation, safe use, fast loading and unloading, and one machine for multiple uses.
