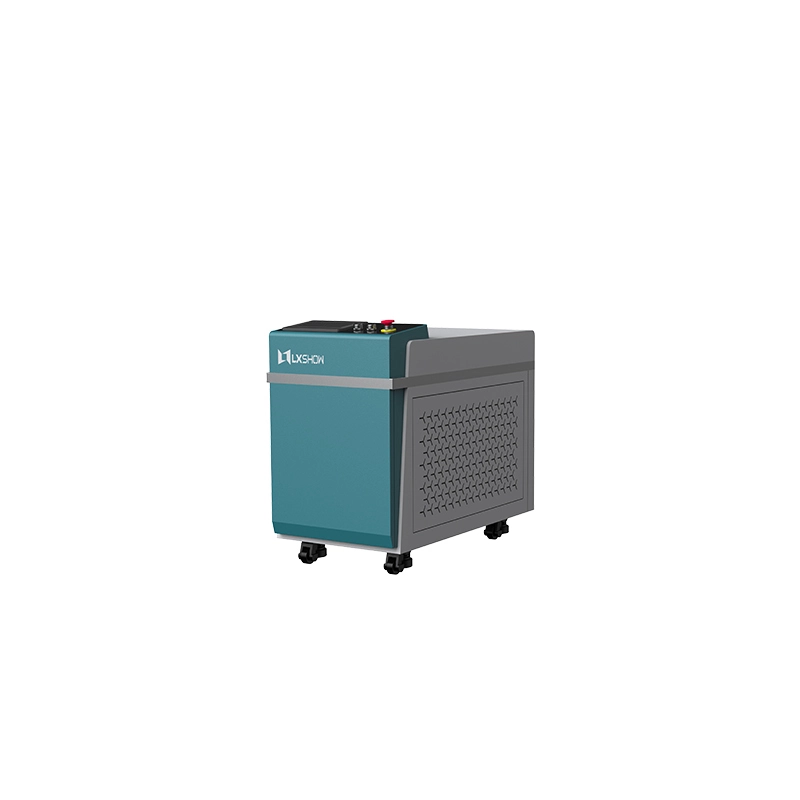

LXW-1000/1500W Mini Handheld Fiber Laser Welding Machine Metal Sheet SS Iron Carbon Steel
Model Number: LXW-1000/1500W
Lead time: 5-10 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Paypal;L/C.
Machine Size: 1300*650*1100mm
Machine weight: 200kg
Warranty: 2 years
Shipping: By sea/By air/By Railway
|
Model |
LXW-1000W / LXC-1500W |
|
Laser source |
Raycus |
|
Working life of fiber module |
More than 100000 hours |
|
Laser machine controller |
Au3tech |
|
Wobble welding head |
Single wobble/Double wobble |
|
Supply voltage |
Single-phase 220V±10%, 50/60Hz AC |
|
Machine power consumption |
7.5Kw(including chiller) |
|
Setting up the environment |
Flat, no vibration, no impact |
|
Working temperature |
0°C～40°C |
|
Working environment humidity |
≤80% |
|
Power adjustment range (%) |
10-100 (gradient adjustable) |
|
Laser Source Repeat frequency (KHz) |
1000-5000 (gradient adjustable) |
|
Beam quality |
1.3㎡ |
|
Laser wavelength |
1070nm |
|
Focal length (mm) |
150 |
|
Cooling method |
Water cooling |
|
Size |
1300*660*1150mm
|
|
Weight |
190Kg |
|
Fiber length |
10 meters |
|
Welding head weight |
1.5Kg |
|
Scanning/Swing frequency |
20-150Hz |
|
Mobile mode |
Handheld |
|
Auxiliary gas |
99.99% argon or nitrogen |
|
Auto wire feeder |
Included |
|
Spot adjusting range |
0-5mm |
|
Repeating Precision |
0.01mm |
laser gun
- High-quality precision optical components are selected, and the beam quality is excellent and stable
- Cool appearance, ergonomic design, comfortable grip
- Double protective lens design, better dust resistance
- Straight line light spot, welding operation is simpler, welding firmness is high, and the texture is beautiful
control system
- Easy installation, easy adjustment, excellent performance, complete solutions.
- Intelligent system, stable performance, simple operation, suitable for different kinds of metal processing.
- It supports modular, individual, automated and informative solutions.
Water chiller
- Relative leading product technology(complete laboratory and performance testing means), product specifications and actual performance good consistency.
- With multiple after-sales office in china and abroad, product service is more real-time and reliable.
Raycus laser source
- Famous laser brand all over the world
- High electronic-optical conversion efficiency, good beam quality, wide modulation frequency, high reliability, long life and maintenance-free.
