Global Premium Brand of Laser Equipment , Focus on High Precision Metal Cutting.

Lxshow precise laser marking supplier for workshop 1
Lxshow precise laser marking supplier for workshop 1

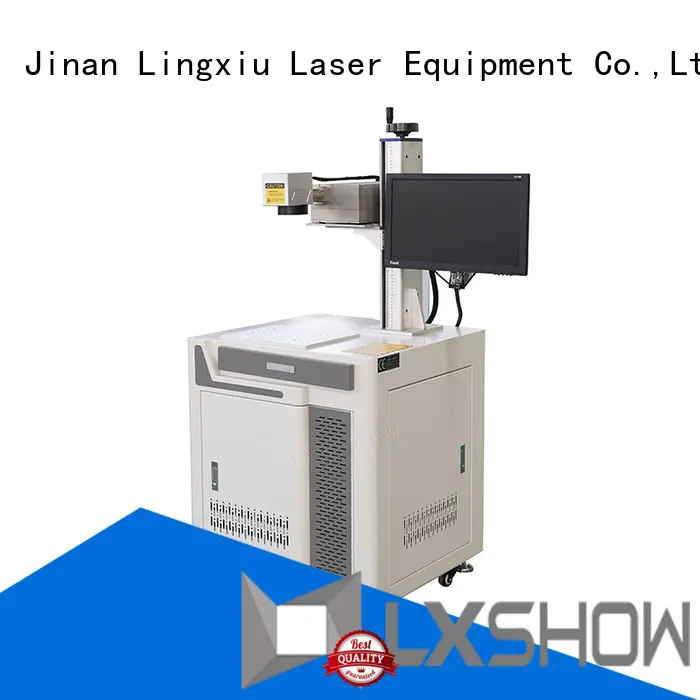

Lxshow precise laser marking supplier for workshop

Warranty:
3 years
Shipping:
By sea/By air/By land
Payment Term:
T/T;Alibaba trade assurance;West Union;Payple;L/C.
Model Number:
LXF-20/30/50W
Machine Weight:
150KG
Machine Size:
920*830*1160mm
Lead time:
3 working days
Brand:
LXSHOW
Inquiry
Enterprise Strength
  • Lxshow laser has established a sound service system to provide quality services for customers attentively.
Company Advantages
1. laser marking is endowed with the uv laser marking machine beauty.
2. The product has withstood tough performance test and function optimally even in extreme conditions. And it has a long service life and is flexible enough for use in different conditions and assignments.
3. Jinan Lingxiu Laser Equipment Co.,Ltd. has been prospering for its considerate service for customers.
4. Jinan Lingxiu Laser Equipment Co.,Ltd. utilizes its talents, technology and fund to provide top ranking service for its customers.

Company Features
1. Over years of development, Jinan Lingxiu Laser Equipment Co.,Ltd. has been the preferred choice of manufacturing uv laser marking machine and regarded as a reliable provider.
2. Jinan Lingxiu Laser Equipment Co.,Ltd. is the larger of uv laser marking production base.
3. We have a clear long-term strategy. We want to become more customer-focused, more innovative, and more agile in our internal processes and customer-facing activities. We devote ourselves to utilize materials as effectively as possible. We sustainably conserve our resources by constantly reusing, regenerating, and recycling products. We are committed to becoming the most wanted &valuable enterprise to our customers. We will always keep pace with customers' requirements, and continuously optimize costs to improve product cost efficiency. We strictly abide by environmental obligations. During our production, we ensure that our use of energy, raw material, and natural resources are totally legal and environmentally friendly.
Product Description





TypeFIBERLinear speed<=7000mm/s
Output power15W/30W/40W/60WCharacter size0.2~110mm
Wavelength1064nmMin line width0.05mm
Marking depth<=2mmRepeat accuracy±0.01mm
Focusing range140mm 210mm optionalLaserPulsed fiber optic laser
Cooling way Air coolingPower consumption<=250W

Working

temperature

5~45 ℃Voltage500W-1.2KW, AC220V 50HZ
Speed monitoringSync encoder or analog speed
Repetition frequency20~200khz(Pulse width 30~200nm)
Marking scope70*70mm 110*110mm 145*145mm 175*175mm optional
Control typeIndustrial level embedded control(LINUX)

Touch screen

(optional)

10.2 Full color touch screen, can be held
Engraving wayFlying engraving, Static engraving, Intelligent engraving
Engraving content

Text, Complex graphics, One dimension (two dimensional) bar codes,

 Variable serial number,Date, TXT file, RS232 TCP/IP communication data,

PLT format drawings, etc

Support fontTrue Type, Single line, dot matrix word
Engraving advantage

Online editing, Multi-faceted engraving, Facing engraving,

Accurate records, Fast shift, Trigger smart memory

WeightLaser machine 30kg, bracket 50kg
