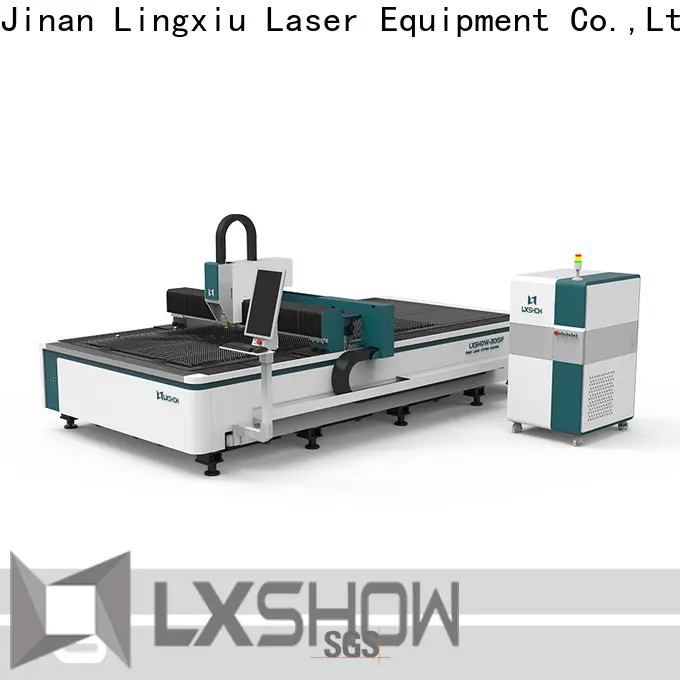

Lxshow long lasting laser for cutting metal factory price for packaging bottles
1. The production of Lxshow fiber laser cutter machine covers a wide range of stages. They include the procurement of raw materials, parts processing, secondary processes such as plating and anodizing, complete mechanical assembly, and testing. The product can be OEMed for meeting diverse requirements
2. Finding applications in many industries, this product is offered in different sizes and finishes. It can operate in a high-temperature environment
3. The product is able to guarantee constant productivity. It can be frequently upgraded, which can offer the desired functionality during operation. It gains much recognition in overseas markets, including Southeast Asia, Europe, Africa, and America
4. The product has an earthquake-resistant design. Featuring a stable construction, it is designed to be rigid and strong to resist any form of sharp shaking. It proves to be water-proof and dust-proof
| Machine Model | LX3015F(4015/6015/4020/6020/6025/8025/12025 optional) |
| Power of Generator | 2kw/3kw/4kw/6kw/8kw/12kw |
| Dimension | 4800*2600*1860mm |
| Working Area | 1500*3000mm(Other size can be customized ) |
| Repeated Positioning Accuracy | ±0.02mm |
| Max Running Speed | 120m/min |
| Max Acceleration | 1.5G |
| Specified Voltage And Frequency | 380V 50/60HZ |
1 Brand New Cast Aluminum Beam
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
2 The Segmented Rectangle laser Tube Welded Bed
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of metal plate. Stiffeners are arranged inside the plates to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed
3 Intelligent Autofocus
The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
4 Independent Control Cabinet
Dust-proof
•All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat
•The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer
5 Transmission And Precision
LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Japan THK Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years
Company Features
1. We expect no complaints of laser for cutting metal from our customers.
2. Our goal is to improve customer service in a significant way. We will endeavor to localize all the product services by establishing our branch companies for the worldwide channel to guarantee 100% customer satisfaction.
