Global Premium Brand of Laser Equipment , Focus on High Precision Metal Cutting.

Lxshow efficient metal laser cutting machine wholesale for factory 1
Lxshow efficient metal laser cutting machine wholesale for factory 2
Lxshow efficient metal laser cutting machine wholesale for factory 3
Lxshow efficient metal laser cutting machine wholesale for factory 4
Lxshow efficient metal laser cutting machine wholesale for factory 5
Lxshow efficient metal laser cutting machine wholesale for factory 6
Lxshow efficient metal laser cutting machine wholesale for factory 7
Lxshow efficient metal laser cutting machine wholesale for factory 1
Lxshow efficient metal laser cutting machine wholesale for factory 2
Lxshow efficient metal laser cutting machine wholesale for factory 3
Lxshow efficient metal laser cutting machine wholesale for factory 4
Lxshow efficient metal laser cutting machine wholesale for factory 5
Lxshow efficient metal laser cutting machine wholesale for factory 6
Lxshow efficient metal laser cutting machine wholesale for factory 7

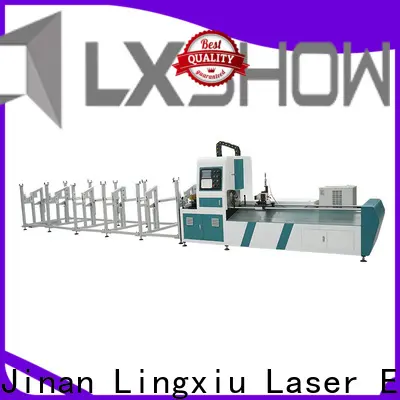

Lxshow efficient metal laser cutting machine wholesale for factory

Warranty:
3 years
Shipping:
By sea/By land
Payment Term:
T/T;Alibaba trade assurance;West Union;Payple;L/C.
Model Number:
TJ
Machine Weight:
1000KG(Only machine main parts)
Machine Size:
1000*2600*1500mm (Only machine main parts)
Lead time:
10-25 working days
Brand:
LXSHOW
Inquiry

product-Cheapest Simple Tube Pipe metal steel Fiber laser cutting machine 1kw 15kw 2kw 3kw 1000w 150


Model

TJ

Laser Power

1000/1500/2000/3000W

Length of laser wave

1070nm±5nm

Type of Laser

Single mode

photoelectric conversion efficiency

30%

Work Mode

Continuous light

Power range

5-95%

Power Unstabilit

2%

Transmission fiber core

25um-50um

Length of Fiber

10m

Cooling way

Water cooling

Water chiller model

1.OP/1.5P/2.0P

Cooling water temperature

20-25℃

Power

AC 220V±10% AC380±10%50/60Hz

 Temperature of work environment

10~35℃

 Humidity of work environment

≤95%




Regarding Laser generator,we use world famous brand IPG,Nlight,Raycus,Max,JPT and so on as your requirements. Fiber laser has photoelectric conversion efficiency high to 30%.We can provide 1000-3000w.The life span of Fiber laser reach 100,000 hours (20-30 years use)

product-Lxshow-img



Automatic Loading Tube System

Automatic Loading Tube System improve work efficiency. The tube diameter range:10-42mm. Length 10-1800mm.Thickness:0.2-3mm.Cutting speed:2500-3500 Pcs/H

product-Lxshow-img


Intelligent Autofocus

The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.

Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.

High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

product-Lxshow-Cheapest Simple Tube Pipe metal steel Fiber laser cutting machine 1kw 15kw 2kw 3kw 10


Most Highly Cost Effecitve

Function Simple with cheap Price,suitable for round pipe cut off .Directly adjust tube length,Request is not high to operators,General workers can finish it.

 product-Lxshow-img


product-Lxshow-img



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
