Lxshow cnc laser cutter directly sale for Cooker

Warranty:
3 years
Shipping:
By sea/By land
Payment Term:
T/T;Alibaba trade assurance;West Union;Payple;L/C.
Model Number:
LX3015FL(4015/6015/4020/6020/6025/8025/12025 optional)
Machine Weight:
10000KG
Machine Size:
(5480+8034)*4850*(2650+300)mm
Lead time:
15-35 working days
Brand:
LXSHOW
Inquiry

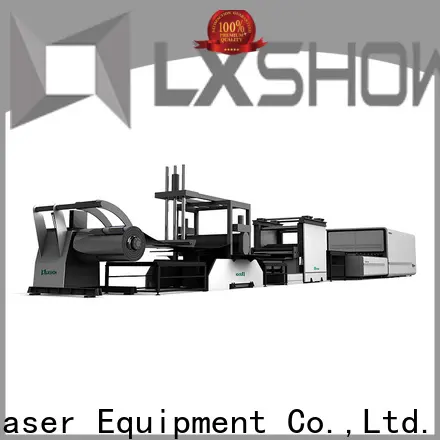

product-LX3015FL Solutions for a whole processing system 3015 enclosed fiber laser cutting cutter ma


Model

LX3015FL(4015/6015/4020/6020/6025/8025/12025 optional)

Working Area

3048mm*1524mm

Laser Power

1kw/1.5kw/2kw/3kw/4kw

X/Y-axis positioning accuracy

0.03mm

X/Y-axis repositioning accuracy

0.02mm

X/Y-axis Max. linkage speed

140m/min

Leveling accuracy

≤1.5mm/

Processing plate thickness

0.8~3mm

Coil size

Coil outer diameter

φ1200φ2000mm

Coil inner diameter

φ508φ610mm

Coil weight

≤20t

Leveling speed

≤20m/min


Solutions for a whole processing system

Coil cutting machine features with integration of automatic uncoiling, leveling, feeding and cutting to ensure the continuity of processing and production, improving processing efficiency. Flow line production and batch processing reduce labor intensity and save manpower. Full enclosure design with compact structure, higher safety and environmental protection during operation; flexible processing and application.

product-Lxshow-img


Processing parts range

Coil outer diameter:Φ1200~Φ2000mm
Coil inner diamete:Φ508、Φ610mm
Dimensions:3000mm*1500mm

Automatic feeding of coil material, continuous cutting and batch
processing improve processing efficiency and reduce labor intensity

product-Lxshow-img


Full protection cover

Full closed protection improves using security; laser protection glass isolates laser radiation to human beings; automatic collection system of smokes and dusts is environment friendly; intelligent monitoring system reduces accident rate, making us enjoy beauty and health in cutting process.

product-Lxshow-img


Uncoiling parts

The uncoiler unwinds the roll material, and the width of the loaded coil material is 600-1250mm; the load is 10000kg.

 product-Lxshow-LX3015FL Solutions for a whole processing system 3015 enclosed fiber laser cutting cu


Leveling parts

leveling feeder leveling the material, adjustment accuracy of correction amount: ±0.01mm.

product-Lxshow-img


Automatic unloading, Intelligent palletizing

Adopt belt conveyor and adjustable width limiting device; the sheet material after processing is automatically transmitted to the unloading mechanism and then palletized by lifting mechanism according to the material width. Finished materials need no manual sorting any more, centralized sorting improves the working efficiency and saves labor cost.

product-LX3015FL Solutions for a whole processing system 3015 enclosed fiber laser cutting cutter ma-1


Cast aluminum crossbeam

After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.

product-Lxshow-img-1


Automatic unloading material

Hobbing type conveying structure,vacuum chuck automatic unloading the unloading the finish product,automatic stacking of finished products,saving labor and improving efficiency.

product-Lxshow-img-1


product-Lxshow-img-1
