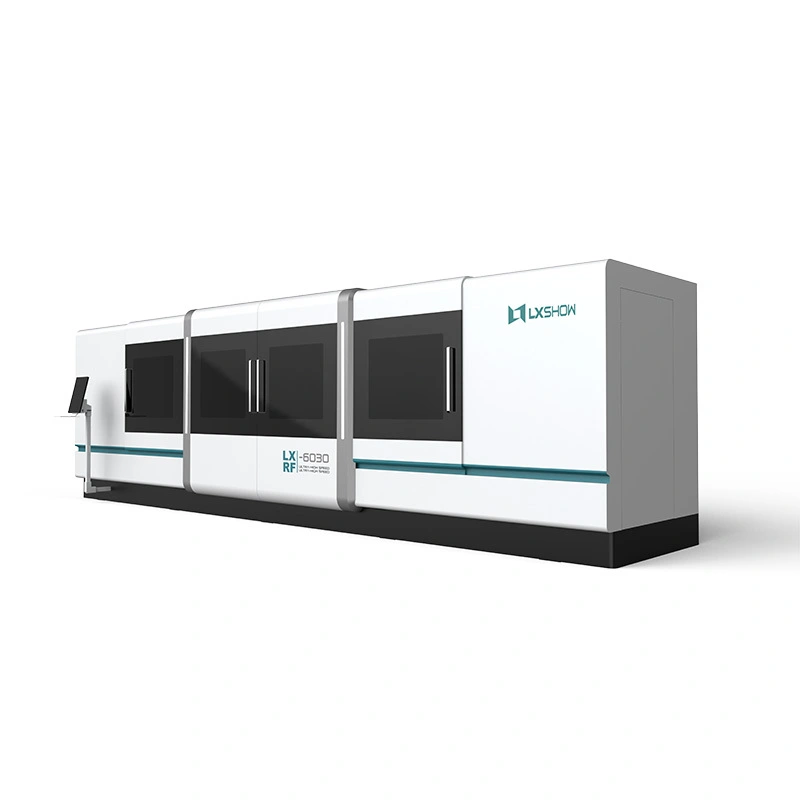

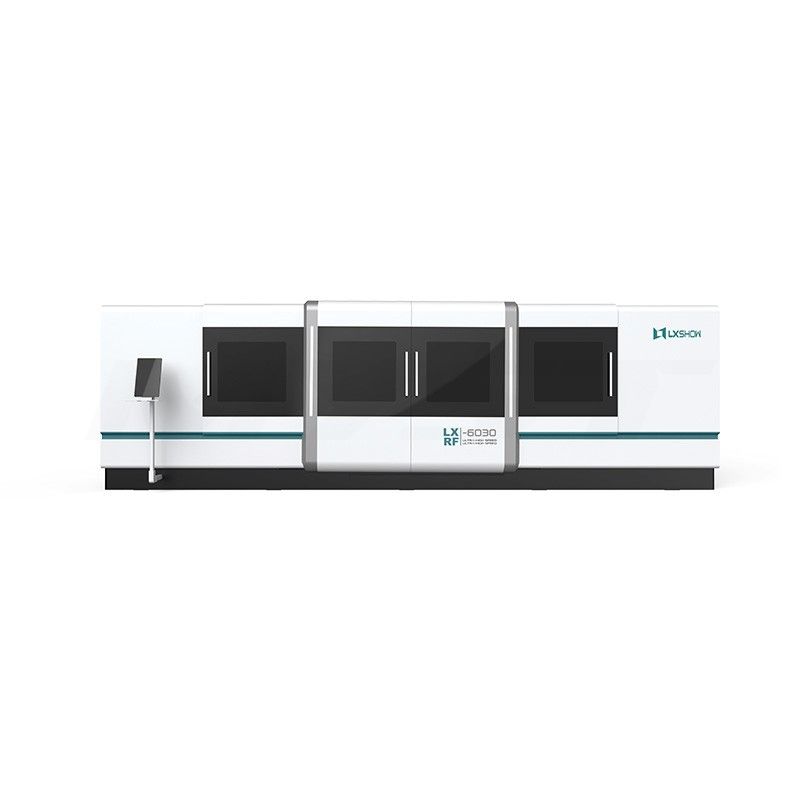

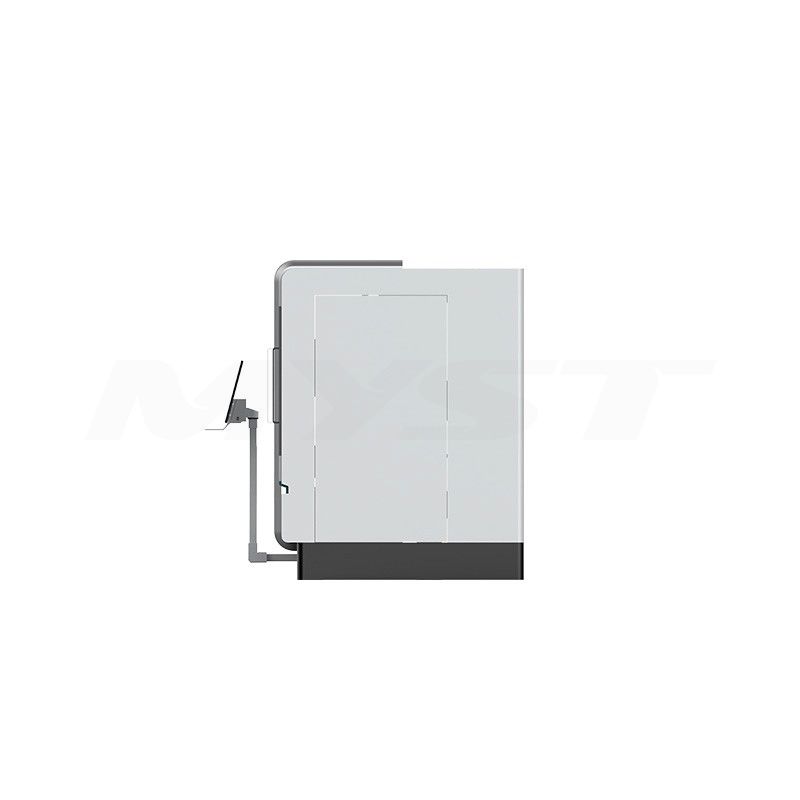

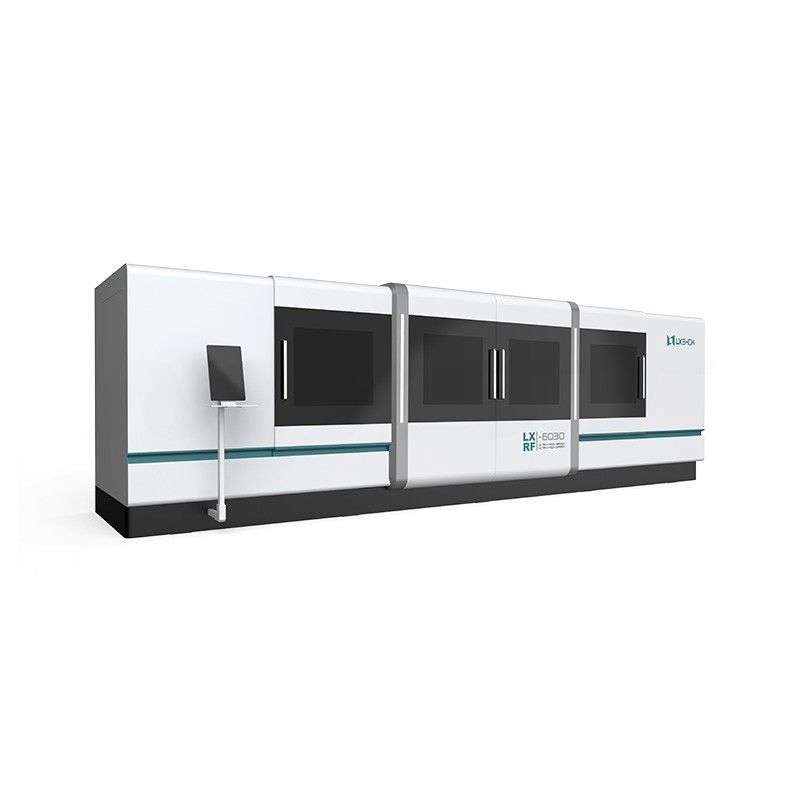

LXRF-6030 Single Axis Full Coverage Laser Cladding Machine

Powder feeding nozzle

• The powder is input by three or four channels, and after internal homogenization treatment, it is output in a ring and converges. The convergence point is relatively large, but more uniform, and is more suitable for laser cladding with a large spot.

Powder feeder

• Double barrel powder feeder: main parameters:
• Powder feeder model: EMP-PF-2-1
• Powder feeding cylinder: dual-cylinder powder feeding, PLC independent controllable
• Control mode: fast switch between debugging and production mode
• Dimensions: 600mmX500mmX1450mm (length, width and height)
• Voltage: 220VAC, 50HZ;
• Power: ≤1kw
• Sendable powder particle size: 20-200μm
• Powder feeding disc speed: 0-20 rpm stepless speed regulation;
• Powder feeding repeat accuracy: <±2%;
• Required gas source: Nitrogen/Argon
• Others: The operation interface can be customized according to requirements;

S&A/Hanli water chiller

• Relative leading product technology(complete laboratory and performance testing means), product specifications and actual performance good consistency.
• With multiple after-sales office in china and abroad, product service is more real-time and reliable.

Raycus laser generator

• Famous laser brand all over the world.
• High electronic-optical conversion efficiency, good beam quality, wide modulation frequency, high reliability, long life and maintenance-free.
• The center wavelength is 1080nm+-5.

Control system

• Controller is designed for all metal materials processing industry launched control system.
• Easy installation, easy adjustment, excellent performance, complete solutions.
