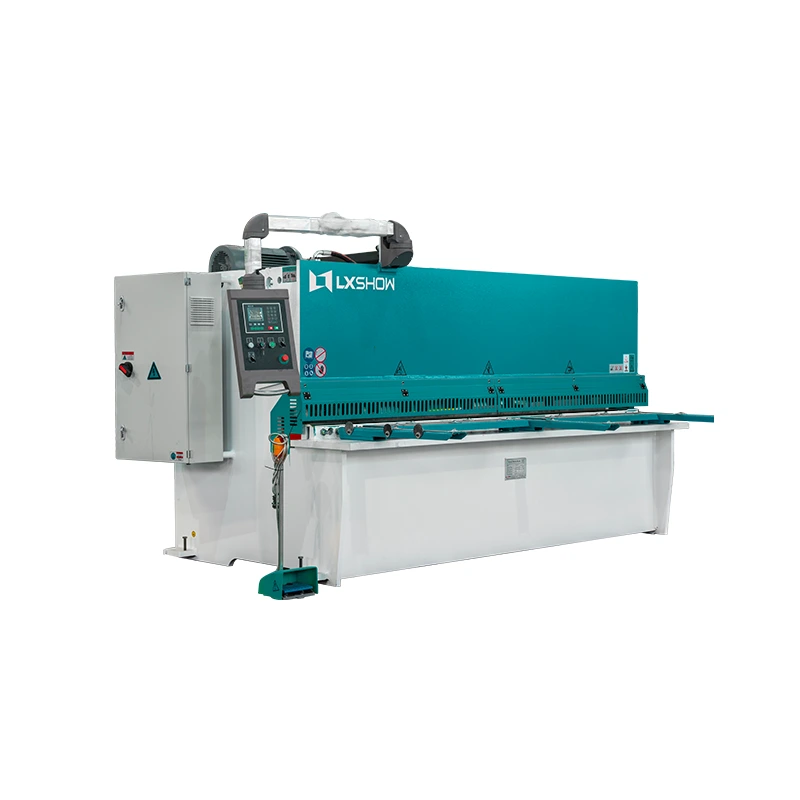

Hydraulic Pendulum Shearing Machine
Controller：MD-11 system
Motor and drive：Servo motor
Blade：Shanghai Jiufeng
hydraulic valve：Haimen Xinli
Cylinder seal：Japan NOK
Hydraulic oil pump：Shanghai Xuanyun
Electrical device：French Schneider
Main motor power：7.5kw
Voltage：220V single phase/380V,3 phase /220V 420 660V, 3 phase option
Motor and drive：Servo motor
Blade：Shanghai Jiufeng
hydraulic valve：Haimen Xinli
Cylinder seal：Japan NOK
Hydraulic oil pump：Shanghai Xuanyun
Electrical device：French Schneider
Main motor power：7.5kw
Voltage：220V single phase/380V,3 phase /220V 420 660V, 3 phase option
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Parameter
|
Machine model |
QC12K-8×3200 |
|
|
Cutting Thickness |
8mm |
|
|
Cutting Length |
3200mm |
|
|
Materail Strength |
σb≤450Mpa |
|
|
Cutting Angel |
1°30′ |
|
|
Stopper Adjust Range |
20-500mm |
|
|
Travel Times |
8 times/min |
|
|
Main motor power |
Power |
7.5KW |
|
Operate system |
Model |
MD-11 System |
|
Overall Dimensions |
L*W*H |
3860*1700*1700mm |
|
Voltage |
220/380/420/660 V |
|
|
The weight of the machine |
5800KG |
|
