Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine

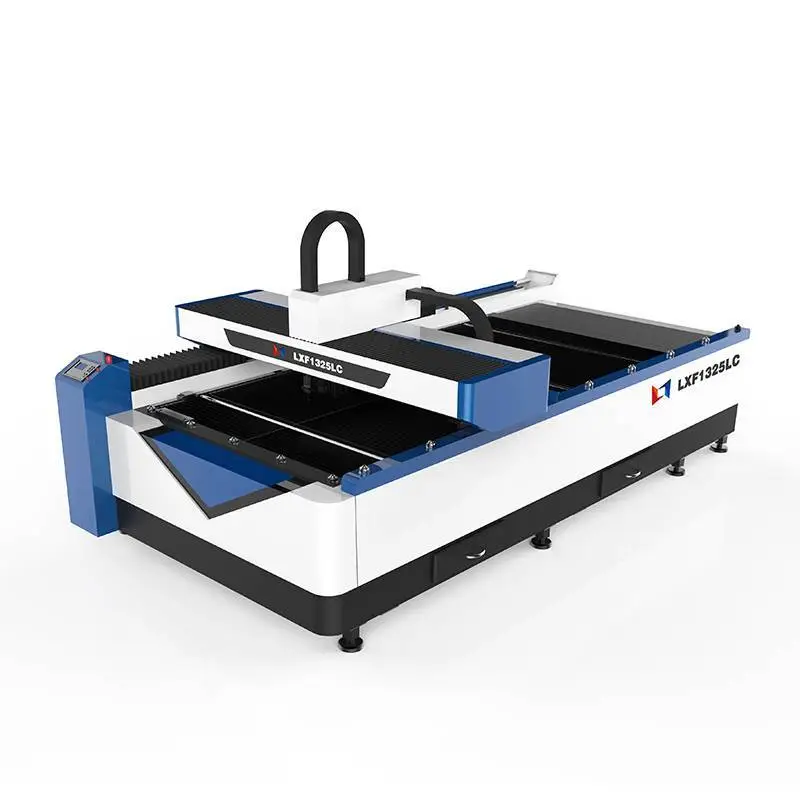

LXF1325LC

Warranty:

3 years

Shipping:

By sea/By air/By land

Payment Term:

T/T;Alibaba trade assurance;West Union;Paypal;L/C

Model Number:

LXF1325LC

Machine Weight:

2200KG

Machine Size:

4160*2190*1980mm

Lead time:

10-15 working days

Brand:

LXSHOW

APPLICATION AND SAMPLES

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 2 MACHINE INDICATE

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 4

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 5 MACHINE PARTS

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 7

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 8

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 9

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 10 APPLICATION AND SAMPLES

APPLICATION

Fiber cutting head (Metal Material):
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Fiber cutting head (Metal Industries):

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

CO2 cutting head (Nonmetal Material):

Wood, Bamboo, jade articale, stone(only can engraving), organic glass, crystal(only can engraving), rubber, plastic, cloth, leather, etc.

CO2 cutting head (Nonmetal Industries):

1.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,seal,etc
2.Woodworking: MDF,wooden mould, wood planks,bamboo, density board
3.Decoration: acrylic, organic glass, double color board, coconut shell, ox horn, ABS board,lamp shade,crafts,crystal,glass,ceramic,stone,metal coating,etc.
4.Clothing: leather,cloth,texitle,shoes,fabric,etc

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 12

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 13

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 14

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 15

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 16 CHARACTURE

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 18

Excellent Path Quality

Smaller laser dot and high work efficiency, high quality.

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 19

High Cutting Speed

Cutting speed is 2-3 times than same power CO2 laser cutting machine.

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 20

Stable Running

Adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours.

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 21

High Efficiency

For photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 22

Low Cost

Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 23

Low Maintenance

Fiber line transmission no need reflect lens, save maintenance cost

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 24

Easy Operations

Fiber line transmission, no adjustment of optical path.

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 25

Fiber Laser Cutting Head And CO2 Laser Cutting Head

It includes fiber laser cutting head and CO2 laser cutting head,it is good choice if your work materials have metal and nonmetal.

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 26 PRODUCT PARAMETER

Machine Name	Fiber laser cutting machine
Model	LXF1325LC
Laser machine cutting area	2500x1300mm
Fiber Laser Power CO2 Laser Power	500w/750w/1000W 60/80/100/130/150/280/300W
Laser wave length	1080nm
Transmission system	Imported ball screw
X.Y axis location accuracy	±0.01mm
X.Y axis repeat location accuracy	±0.01mm
X.Y axis max moving speed	30m/min
Max cutting speed	1--16m/min
Cutting thickness	0.2-3mm stainless steel/0.2-4mm steel
Application Material	Metal sheet Nonmetal:Wood/MDF/Acrylic/Stone and so on.
Advantages	Fiber add CO2 style
Gross weight	2200KG
Net weight	1800KG
Machine size	416021901980mm

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 28 PRODUCT SELECTION

Material	thickness mm	80W	100W	130W	150W
		Speed:mm/s
Acrylic	3	20-25	25-30	30-35	35-40
	5	8-12	10-15	12-17	15-21
	8	5-9	6-10	8-12	10-15
	10	3-6	4-7	5-8	7-11
	15	1.5-3	2-4	3-5	4-7
	20	0.5-1.5	0.7-2	1-3	1.5-4
	25	0.2-0.5	0.3-0.8	0.41	0.8-1.8
	30	/	0.3	0.3-0.5	0.5-0.8
	35	/	/	0.2	0.1-0.4
	40	/	/	/	0.1
MDF	3	15-20	18-23	20-25	25-30
	5	10-13	10-15	15-18	18-21
	10	3.5-5	5-7	6-9	9-12
	15	/	2.5	3-4	5.5-7
	18	/	/	/	4
Plywood	3	18-20	20-25	28-30	33-35
	5	10-15	18-20	22-25	28-30
	10	6-8	10-12	13-15	17-20
	15		5-8	8-11	13-15
Leather	1	25	25-30	35-40	40-45

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Carbon Steel (O₂)	1	7.0~8.0	7.0~9.0	7.0~11.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0
	2	4.0~5.0	5.0~6.0	5.0~6.5	5.0~6.5	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0
	3	2.0~2.5	2.5~3.0	2.8~3.8	3.0~4.6	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0
	4	1.5~2.0	2.0~2.4	2.5~3.2	2.8~4.0	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2
	5	1.2~1.5	1.5~1.8	1.8~2.5	2.2~3.2	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6
	6	1.0~1.4	1.4~1.6	1.6~2.2	2.0~2.8	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0
	8		1.0~1.2	1.1~1.5	1.4~2.0	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4
	10		0.75~0.85	1.0~1.2	1.1~1.4	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8
	12		0.6~0.7	0.9~1.0	0.9~1.2	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5
	16				0.6~0.75	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85
	20					0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75
	22					0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65
	25					0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Stainless Steel (N₂)	1	10~12	15~18	10~15	35~50	45~55	45~55	45~55	45~55	45~55	45~55
	2	2~4.0	4.5~6.0	5.0~7.0	10~15	15~23	18~27	20~35	23~37	26~40	28~43
	3	0.7~2.0	2.0~2.4	3.0~4.0	5.0~7.0	7.0~11.0	10~15	15~20	19~24	23~28	27~32
	4		1.0~1.5	2.0~2.8	3.5~4.5	4.0~6.0	5.0~7.5	10~14	14~17	18~22	22~26
	5		0.75~0.85	1.2~1.7	1.8~2.5	2.5~4.0	4.0~5.0	8.0~12.0	11~14	14~17	16~18
	6			0.7~1.0	0.7~0.8	2.0~3.2	3.0~4.0	6.0~8.0	8.0~9.5	9.5~11.0	10.5~12.0
	8			0.5~0.7	0.5~0.6	1.2~1.8	1.5~2.6	3.5~4.0	5.0~5.5	6.5~7.0	7.5~8.0
	10					0.7~0.9	0.7~1.3	1.8~2.2	2.5~3.0	3.4~3.9	4.0~4.5
	12					0.3~0.4	0.4~0.6	1.2~1.5	1.8~2.1	2.6~3.1	3.3~3.6
	16						0.3~0.5	0.8~1.2	1.5~1.8	2.2~2.5	2.7~3.0
	20						0.3~0.5	0.6~0.8	1.0~1.3	1.7~2.0	2.2~2.5
	22							0.3~0.4	0.6~0.75	1.0~1.2	1.4~1.6
	25								0.3~0.5	0.4~0.6	0.6~0.8

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Aluminum (N₂)	1			10~15	30~45	30~38	35~40	45~55	45~55	45~55	45~55
	2			5.0~6.0	10~15	12~16	13~22	20~30	27~35	33~40	36~43
	3			2.5~3.5	5.0~7.0	6.5~8.0	7.0~13	13~18	15~18	18~22	23~26
	4			1.4~2.0	3.5~5.0	3.5~5.0	4.0~5.5	10~12	12~13.5	15~18	19~22
	5			0.8~1.0	2.0~3.0	2.5~3.5	3.4~4.0	5.0~8.0	9.0~12	14~16	17~19
	6			0.5~0.6	1.5~2.0	1.8~3.0	2.2~3.5	4.0~6.0	7.5~9.5	10~12.5	13~15
	8				0.5~0.6	0.9~1.3	0.9~1.6	2.0~3.0	4.0~4.8	5.8~6.5	6.8~7.2
	10					0.4~0.7	0.55~1.0	1.0~1.9	1.5~2.7	3.0~3.8	3.7~4.2
	12					0.3~0.45	0.4~0.6	0.8~1.4	1.6~1.9	2.4~2.7	3.3~3.6
	16						0.3~0.4	0.6~0.9	1.0~1.2	1.4~1.6	1.7~1.8
	20							0.4~0.6	0.8~0.9	1.0~1.2	1.2~1.6
	22								0.7~0.85	0.9~1.0	1.1~1.2
	25								0.35~0.45	0.6~0.7	0.8~0.9

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Brass (N₂)	1			8.0~12	12~18	20~32	25~30	45~55	45~55	45~55	45~55
	2			3.5~5.0	6.0~8.5	9.0~11	10~13	25~35	27~35	33~40	36~43
	3			1.5~2.2	2.5~4.0	4.0~6.0	5.0~6.5	12~18	15~18	18~22	23~26
	4			1.0~1.2	1.5~1.8	3.0~4.5	3.0~5.2	8.0~10	12~13.5	15~18	19~22
	5			0.6~0.8	0.8~1.2	1.5~2.0	2.0~3.0	4.5~6.0	9.0~12	14~16	17~19
	6				0.4~0.5	1.0~1.6	1.4~2.0	3.0~4.0	7.5~9.5	10~12.5	13~15
	8					0.5~0.6	0.7~0.8	1.6~2.2	4.0~4.8	5.8~6.5	6.8~7.2
	10						0.2~0.3	0.8~1.2	1.5~2.7	3.0~3.8	3.7~4.2
	12								1.6~1.9	2.4~2.7	3.3~3.6

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine 30 COMPANY PROFILE

Jinan Lingxiu Laser

Is established in July 2004 owns more than 500 square meters of researching and office space, more than 32000 square meters factory All machines, passed the European Union CE authentication American FDA cerificate and are certied to ISO 9001. Products are sold to USA, Canada, Australia, Europe. South east Asia, Afica etc, more than 120 counties and areas, and supply OEM service for more than 30 manufactures.

Our Products includes All kind of

1.Fiber laser cutting machine/Laser marking/welding/CO2 laser engraving/cleaning machine. 2.Vibrating knife cutting machine.

We can also customized non-standard assist equipment as your detailed work reauirements.
