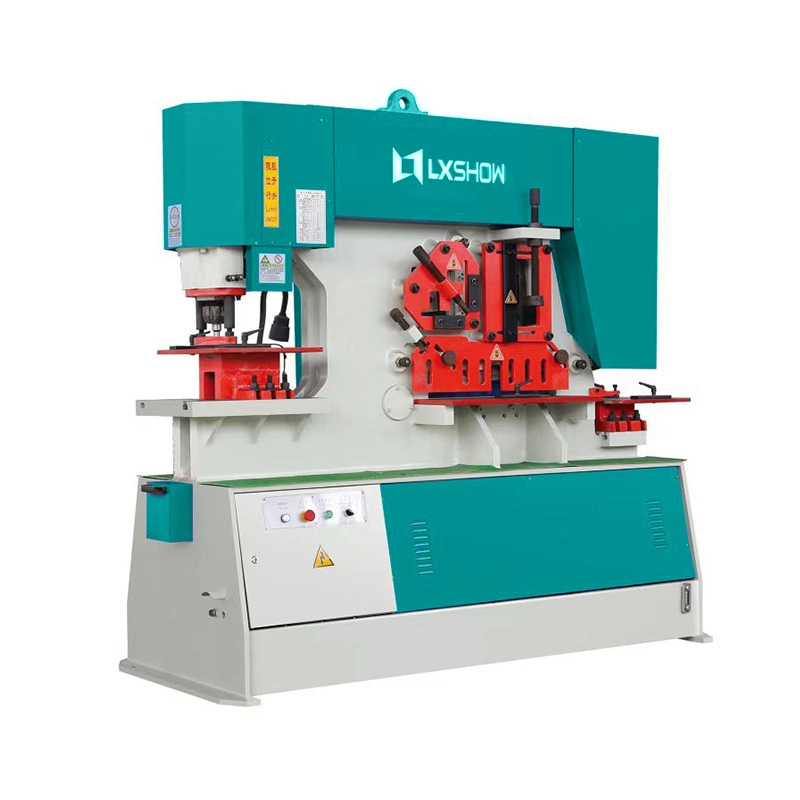

Hybraulic Combined Punching & Shearing Machine can be used for drilling and shearing metal
Hydraulic combined punching and shearing machines are usually equipped with multiple stations, which can perform punching, shearing and other operations simultaneously or independently, and can realize the shearing, punching and other functions of materials such as plates, square steel, round steel, angle steel, channel steel, I-beam, etc. Some models are also equipped with CNC systems to realize automatic control and improve processing accuracy and efficiency.
Product advantages
The working principle of the hydraulic combined punching and shearing machine is to drive the hydraulic pump through the motor to generate high-pressure oil,
and then distribute the oil to different hydraulic cylinders through the control valve. The piston in the hydraulic cylinder produces linear motion under the action of oil pressure,
driving the punch or shear blade to perform punching and shearing actions.
Main Parts
When punching, the punch head of the hydraulic combined punching and shearing machine applies downward pressure to penetrate the metal sheet; when shearing, the blade closes and cuts the sheet. The machine is usually equipped with multiple stations, which can perform punching, shearing and other operations simultaneously or independently, and can achieve the functions of shearing, punching and other functions of materials such as plates, square steel, round steel, angle steel, channel steel, I-beam, etc. Some models are also equipped with CNC systems to achieve automatic control and improve processing accuracy and efficiency. Let's focus on the main components of the combined punching and shearing machine.
Punching station
The punching station of the combined punching and shearing machine is a key component of the equipment, responsible for punching holes of the required shape and size on the metal sheet.
Pressing device
The pressing device of the combined punching and shearing machine is used to fix and press the workpiece during the punching and shearing process to improve the shearing accuracy and operation safety.
Die cutting station
The die shearing station of the combined punching and shearing machine can be designed with various groove punches according to the shape requirements, such as rectangular and V-shaped grooves, for shearing and punching of special shapes.
Main Motor
The pressing device of the combined punching and shearing machine is used to fix and press the workpiece during the punching and shearing process to improve the shearing accuracy and operation safety.
Have A Questions?
If you have any questions about our products or services, feel free to reach out to customer service team. We've got preferential price and best-quality products for you.
Technical Parameters
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-60 |
| Punching Pressure | 60T | 100T | 120T | 160T | 250T | 315T |
| Max.cutting thickness of steel plates(mm) | 16mm | 20mm | 25mm | 30mm | 40mm | 60mm |
| Material strength(N/mm²) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Angle of Shear(°) | 7° | 8° | 8° | 8° | 8° | 8° |
| Flat bar shearing(T*W)(mm) | 16mm*250mm 8mm*400mm | 20mm*330mm 10mm*480mm | 25mm*330mm 16mm*600mm | 30mm*335mm 20mm*600mm | 40mm*330mm 20mm*700mm | 50mm*300mm 30mm*750mm |
| Max.length of cylinder stroke(mm) | 80mm | 80mm | 80mm | 80mm | 100mm | 100mm |
| Trips frequency (times/min) | 11-20 | 11-20 | 8-18 | 6-16 | 6-16 | 6-12 |
| Depth of throat(mm) | 300mm | 355mm | 400mm | 600mm | 600mm | 600mm |
| Punch depth(mm) | 16mm | 20mm | 25mm | 28mm | 35mm | 40mm |
| Max.punching diameter(mm) | 28mm | 33mm | 35mm | 38mm | 40mm | 45mm |
| Motor Power(KW) | 5.5KW | 7.5KW | 11KW | 11KW | 15KW | 30KW |
| Overall dimensions(L*W*H)(mm) | 1780*920*1780 | 1950*920*1950 | 2355*1000*2150 | 2840*1200*2330 | 2940*1200*2330 | 3200*1440*2500 |
Product application
Combined punching and shearing machines are widely used in:
1. Steel structure processing
2. Elevator car and parts processing
3. Trailer: spare tire parts, trailer hinges, plate hooks, plugs, and tile boards
4. Engineering machinery industry: belt conveyors, mixing station processing
5. Agricultural and animal husbandry machinery industry: thresher frame, trailer bucket parts processing
6. Food industry machinery: slaughter equipment frame and parts processing
7. High and low voltage tower parts processing
8. Wind power generation equipment: parts processing of stairs and pedals on wind power towers
9. Mechanical processing: building embedded parts/conveyor brackets and other parts processing that play a connecting role
10. Grain machinery: grain and oil equipment starch equipment brackets, shells, small parts processing
