MACHINE INDICATE
MACHINE PARTS
APPLICATION AND SAMPLES
APPLICATION
Fiber cutting head (Metal Material):
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Fiber cutting head (Metal Industries):
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
CO2 cutting head (Nonmetal Material):
Wood, Bamboo, jade articale, stone(only can engraving), organic glass, crystal(only can engraving), rubber, plastic, cloth, leather, etc.
CO2 cutting head (Nonmetal Industries):
1.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,seal,etc
2.Woodworking: MDF,wooden mould, wood planks,bamboo, density board
3.Decoration: acrylic, organic glass, double color board, coconut shell, ox horn, ABS board,lamp shade,crafts,crystal,glass,ceramic,stone,metal coating,etc.
4.Clothing: leather,cloth,texitle,shoes,fabric,etc
CHARACTURE
PRODUCT PARAMETER

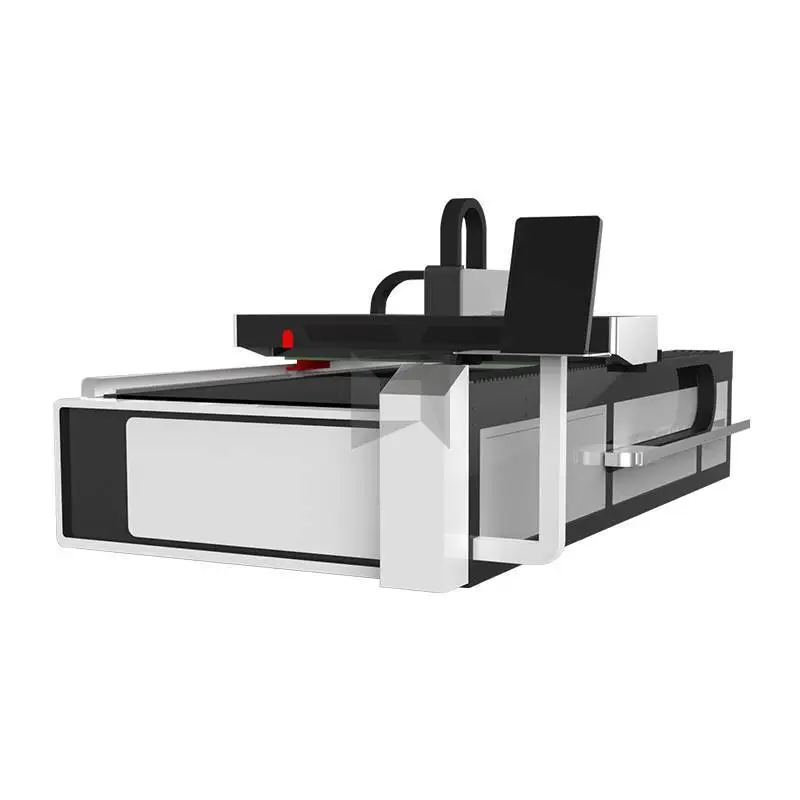

Machine Name | Fiber laser cutting machine |
Model | LXF1325LC |
Laser machine cutting area | 2500x1300mm |
Fiber Laser Power CO2 Laser Power | 500w/750w/1000W 60/80/100/130/150/280/300W |
Laser wave length | 1080nm |
Transmission system | Imported ball screw |
X.Y axis location accuracy | ±0.01mm |
X.Y axis repeat location accuracy | ±0.01mm |
X.Y axis max moving speed | 30m/min |
Max cutting speed | 1--16m/min |
Cutting thickness | Max Metal thickness: Stainless steel:0.2-3mm Carbon steel:0.2-12mm Nonmetal thickness: Acrylic:40mm Plywood:15mm MDF:18mm (According to detailed Power,attached cutting list following) |
Application Material | Fiber:Metal sheet CO2:Nonmetal:Wood/MDF/Acrylic/Stone and so on. |
Advantages | Fiber add CO2 style |
Gross weight | 2200KG |
Net weight | 1800KG (According to detailed configuration) |
Machine size | 4160*2190*1980mm (According to detailed configuration) |
PRODUCT SELECTION
Material | thickness mm | 80W | 100W | 130W | 150W | ||||
Speed:mm/s | |||||||||
Acrylic | 3 | 20-25 | 25-30 | 30-35 | 35-40 | ||||
5 | 8-12 | 10-15 | 12-17 | 15-21 | |||||
8 | 5-9 | 6-10 | 8-12 | 10-15 | |||||
10 | 3-6 | 4-7 | 5-8 | 7-11 | |||||
15 | 1.5-3 | 2-4 | 3-5 | 4-7 | |||||
20 | 0.5-1.5 | 0.7-2 | 1-3 | 1.5-4 | |||||
25 | 0.2-0.5 | 0.3-0.8 | 0.41 | 0.8-1.8 | |||||
30 | / | 0.3 | 0.3-0.5 | 0.5-0.8 | |||||
35 | / | / | 0.2 | 0.1-0.4 | |||||
40 | / | / | / | 0.1 | |||||
MDF | 3 | 15-20 | 18-23 | 20-25 | 25-30 | ||||
5 | 10-13 | 10-15 | 15-18 | 18-21 | |||||
10 | 3.5-5 | 5-7 | 6-9 | 9-12 | |||||
15 | / | 2.5 | 3-4 | 5.5-7 | |||||
18 | / | / | / | 4 | |||||
Plywood | 3 | 18-20 | 20-25 | 28-30 | 33-35 | ||||
5 | 10-15 | 18-20 | 22-25 | 28-30 | |||||
10 | 6-8 | 10-12 | 13-15 | 17-20 | |||||
15 | 5-8 | 8-11 | 13-15 | ||||||
Leather | 1 | 25 | 25-30 | 35-40 | 40-45 |
Material | Thickness (mm) | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Carbon Steel (O2) | 1 | 7.0~8.0 | 7.0~9.0 | 7.0~11.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 | 7.0~12.0 |
2 | 4.0~5.0 | 5.0~6.0 | 5.0~6.5 | 5.0~6.5 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | 5.0~7.0 | |
3 | 2.0~2.5 | 2.5~3.0 | 2.8~3.8 | 3.0~4.6 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | 3.5~5.0 | |
4 | 1.5~2.0 | 2.0~2.4 | 2.5~3.2 | 2.8~4.0 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | 3.0~4.2 | |
5 | 1.2~1.5 | 1.5~1.8 | 1.8~2.5 | 2.2~3.2 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | 2.5~3.6 | |
6 | 1.0~1.4 | 1.4~1.6 | 1.6~2.2 | 2.0~2.8 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | 2.4~3.0 | |
8 | 1.0~1.2 | 1.1~1.5 | 1.4~2.0 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | 1.8~2.4 | ||
10 | 0.75~0.85 | 1.0~1.2 | 1.1~1.4 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | 1.2~1.8 | ||
12 | 0.6~0.7 | 0.9~1.0 | 0.9~1.2 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | 1.0~1.5 | ||
16 | 0.6~0.75 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | ||||
20 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | 0.6~0.75 | |||||
22 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | 0.5~0.65 | |||||
25 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 |
Material | Thickness (mm) | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Stainless Steel (N2) | 1 | 10~12 | 15~18 | 10~15 | 35~50 | 45~55 | 45~55 | 45~55 | 45~55 | 45~55 | 45~55 |
2 | 2~4.0 | 4.5~6.0 | 5.0~7.0 | 10~15 | 15~23 | 18~27 | 20~35 | 23~37 | 26~40 | 28~43 | |
3 | 0.7~2.0 | 2.0~2.4 | 3.0~4.0 | 5.0~7.0 | 7.0~11.0 | 10~15 | 15~20 | 19~24 | 23~28 | 27~32 | |
4 | 1.0~1.5 | 2.0~2.8 | 3.5~4.5 | 4.0~6.0 | 5.0~7.5 | 10~14 | 14~17 | 18~22 | 22~26 | ||
5 | 0.75~0.85 | 1.2~1.7 | 1.8~2.5 | 2.5~4.0 | 4.0~5.0 | 8.0~12.0 | 11~14 | 14~17 | 16~18 | ||
6 | 0.7~1.0 | 0.7~0.8 | 2.0~3.2 | 3.0~4.0 | 6.0~8.0 | 8.0~9.5 | 9.5~11.0 | 10.5~12.0 | |||
8 | 0.5~0.7 | 0.5~0.6 | 1.2~1.8 | 1.5~2.6 | 3.5~4.0 | 5.0~5.5 | 6.5~7.0 | 7.5~8.0 | |||
10 | 0.7~0.9 | 0.7~1.3 | 1.8~2.2 | 2.5~3.0 | 3.4~3.9 | 4.0~4.5 | |||||
12 | 0.3~0.4 | 0.4~0.6 | 1.2~1.5 | 1.8~2.1 | 2.6~3.1 | 3.3~3.6 | |||||
16 | 0.3~0.5 | 0.8~1.2 | 1.5~1.8 | 2.2~2.5 | 2.7~3.0 | ||||||
20 | 0.3~0.5 | 0.6~0.8 | 1.0~1.3 | 1.7~2.0 | 2.2~2.5 | ||||||
22 | 0.3~0.4 | 0.6~0.75 | 1.0~1.2 | 1.4~1.6 | |||||||
25 | 0.3~0.5 | 0.4~0.6 | 0.6~0.8 |
Material | Thickness (mm) | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Aluminum (N2) | 1 | 10~15 | 30~45 | 30~38 | 35~40 | 45~55 | 45~55 | 45~55 | 45~55 | ||
2 | 5.0~6.0 | 10~15 | 12~16 | 13~22 | 20~30 | 27~35 | 33~40 | 36~43 | |||
3 | 2.5~3.5 | 5.0~7.0 | 6.5~8.0 | 7.0~13 | 13~18 | 15~18 | 18~22 | 23~26 | |||
4 | 1.4~2.0 | 3.5~5.0 | 3.5~5.0 | 4.0~5.5 | 10~12 | 12~13.5 | 15~18 | 19~22 | |||
5 | 0.8~1.0 | 2.0~3.0 | 2.5~3.5 | 3.4~4.0 | 5.0~8.0 | 9.0~12 | 14~16 | 17~19 | |||
6 | 0.5~0.6 | 1.5~2.0 | 1.8~3.0 | 2.2~3.5 | 4.0~6.0 | 7.5~9.5 | 10~12.5 | 13~15 | |||
8 | 0.5~0.6 | 0.9~1.3 | 0.9~1.6 | 2.0~3.0 | 4.0~4.8 | 5.8~6.5 | 6.8~7.2 | ||||
10 | 0.4~0.7 | 0.55~1.0 | 1.0~1.9 | 1.5~2.7 | 3.0~3.8 | 3.7~4.2 | |||||
12 | 0.3~0.45 | 0.4~0.6 | 0.8~1.4 | 1.6~1.9 | 2.4~2.7 | 3.3~3.6 | |||||
16 | 0.3~0.4 | 0.6~0.9 | 1.0~1.2 | 1.4~1.6 | 1.7~1.8 | ||||||
20 | 0.4~0.6 | 0.8~0.9 | 1.0~1.2 | 1.2~1.6 | |||||||
22 | 0.7~0.85 | 0.9~1.0 | 1.1~1.2 | ||||||||
25 | 0.35~0.45 | 0.6~0.7 | 0.8~0.9 |
Material | Thickness (mm) | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W | 12000W |
Cutting Speed(m/min) | |||||||||||
Brass (N2) | 1 | 8.0~12 | 12~18 | 20~32 | 25~30 | 45~55 | 45~55 | 45~55 | 45~55 | ||
2 | 3.5~5.0 | 6.0~8.5 | 9.0~11 | 10~13 | 25~35 | 27~35 | 33~40 | 36~43 | |||
3 | 1.5~2.2 | 2.5~4.0 | 4.0~6.0 | 5.0~6.5 | 12~18 | 15~18 | 18~22 | 23~26 | |||
4 | 1.0~1.2 | 1.5~1.8 | 3.0~4.5 | 3.0~5.2 | 8.0~10 | 12~13.5 | 15~18 | 19~22 | |||
5 | 0.6~0.8 | 0.8~1.2 | 1.5~2.0 | 2.0~3.0 | 4.5~6.0 | 9.0~12 | 14~16 | 17~19 | |||
6 | 0.4~0.5 | 1.0~1.6 | 1.4~2.0 | 3.0~4.0 | 7.5~9.5 | 10~12.5 | 13~15 | ||||
8 | 0.5~0.6 | 0.7~0.8 | 1.6~2.2 | 4.0~4.8 | 5.8~6.5 | 6.8~7.2 | |||||
10 | 0.2~0.3 | 0.8~1.2 | 1.5~2.7 | 3.0~3.8 | 3.7~4.2 | ||||||
12 | 1.6~1.9 | 2.4~2.7 | 3.3~3.6 |
COMPANY PROFILE
Jinan Lingxiu Laser
Is established in July 2004 owns more than 500 square meters of researching and office space, more than 32000 square meters factory All machines, passed the European Union CE authentication American FDA cerificate and are certied to ISO 9001. Products are sold to USA, Canada, Australia, Europe. South east Asia, Afica etc, more than 120 counties and areas, and supply OEM service for more than 30 manufactures.
Our Products includes All kind of
1.Fiber laser cutting machine/Laser marking/welding/CO2 laser engraving/cleaning machine. 2.Vibrating knife cutting machine.
We can also customized non-standard assist equipment as your detailed work reauirements.
