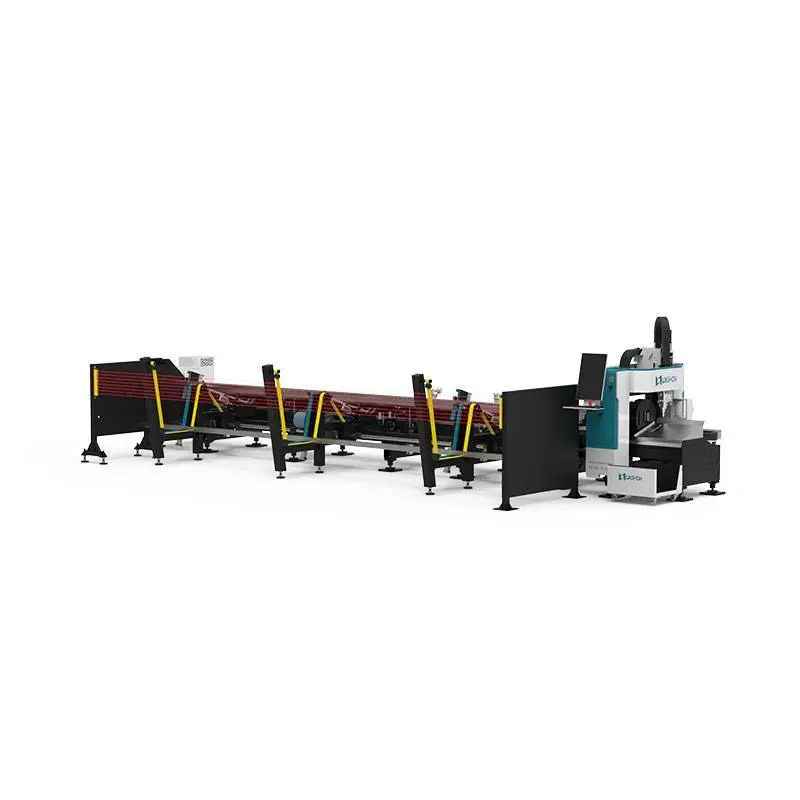

Factory Price LX612TNB Fully-automatic Feeding Faser Tube Cutting Machine Supplier-LXSHOW

The bed adopts a side-hanging structure and a one-piece welded bed, which is annealed to eliminate internal stress. After rough machining, vibration aging is performed before finishing machining, thereby greatly improving the rigidity and stability of the machine tool and ensuring the accuracy of the machine tool. The AC servo motor drive is controlled by the numerical control system, and the chuck realizes reciprocating motion in the Y direction after the motor drives, realizing rapid movement and feeding motion. Both the Y-axis rack and linear guide rail are made of high-precision products, which effectively guarantee the accuracy of the transmission; the limit switches at both ends of the stroke are controlled, and a hard limit device is installed at the same time, which effectively ensures the safety of the machine tool movement; the machine tool is equipped with The automatic lubricating device adds lubricating oil to the moving parts of the bed at regular intervals to ensure that the moving parts run in good condition, which can improve the service life of guide rails, gears and racks.

LX612TNB series pipe cutting machine adopts the chuck moving avoidance method, which can always use two chucks for cutting, and the cutting tail is shorter, and the tail length is ≤50mm; at the same time, it ensures the stability of the cutting process and the consistency of the cutting quality.

The cutting range is wider, the chuck diameter is 10-120mm, which is specially used for cutting thin metal pipes. It can cut thin pipes that ordinary pipe cutting machines cannot reach.

With the fully automatic loading rack, the first loading time is ≤15s, and the subsequent loading time is ≤8s; it improves work safety, reduces the risk of injury, reduces workers' workload and improves work efficiency.
