Global Premium Brand of Laser Equipment , Focus on High Precision Metal Cutting.

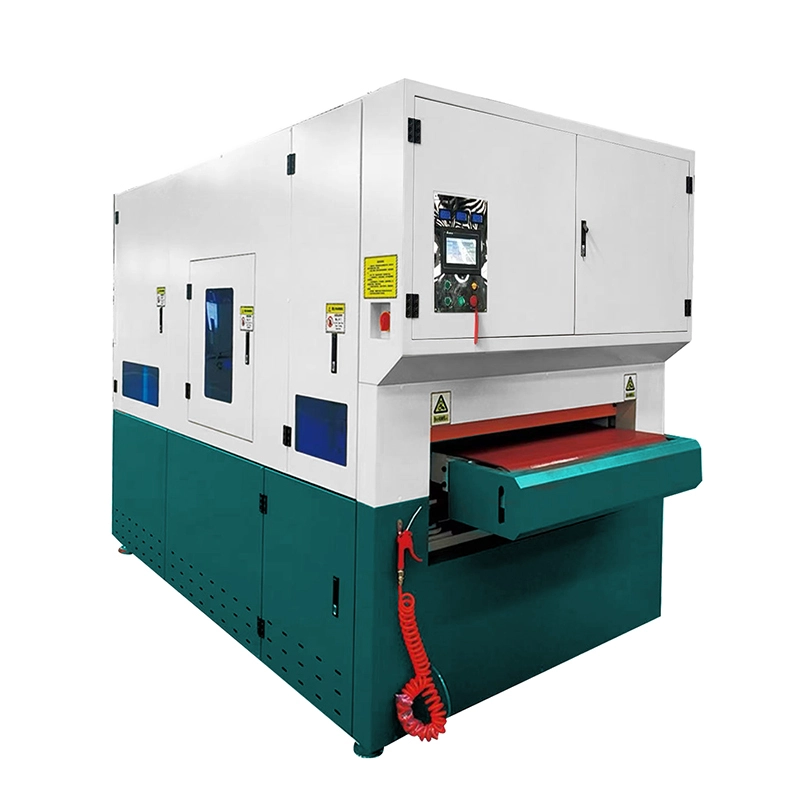

Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 1
Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 2
Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 1
Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 2

Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW

· The new deburring machine has a chamfering function, making the surface of the parts smoother. · Improve the appearance: Chamfering can make the product look more beautiful, reduce sharp edges and corners, and improve the overall appearance of the product. · Vacuum adsorption: Vacuum adsorption table, suitable for small metal processing such as stainless steel.
  • Brand:LXSHOW
  • Model:LX-RR-A 800 Series
  • Warranty period: 3 years
  • Delivery time:20-30 days
  • Supported languages: all languages
  • Transportation method: By sea/ By land
  • Payment Term:T/T;Alibaba trade assurance;WestUnion;Paypal;L/C
  • Packing Size:Standard Crate for export
  • Price:$9000

    oops...!

    no product data.

    Go to homepage

    LXSHOW Deburring Machine LX-RR-A Series Vacuum Adsorption Table

    • Remove burrs‌:Chamfering can remove burrs on parts caused by machining, making the surface of parts smoother.
    • ‌Easy to assemble‌: Chamfering can make parts easier to insert and fix, especially during assembly, chamfering can reduce friction and resistance.
    • ‌Improve appearance‌:Chamfering can make the appearance of the product more beautiful, reduce sharp edges and corners, and improve the overall aesthetics of the product.
    • ‌Improve durability‌:In machining, chamfering can prevent scratches and wear and improve the durability of parts.
    • ‌Enhance safety‌: In architectural design, chamfering can reduce collision damage and improve safety.

    Related Parameters

    LX-RR-A Series 800RR-A
    Maximum processing width 800mm
    Processing thickness 0.8-80mm
    Feeding speed (frequency conversion) 1-5m/min
    Roller diameter (eccentricity) 165mm
    Total power of machine motor 24KW+15KW (vacuum pump)
    Working air pressure ≥0.55Mpa
    Dimensions 3300*1600*2300mm
    Weight 2900kg
    Platform Marble
    Control panel PLC
    Default voltage 3 items 380v
    Contro Panel

    Control Panel

    ♦ The touch screen adopts Delta PLC control system panel.With simple and clear set reset control buttons,complete functions.Sample clear and easy operation

    Universal Roller Brush

    ♦ By alternately rotating and spinning the roller brush, the sand belt roller brush can grind the workpiece without dead corners, thereby achieving deburring and fillet machining

    Unversal Roller Brush
    A-Convey Belt

    Convey Belt

    ♦The conveyor belt supports two types of conveying and feeding strong permanent magnet adsorption and vacuum negative pressure adsorption

    Cunvey Motor

    ♦ The speed of  the sanding machine can be aclusteg according to the beeds of processing the board,marking the sanding effect better.

    Convey motor
    Double sand belts

    Double sand Belts

    ♦The equipment is equipped with two sets of wide sanding belt mechanisms,which rotate at high speed to remove burrs,oxide scales,polishing,etc.On the surface the workpiece.

    Product Application

    In machining, deburring and chamfering are usually performed simultaneously. This combination of processes not only reduces the difficulty during assembly, but also improves the overall quality of the product. For example, in metal machining, due to the complex and varied shapes of parts, there are many challenges in the chamfering and deburring process, which requires professional tools and technical support.

    Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 8
    Electronics Industry
    Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 9
    Hardware industry
    Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 10
    Automotive Manufacturing
    Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 11
    Aerospace Industry
    Construction Machinery Industry
    Construction Machinery Industry
    Fitness Equipment Industry
    Fitness Equipment Industry
    Handicraft industry
    Handicraft industry
    Shipbuilding Industry
    Shipbuilding Industry
    Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 16
    01. Fully automatic computer control
    PLC fully automatic computer control system, digital precise input, simple operation.
    Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 17
    02. High stability, complete retention of oxide layer
    The equipment itself is heavy, the thickness of the fuselage frame can reach 5mm, it is strong and durable, and has good stability; while efficiently removing burrs, it retains the oxide layer of the workpiece.

    advantages

    Deburring-Machine (3)
    Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 19
    03. Low cost of use
    Low cost of use, the only common consumables of the equipment are abrasive belts; instead of manual grinding, it improves work efficiency and saves labor costs.
    Deburring Machine LX-RR-A 800 Series Vacuum Adsorption Table | LXSHOW 20
    04. Full functions, core patented technology
    Full functions, intelligent input system can meet the needs of different customers, and can retain the oxide layer. It can also be polished, with the core patented technology of automatic deviation correction of abrasive belts
    LX-RR-M-series-1270-6
    LX-RR-M-series-1270-7
