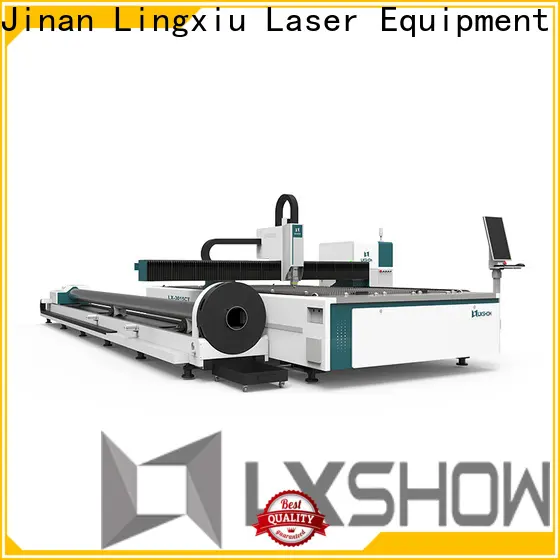

controllable metal laser cutting series for Carbon Steel for Alloy Steel Plate
1. Lxshow cnc cutting machine , containing sole, insole, outsole, midsole, heel, and upper, is manufactured by a variety of specialized CNC and laser machines. The focused laser beam is capable of accurately evaporating objects or dirt from the processed item
2. Lxshow is able to offer metal laser cutting for customers. Adopting integrated design, the product is notable for long-term stability
3. The product features great hardness. It can withstand a certain amount of impacts and shocks without generating cracks on the surface. Its high-rigidity chassis can better reduce the vibration generated during the high-speed process
4. The product will not cause health problems like allergic reactions and skin irritation. It has undergone the high-temperature disinfection to be free of microorganism. The product requires simple maintenance and cleaning
| Machine Model | LX1530CT(2513/4015/4020 optional) |
| Power of Generator | 1kw/1.5kw/2kw |
| Dimension | 4570*8450*1990mm(About) |
| Working Area | 1500*3000mm(Other size can be customized) |
| Repeated Positioning Accuracy | ±0.02mm |
| Max Running Speed | 120m/min |
| Max Acceleration | 1.5G |
| Specified Voltage And Frequency | 380V 50/60HZ |
Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
Steel Plate Weld Machine Frame
It is welded by heavy steel plate, the current mainstream bed structure, high stability;
Effect force annealing treatment, high mechanical strength, not easy to deform;
Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;
The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.
Transmission And Precision
LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.
Rotary Length:6m standard,8m and other size can be customized.
Rotary Diameter:160/220mm is standard. Other size can be customized.
Chuck:Both pneumatic control
Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
Pneumatic Chuck Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting
Suitable Power:1000-3000w(4000w optional)
Brand:IPG/Raycus/MAX/JPT/Nlight
Intelligent Autofocus
The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Independent Control Cabinet
Dust-proof
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat
The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.
Company Features
1. Jinan Lingxiu Laser Equipment Co.,Ltd. is the main producers at home and abroad for metal laser cutting . Our company has set up a sales team. As skilled problem solvers, the salesmen in this team can interact well with diverse populations and business partners.
2. We have a highly efficient factory. State-of-the-art machines and robust production processes assure the seamless delivery of finished products that our customers can confidently launch.
3. So far, our business scope has expanded to various countries. They are the Middle East, Japan, the USA, Canada, and so on. With such a wide marketing channel, our sales volumes have rocketed in recent years. Our goal in operating the business is to invest in improving production efficiency. We are constantly refining and looking for ways to improve our production processes and update our equipment to achieve this goal.
